LOCINOX Stainless steel mortise lock for sliding gates, 40 mm backset, 57 mm mortise depth, 92 mm spacing, SIXTYLOCK-S
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€87.80 including VAT
| Weight |
|---|
| 0,52 kg |
Description of LOCINOX Stainless steel mortise lock for sliding gates, 40 mm backset, 57 mm mortise depth, 92 mm spacing, SIXTYLOCK-S
Mortise lock for sliding gates with a stainless steel mechanism and a rotating head Twistfinger, 33 mm high. It is designed for the SFKS mortise strike plate, which catches the rotating head when the gate is closed.
The lock is suitable for profiles with a depth of at least 60 mm. A 40 mm backset is the distance from the faceplate to the axis of the cylinder and handle. The lock's insertion depth into the profile is 57 mm and the distance between the axes of the handle and cylinder is 92 mm.
The handing is adjustable for left- and right-hand sliding gates. The faceplate protects the mechanism from dirt and small metal particles.
Installation in the prepared cut-out UNIWING is made easier by the Click-It system (see manual). The lock is suitable for steel, aluminium, wooden and PVC gates. Prepare the cut-out and fixing points according to the installation instructions.
The lock is designed for a euro-profile cylinder and a handle with an 8 × 8 mm spindle. The handle and cylinder are sold separately. Choose the cylinder length according to the depth of the gate profile and the hardware used. Choose the strike plate to suit the type of turnable latch.

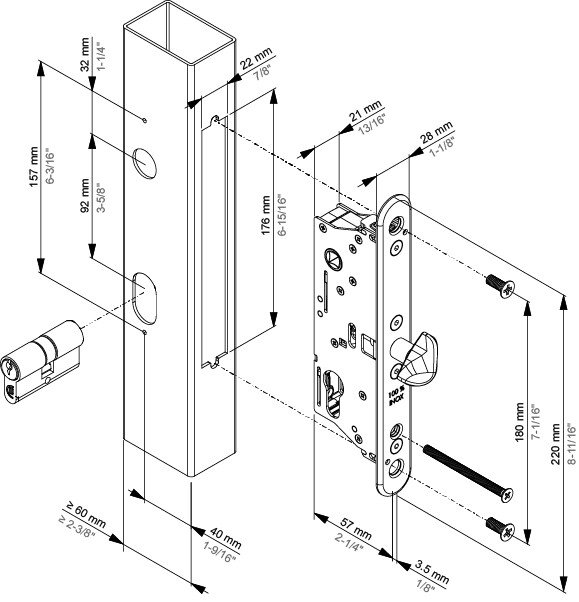

Installation drawing:
Approximate shipping weight: 0.52 kg.
