LOCINOX Stainless Steel Mortise Lock for Sliding Gates, 30 mm Backset, 47 mm Case Depth, 92 mm Centres, FIFTYLOCK-S
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€81.95 including VAT
| Weight |
|---|
| 0,52 kg |
Description of LOCINOX Stainless Steel Mortise Lock for Sliding Gates, 30 mm Backset, 47 mm Case Depth, 92 mm Centres, FIFTYLOCK-S
Mortise lock for sliding gates with a stainless steel mechanism and a rotating head Twistfinger, 33 mm high. It is designed for the SFKS mortise strike, which catches the rotating head when the gate is closed.
The lock is suitable for profiles with a minimum depth of 50 mm. A 30 mm backset is the distance from the faceplate to the axis of the cylinder and handle. The lock's insertion depth into the profile is 47 mm and the distance between the axes of the handle and cylinder is 92 mm.
The lock is adjustable for both left- and right-hand sliding gates. The faceplate protects the mechanism from dirt and small metal particles.
Installation in the prepared cut-out UNIWING is made easier by the Click-It system (see manual). The lock is suitable for steel, aluminium, wooden and PVC gates. Prepare the cut-out and fasten the lock according to the installation instructions.
The lock is designed for a Euro-profile cylinder and a handle with an 8 × 8 mm square spindle. The handle and cylinder must be ordered separately. Choose the cylinder length according to the gate profile depth and the hardware used. Choose the strike plate to match the design of the rotating head.

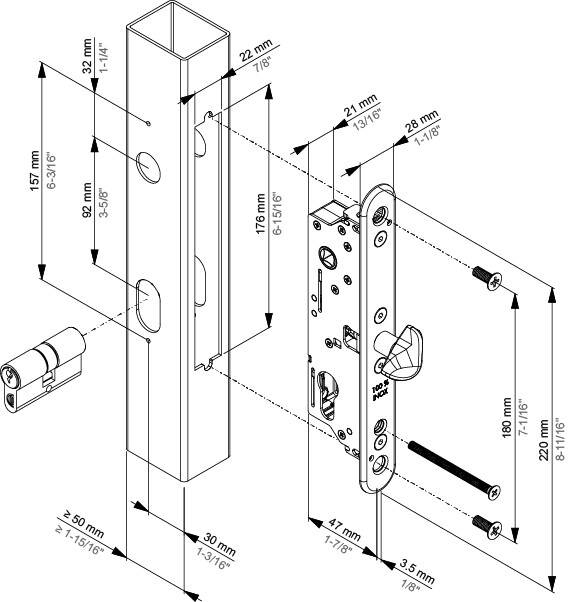

Installation drawing:
Approximate shipping weight: 0.52 kg.
