LOCINOX Stainless Steel Mortice Lock for Sliding Gates, 30 mm Backset, 47 mm Mortice, 92 mm Centres, FIFTYLOCK-LS
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€93.65 including VAT
| Weight |
|---|
| 0,52 kg |
Description of LOCINOX Stainless Steel Mortice Lock for Sliding Gates, 30 mm Backset, 47 mm Mortice, 92 mm Centres, FIFTYLOCK-LS
Mortise lock for sliding gates with a stainless steel mechanism and a rotating head Twistfinger, 45 mm high. It is designed for the SSKZ QF stainless steel surface-mounted stop, which catches the rotating head when the gate closes.
The lock is suitable for profiles with a depth of at least 50 mm. The 30 mm backset is the distance from the front face of the lock to the centreline of the cylinder and handle. The lock's insertion depth into the profile is 47 mm and the distance between the centreline of the handle and the cylinder is 92 mm.
The lock can be configured for both left- and right-hand sliding gates. The faceplate protects the mechanism from dirt and small metal particles.
Installation in the prepared cut-out UNIWING is made easier by the Click-It system (see manual). The lock is suitable for steel, aluminium, wooden and PVC gates. Prepare the cut-out and fixings according to the installation instructions.
The lock is designed for a Euro-profile cylinder and a handle with an 8 × 8 mm spindle. The handle and cylinder are ordered separately. Choose the cylinder length according to the depth of the gate profile and the hardware used. Choose the strike plate to match the type of rotating head.

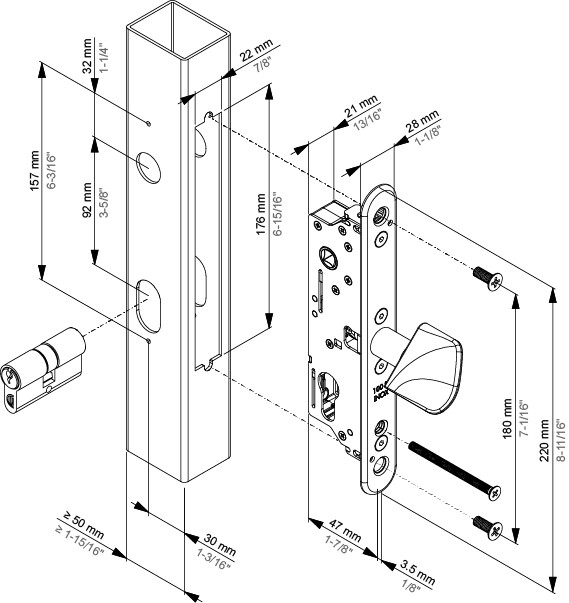

Installation drawing:
Approximate shipping weight: 0.52 kg.
