Locinox adjustable weld-on hinge for opening up to 180°, ZN, GBMU-Z


Product availability: In stock

We normally dispatch goods within 24 hours.

Locinox adjustable weld-on hinge for opening up to 180°, ZN, GBMU-Z Locinox adjustable weld-on hinge for opening up to 180°, ZN, GBMU-Z
LCX-GBMU-Z-M12
within 14 days
€14.04 excluding VAT
€17.27 including VAT

 pcs
A
[thread]		 B
[mm]		 C
[mm]		 D
[mm]		 E
[mm]		 F
[mm]		 To
[mm]		 Weight
M12 90 70 35 24 31 47 0,41 kg
LCX-GBMU-Z-M16
in stock
€15.47 excluding VAT
€19.03 including VAT

 pcs
A
[thread]		 B
[mm]		 C
[mm]		 D
[mm]		 E
[mm]		 F
[mm]		 To
[mm]		 Weight
M16 110 85 40 30 42 60 0,82 kg
LCX-GBMU-Z-M18
within 14 days
€17.71 excluding VAT
€21.78 including VAT

 pcs
A
[thread]		 B
[mm]		 C
[mm]		 D
[mm]		 E
[mm]		 F
[mm]		 To
[mm]		 Weight
M18 105 80 50 30 42 62 0,96 kg
LCX-GBMU-Z-M20
within 14 days
€19.34 excluding VAT
€23.79 including VAT

 pcs
A
[thread]		 B
[mm]		 C
[mm]		 D
[mm]		 E
[mm]		 F
[mm]		 To
[mm]		 Weight
M20 130 105 60 35 51 72 1,83 kg
LCX-GBMU-Z-M22
within 14 days
€23.78 excluding VAT
€29.25 including VAT

 pcs
A
[thread]		 B
[mm]		 C
[mm]		 D
[mm]		 E
[mm]		 F
[mm]		 To
[mm]		 Weight
M22 145 115 60 35 51 74 1,98 kg

Description of Locinox adjustable weld-on hinge for opening up to 180°, ZN, GBMU-Z

Hot-dip galvanized Locinox GBMU-Z hinge, 3-way adjustable, with opening up to 180°. The depth and distance between the gate and post can be adjusted after installation on the gate.

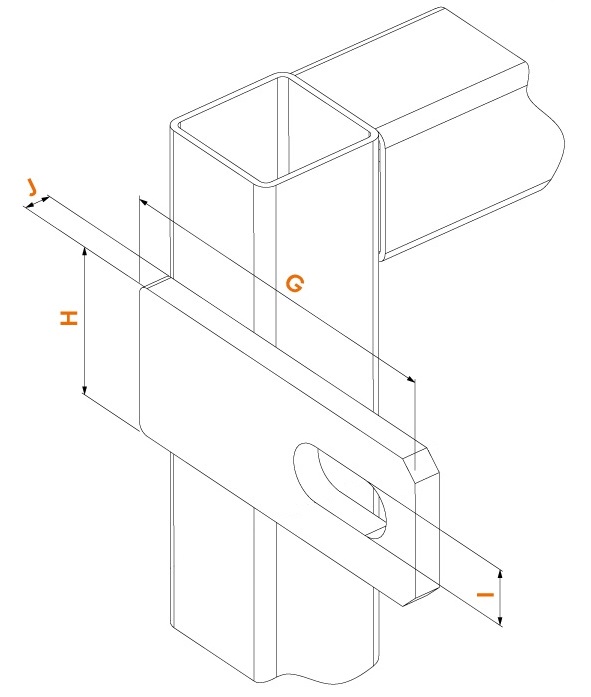

Plate dimensions:

G

(mm)

H

(mm)

I

(mm)

J

(mm)
LCX-GBMU-Z-M12 90 35 13 6
LCX-GBMU-Z-M16 110 45 17 8
LCX-GBMU-Z-M18 120 50 19 8
LCX-GBMU-Z-M20 130 60 21 12
LCX-GBMU-Z-M22 130 60 23 12
