Kit for creating a façade cable wall, 1.8 x 10 m, 200 mm offset from the wall
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€803.39 including VAT
| Weight |
|---|
| 19 kg |
Description of Kit for creating a façade cable wall, 1.8 x 10 m, 200 mm offset from the wall
Kit for creating a stainless steel façade wall 1.8 m high and 10 m long. The façade consists of stainless steel mesh with a mesh size of 200 x 200 mm, flanges, turnbuckles, and accessories for a 200 mm offset from the wall.
| Set NL-FLS-200x200-200-1.8x10 contains: | ||||
|---|---|---|---|---|
|
1 × | Stainless steel wire mesh, 200x200 mm, 1.8 m x 10 m | NL-S200x200-02-10 | |
|
Stainless steel façade cable mesh, woven from 2 mm diameter stainless steel cable, with a mesh size of 200x200 mm. The mesh is made from AISI316 stainless steel. The total length of the unfolded mesh is 10 m, with a height of 1.8 m. |
Details
|
|||
|
30 m | Stainless steel cable Ø2mm | NL-LA2 | |
|
2 mm diameter stainless steel cable made up of seven strands, each consisting of seven wires, manufactured from high-quality AISI 316 stainless steel. |
Details
|
|||
|
30 m | Stainless steel cable Ø5mm | NL-LA5 | |
|
5 mm diameter stainless steel cable made up of seven strands, each consisting of seven wires, manufactured from high-quality AISI 316 stainless steel. |
Details
|
|||
|
5 × | Mounting bracket for 5 mm stainless steel cable | NL-LU05 | |
|
Mount for 5 mm stainless steel cable. Made from brushed K320/AISI 304 stainless steel. |
Details
|
|||
|
5 × | Tensioning fitting for Ø5mm stainless steel cable | NL-LSU-5 | |
|
Mounting bracket – tensioner for 5 mm stainless steel cable. The mounting bracket is made of K320 brushed stainless steel /AISI304. |
Details
|
|||
|
2 × | Flange for a façade cable railing, 200 mm offset from the wall | NL-PFLS-200 | |
|
Stainless steel flange for creating a cable facade wall, suitable for cables with a maximum diameter of 6 mm. The flange has an M8 threaded hole and is suitable for creating a cable facade wall with a 200 mm offset from the wall. |
Details
|
|||
|
4 × | Corner flange for a façade cable system, 200 mm wall clearance | NL-RPFLS-200 | |
|
Stainless steel corner flange for creating a façade cable wall. The flange has two M8 threaded holes and is suitable for creating a façade cable wall with a 200 mm offset from the wall. |
Details
|
|||
|
15 × | Centre flange for a façade cable wall, 200 mm wall offset | NL-SPFLS-200 | |
|
Stainless steel central flange for creating a façade cable wall, suitable for cables with a diameter of 5mm. The flange is suitable for creating a façade cable wall with a 200mm offset from the wall. |
Details
|
|||
|
2 × | Stainless steel crimp sleeve for two ø2mm cables, open | NL-LPO02 | |
|
Stainless steel swage sleeve for two stainless steel cables, 2 mm in diameter. Made of A4 / AISI 316 stainless steel. |
Details
|
|||
|
10 × | Stainless steel cable holder mounting bracket (M8x47mm), AISI304 | NL-LOM8x30 | |
|
Mount for a stainless steel cable holder with an M8 full thread, 47 mm long, made of brushed K320 INOX AISI304 stainless steel. |
Details
|
|||
Example of a façade wall installation:
| Left side (with fixed cable attachment) | Right side (with a turnbuckle) |
|---|---|
 |
 |

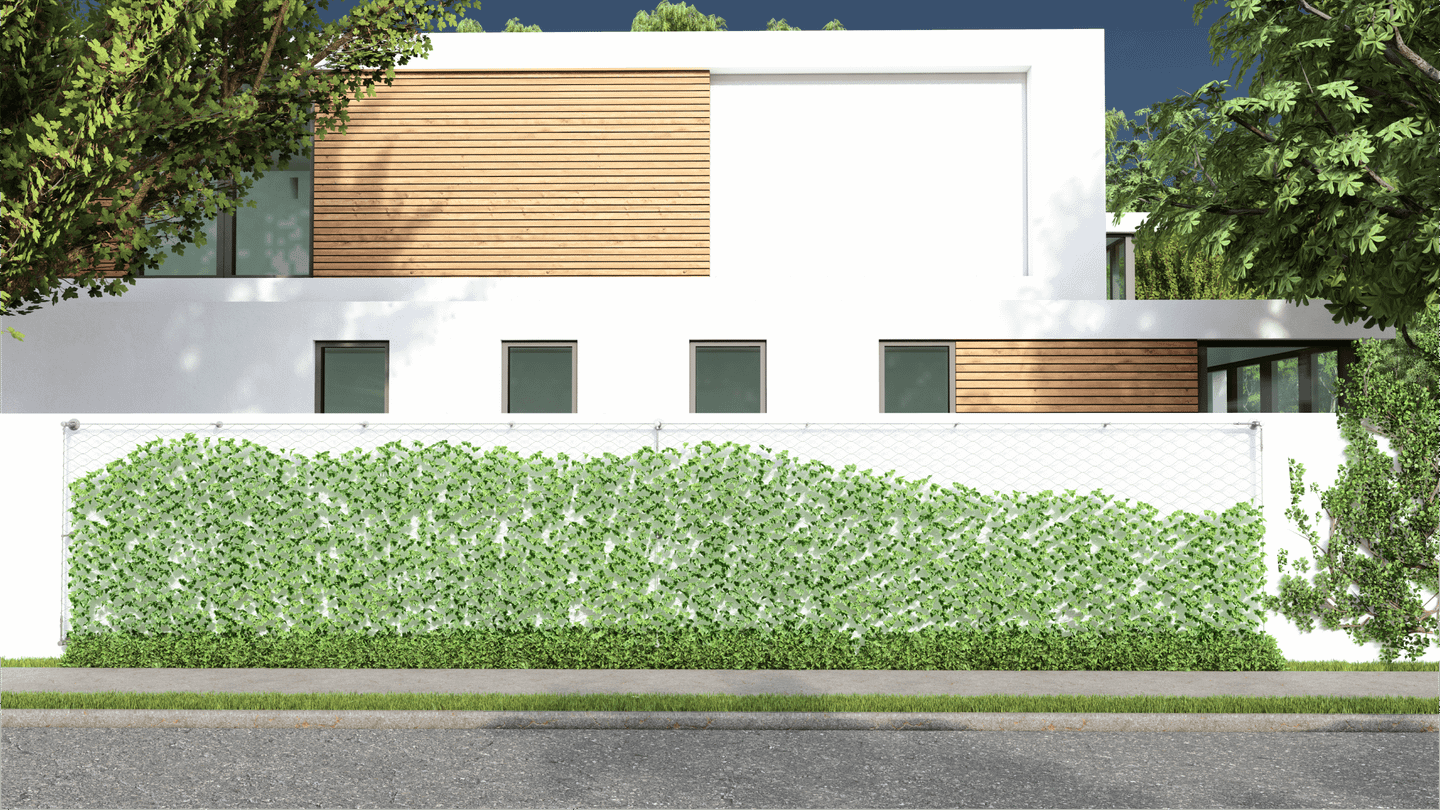

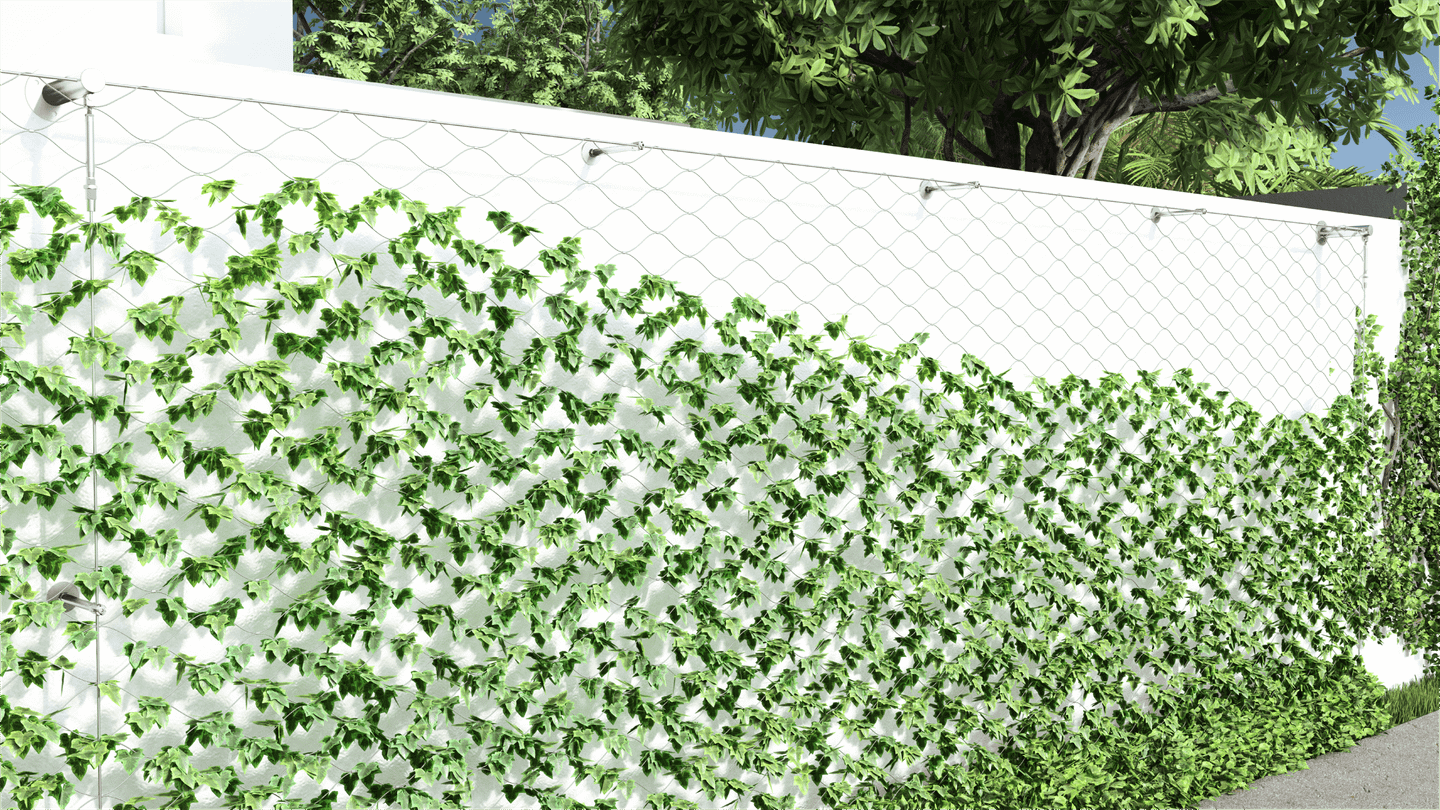

Example of a façade wall in use:
