Kit for creating a façade cable trellis, 3 × 25 m, wall clearance 100 mm
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€1,949.50 including VAT
| Weight |
|---|
| 41 kg |
Description of Kit for creating a façade cable trellis, 3 × 25 m, wall clearance 100 mm
Kit for creating a stainless steel façade wall 3 m high and 25 m long. The façade is made of stainless steel mesh with a mesh size of 200x200mm, flanges, turnbuckles and accessories for a 100 mm offset from the wall.
| Set NL-FLS-200x200-100 contains: | ||||
|---|---|---|---|---|
|
1 × | Stainless Steel Facade Wire Mesh 3x25m | NL-S200x200-02-25 | |
|
Stainless steel façade cable mesh, woven from 2mm diameter stainless steel cable, with a mesh size of 200x200mm, made of AISI316 stainless steel. The total length of the unfolded mesh is 25m, with a height of 3m. |
Details
|
|||
|
75 m | Stainless steel cable Ø2mm | NL-LA2 | |
|
2 mm diameter stainless steel cable made up of seven strands, each consisting of seven wires, manufactured from high-quality AISI 316 stainless steel. |
Details
|
|||
|
75 m | Stainless steel cable Ø5mm | NL-LA5 | |
|
5 mm diameter stainless steel cable made up of seven strands, each consisting of seven wires, manufactured from high-quality AISI 316 stainless steel. |
Details
|
|||
|
8 × | Mounting bracket for 5 mm stainless steel cable | NL-LU05 | |
|
Mount for 5 mm stainless steel cable. Made from brushed K320/AISI 304 stainless steel. |
Details
|
|||
|
8 × | Tensioning fitting for Ø5mm stainless steel cable | NL-LSU-5 | |
|
Mounting bracket – tensioner for 5 mm stainless steel cable. The mounting bracket is made of K320 brushed stainless steel /AISI304. |
Details
|
|||
|
8 × | Flange for a facade cable wall, 100mm wall offset | NL-PFLS-100 | |
|
Stainless steel flange for creating a façade wire-rope wall, suitable for cables with a maximum diameter of 6mm. The flange has an M8 threaded hole and is suitable for creating a façade wire-rope wall with a 100mm offset from the wall. |
Details
|
|||
|
4 × | Corner flange for a façade cable wall, 100mm wall offset | NL-RPFLS-100 | |
|
Stainless steel corner flange for creating a façade cable wall. The flange has two M8 threaded holes and is suitable for creating a façade cable wall with a 100 mm offset from the wall. |
Details
|
|||
|
42 × | Central bracket for a façade cable wall, 100 mm wall offset | NL-SPFLS-100 | |
|
Stainless steel central flange for creating a cable façade wall, suitable for cables with a diameter of 5 mm. The flange is suitable for creating a cable façade wall with a 100 mm stand-off from the wall. |
Details
|
|||
|
14 × | Stainless steel crimp sleeve for two ø2mm cables, open | NL-LPO02 | |
|
Stainless steel swage sleeve for two stainless steel cables, 2 mm in diameter. Made of A4 / AISI 316 stainless steel. |
Details
|
|||
|
16 × | Cable holder mounting bracket (M8x30mm), brushed stainless steel K320, INOX AISI304 | NL-LOM17 | |
|
Stainless steel cable holder bracket. |
Details
|
|||

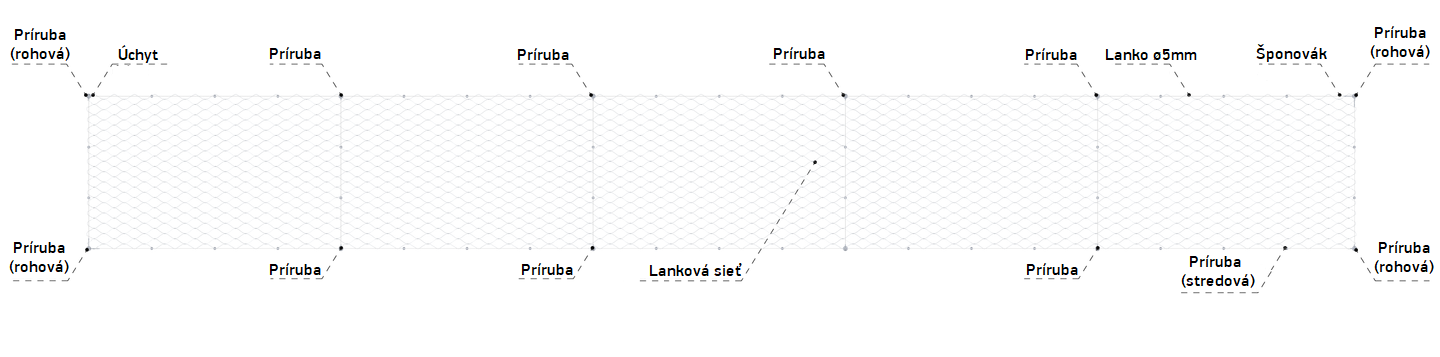

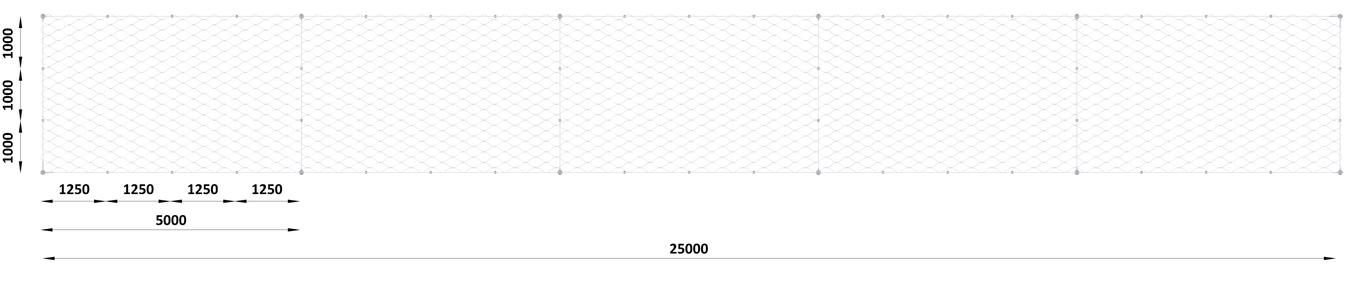

Example of a façade wall installation:

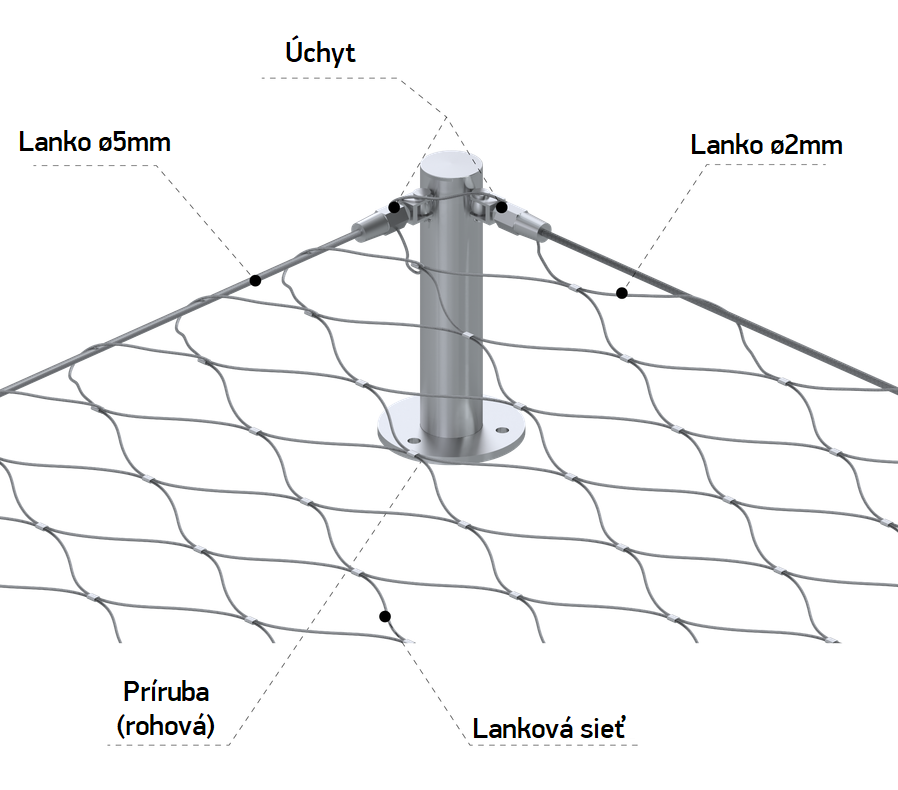

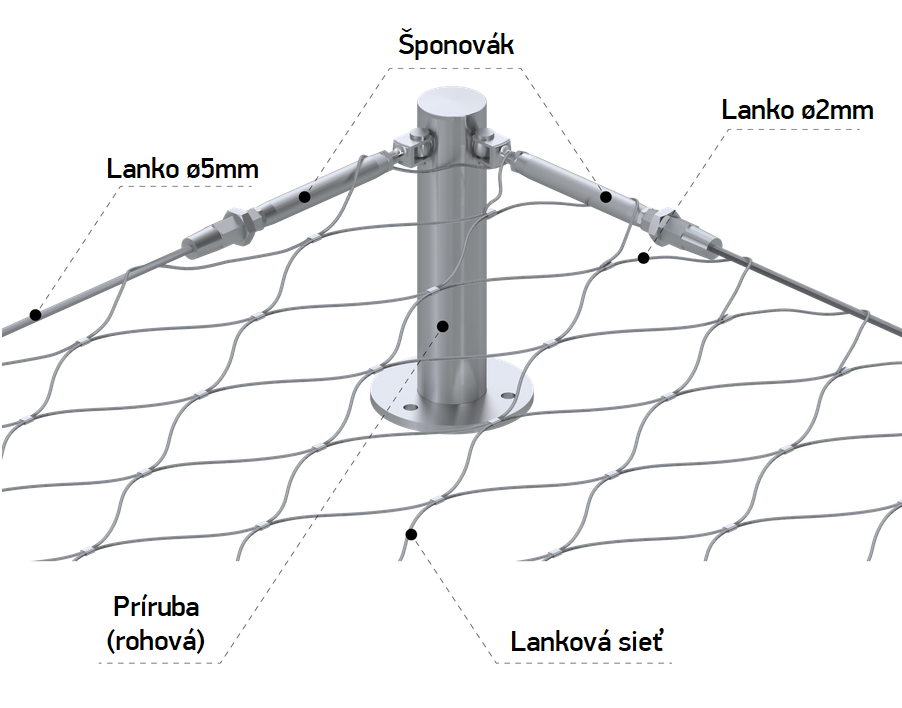

| Left side (with a fixed bracket) | Right side (with a turnbuckle) |
|---|---|
 |
 |
Example of using a façade wall:
