Kit for building a cantilever gate for a passage width of 3 m, ZN 57×67×3.0


Product availability: In stock

We normally dispatch goods within 24 hours.

Kit for building a cantilever gate for a passage width of 3 m, ZN 57×67×3.0 Kit for building a cantilever gate for a passage width of 3 m, ZN 57×67×3.0
SADA-13-ZN
in stock
€269.72 excluding VAT
€331.76 including VAT

 pcs
C-channel dimensions Weight
57×67×3,0 29 kg

Description of Kit for building a cantilever gate for a passage width of 3 m, ZN 57×67×3.0

Component kit for manufacturing a self-supporting sliding gate in the highest quality with highly reliable heavy-duty bearings and a hot-dip galvanized C-track.

Note: The KIT is priced more competitively than the individual components . We can customize the KIT contents on request and apply an appropriate discount. If you have a specific request or would like some advice, contact us.

The kit contains: SADA- 13-ZN

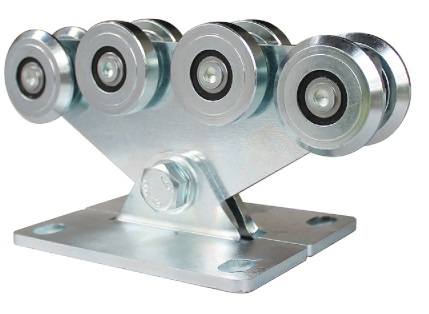

Trolley with eight bearing rollers for a self-supporting sliding gate 2 × Trolley with eight bearing rollers ZB-SS-V8-G

The galvanized steel trolley has 8 metal rollers and is installed on the ground, with the C-track running over them.

 Detail

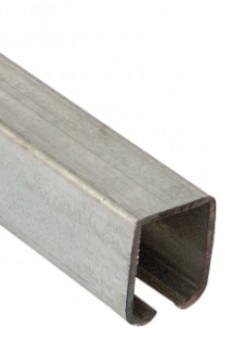

C-track for sliding gate 4 m Hot-dip galvanized C-track ZB-CP57x67G-4

Thick-walled, hot-dip galvanized C-shaped guide track welded to the underside of the gate, allowing it to run on trolleys anchored in a concrete foundation. Surface finish – hot-dip galvanized C-tracks can be joined by welding.

 Detail

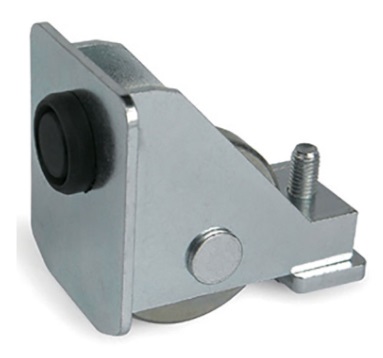

Sliding gate bottom guide roller 1 × Bottom guide roller ZB-SS-SN-G

The guide roller is fitted at the start of the C-track and runs into the bottom stop mounted on the gate post, relieving the gate when closed.

 Detail

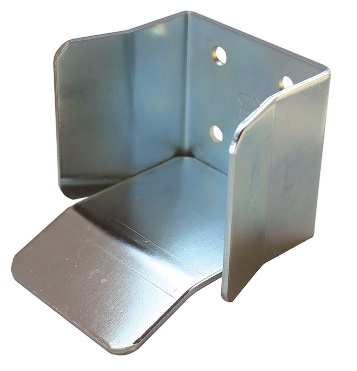

Sliding gate bottom catcher 1 × Bottom catcher  ZB-SS-DK-G

The catcher is mounted at the bottom of the gate post. It relieves the pressure and tensile forces acting on the trolleys when the gate is closed.

 Detail

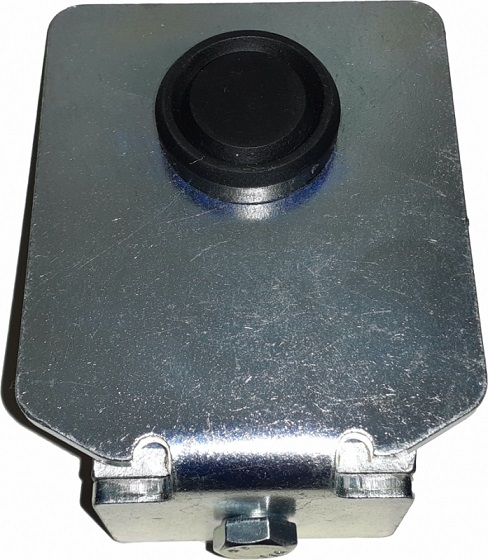

C-track end cap for sliding gate 1 × Metal C-track end cap ZB-SS-SK-G

The sliding gate C-track cap is fitted at the start and, if needed, at the end of the guide track. It slides into the C-track and is secured with a clamping plate. Galvanized finish.

 Detail



DELIVERY OF THE KIT

All sliding gate KITS are in stock. We will deliver the KIT by courier directly to your address. You can pay cash on delivery (to the driver upon receipt of the goods) or by bank transfer in advance. Another option is to collect the kit in person in Nové Mesto nad Váhom.

Ordering THE KIT

You can order the KIT:

1. By email or phone, contact us.

2. Via the shopping cart:

  • Click the “Buy” button to add the product to your cart, where you can select:
    • Payment method: cash on delivery, bank transfer, or cash payment at our premises in Nové Mesto nad Váhom.
    • Delivery method: courier or collection in person.
  • Then click “Proceed to checkout” in the cart to proceed to checkout, where you can enter your delivery and billing details and submit your order.
  • We will then confirm the exact delivery date with you by email at [email protected] or by email.
