KEY FT-43B - wireless photocells with 180° sensor, 900BAT-3 battery
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€69.67 including VAT
| Weight |
|---|
| 0,34 kg |
Description of KEY FT-43B - wireless photocells with 180° sensor, 900BAT-3 battery
In situations where a cable cannot be run across the entrance, you can install photocells using a combination of wired and wireless photocells. This means that on one side of the entrance, the photocell (RX receiver) is connected by cable to the gate operator control unit and on the other side of the entrance there is a wireless photocell (TX transmitter) powered by a battery 900BAT-3 (included in the set).
For the photocells to work correctly, the receiver must be installed so that it cannot be interfered with by other photocells.
Photocells KEY FT-43B have a standard relay connection, so they can in principle be connected to almost any control unit (including other brands) that supplies them with 24 V and has a relay-type safety photocell input.

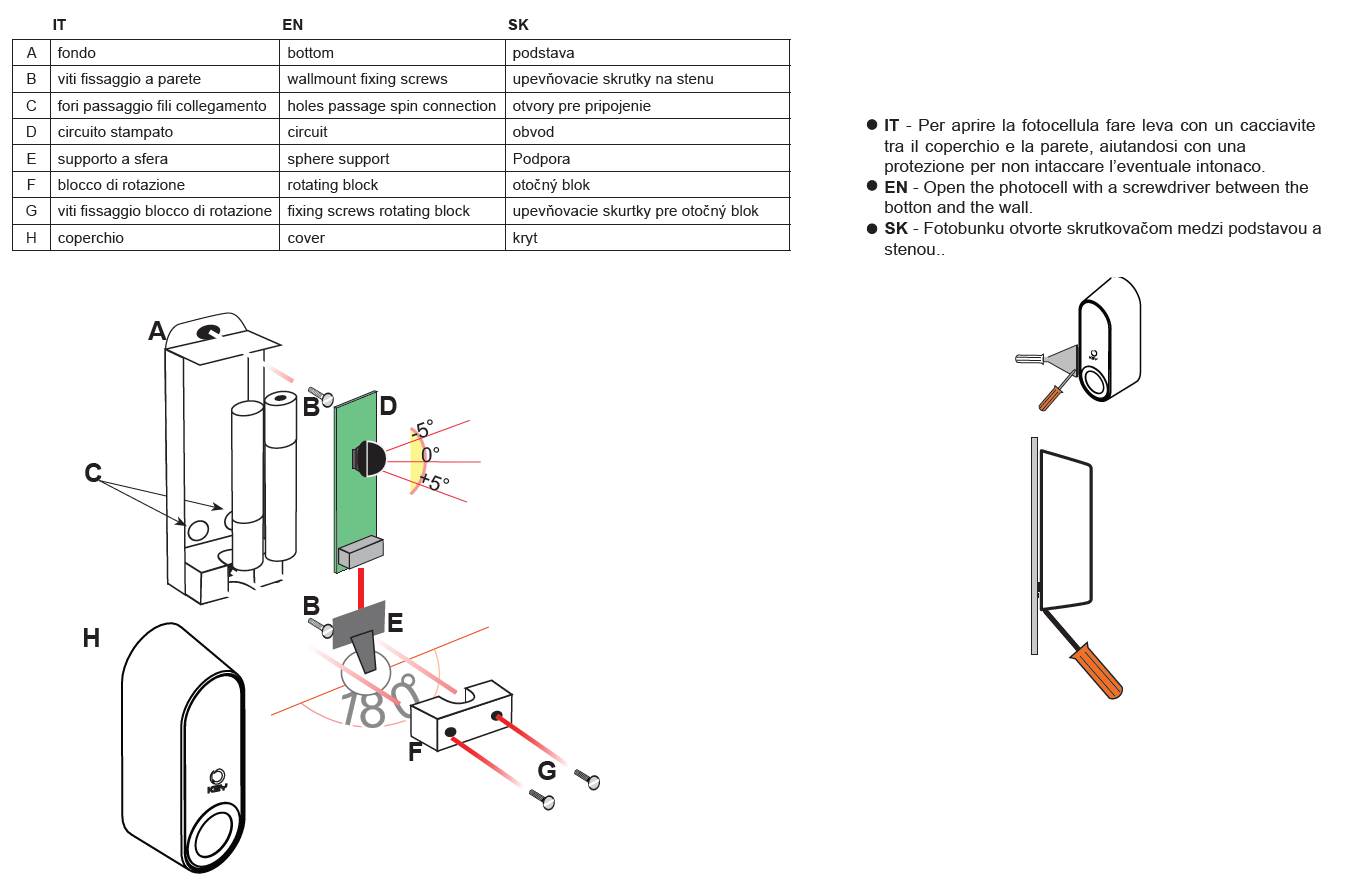

Installation method:
Technical specifications:
| Receiver power supply | 12Vac / 24Vdc |
|---|---|
| Transmitter power supply | 2x AAA 1.5V |
| Supply voltage range | 15-28 Vac / 28-35Vdc |
| Range | 10 /20 m |
| TX current consumption | 0.04 / 0.12 mA |
| RX current consumption | 35mA |
| Relay contact | max. 500mA, 48Vac/Dc |
| Protection rating | IP55 |
