IBFM V-shaped sliding gate track wheel for screw mounting, with bracket

V shape


Product availability: In stock

We normally dispatch goods within 24 hours.

IBFM V-shaped sliding gate track wheel for screw mounting, with bracket IBFM V-shaped sliding gate track wheel for screw mounting, with bracket
KLB-KK-V050
In stock
€9.59 excluding VAT
€11.80 including VAT

 pcs
Ø [mm] A
[mm]		 C
[mm]		 H
[mm]		 h[mm] Weight
50 17 28 70 57 0,78 kg
KLB-KK-V060
in stock
€11.49 excluding VAT
€14.14 including VAT

 pcs
Ø [mm] A
[mm]		 C
[mm]		 H
[mm]		 h[mm] Weight
60 17 28 74 62 0,39 kg
KLB-KK-V080
In stock
€11.50 excluding VAT
€14.15 including VAT

 pcs
Ø [mm] A
[mm]		 C
[mm]		 H
[mm]		 h[mm] Weight
80 20 35 108 96 0,90 kg
KLB-KK-V090
in stock
€11.50 excluding VAT
€14.15 including VAT

 pcs
Ø [mm] A
[mm]		 C
[mm]		 H
[mm]		 h[mm] Weight
90 20 35 112 101 1,10 kg
KLB-KK-V100
in stock
€12.22 excluding VAT
€15.03 including VAT

 pcs
Ø [mm] A
[mm]		 C
[mm]		 H
[mm]		 h[mm] Weight
100 20 39 118 107 1,30 kg

Description of IBFM V-shaped sliding gate track wheel for screw mounting, with bracket

Galvanized wheel for a V-track, with high-quality Italian-made bearings from IBFM. V-groove wheels can be used on V-tracks or on any L-section / square hollow section with a 90° angle.

We also offer a stainless steel wheel with a screw-on mounting bracket.

Wheel load capacity:

Wheel diameter Load capacity per pair
Ø 50mm 120 kg
Ø 60mm 150 kg
Ø 80mm 300 kg
Ø 90mm 300 kg
Ø 100mm 350 kg

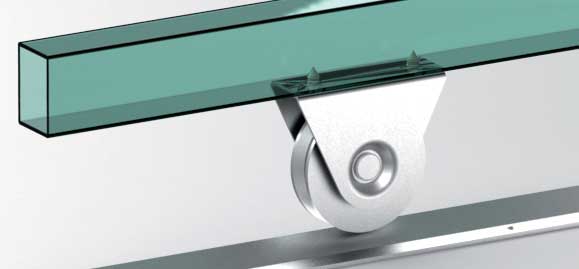

INSTALLATION OF THE SCREW-ON WHEEL WITH BRACKET:

Wheel installation

Installation – wheel with bracket
