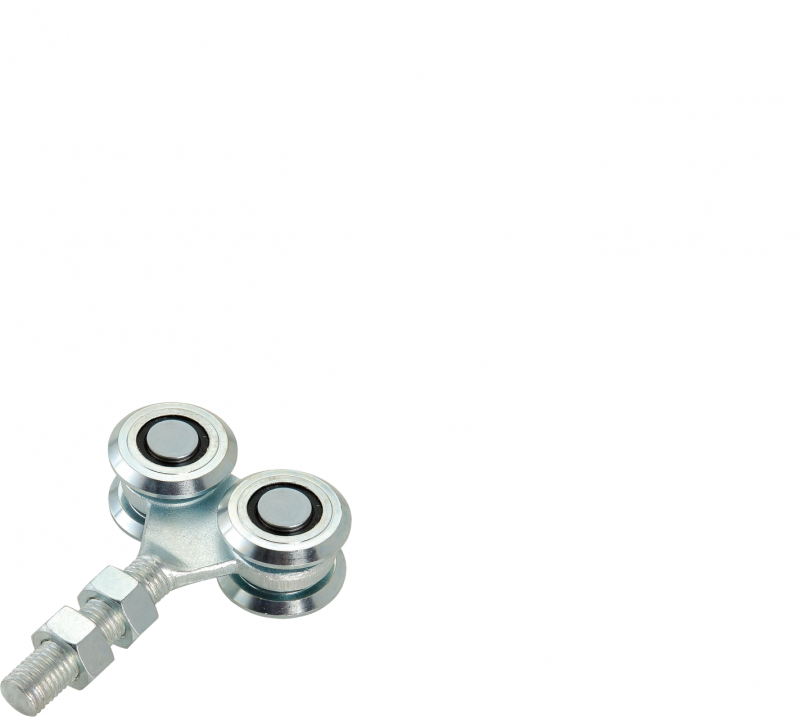

Hanger trolley for a sliding gate, 4 nylon rollers, for 34×31×2.0 profile
Zn| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
ZB-V4-1P-N
in stock
in stock
€12.96 excluding VAT
€15.94 including VAT
€15.94 including VAT
| for C-profile | A [mm] |
C [mm] |
Ød [mm] |
E [mm] |
M [thread] |
Load capacity | Weight |
|---|---|---|---|---|---|---|---|
| 34×31×2,0 | 48 | 21,5 | 24 | 30 | M8 | 50kg | 0,11 kg |
Description of Hanger trolley for a sliding gate, 4 nylon rollers, for 34×31×2.0 profile
Trolley for sliding doors, gates or light screens. The trolley has four nylon rollers with ball bearings and is designed for 34×31×2.0 mm suspended C-channel. Nylon rollers ensure quieter trolley operation in the C-channel.
The trolley has a load capacity of 50 kg, one pair of trolleys can support a body weighing up to 100 kg. The trolleys are made of galvanized steel.
At the bottom there is an M8 thread that allows the trolley to be attached to the top of a suspended gate in several ways—for example, using an bearing flange. Depending on the mounting method, the height can be adjusted further using the thread. Supplied with nuts.
| Alternatives to trolley ZB-V4-1PN | |||
|---|---|---|---|
| 2 rollers, metal, up to 30 kg ZB-V2-1P |
4 rollers, metal, up to 50 kg ZB-V4-1PK |
2 rollers, nylon, up to 30 kg ZB-V2-1PN |
|
 |
 |
 |
|
How can I order this item?
Choose the option that suits you:
- order online: use the buy button to add the goods to your shopping cart (you will find the buy button here in the product variants table).
- order by email: place your order at [email protected]
