Galvanized wall-mount bracket for 42.4 mm tube
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€11.38 including VAT
| Weight |
|---|
| 0,37 kg |

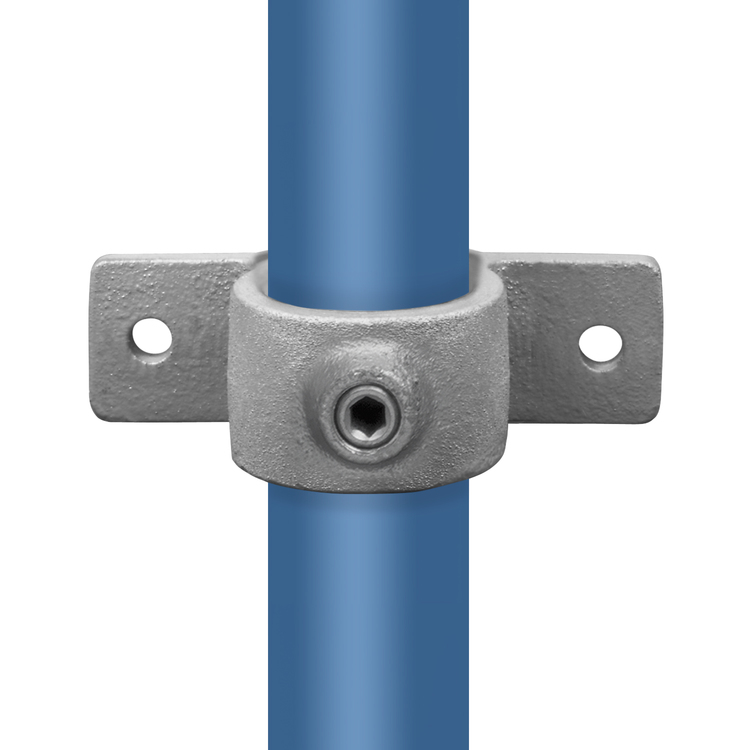

Description of Galvanized wall-mount bracket for 42.4 mm tube
Galvanised bracket / flange for pipe, designed for wall mounting. Suitable for securing a structure to a wall at multiple points, or as support for heavier structures mounted to a wall.
The bracket is secured to the wall using 2 holes with a diameter of 10 mm.
Connectors slide onto the profile at the joint and are secured with an Allen screw (3/8" - 12,7 mm). No welding required this way you can create a strong joint.
The product is designed for a 42.4 mm pipe (1¼”), which fits precisely.
Pipe connectors or tube connectors are suitable for building heavier-duty 2D and 3D structures, such as a pallet racking system or a railing. Other possible uses for profile connectors include DIY construction of a shelving unit, stand, barrier, or even a frame for an advertising banner, modular tubular railing and many more.
Connectors are most commonly used as railing fittings and our range includes all the shapes needed for mounting to a wall or concrete. If you have a specific request, contact us by email.
Technical specifications
| For pipes: | 42.4 mm |
|---|---|
| Width: | 130 mm |
| Height: | 30 mm |
| Plate thickness: | 9 mm |
| Bolt-hole spacing: | 96 mm |
| Bolt-hole diameter: | 10 mm |
| Screws: | Allen, 3/8" - 12,7 mm |
Example of how to use a tube holder:
Examples of how to use profile connectors:
Same connector shape for a different tube diameter
