Galvanised anchor for 48.3 mm tube, with side flange, end type
Zn| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€29.34 including VAT
| Weight |
|---|
| 0,83 kg |
Description of Galvanised anchor for 48.3 mm tube, with side flange, end type
Galvanized end bracket with a triangular flange for a tube with a diameter of 42.4 mm, is designed for fixing a post to a wall. The tube does not pass through the anchor..
The bracket is attached to the wall using 3 holes with a diameter of 11 mm.
The fasteners slide onto the profile at the joint and are secured with an Allen screw (3/8" - 12.7 mm). No welding is required this way, you can create a strong connection.
The bracket’s inner diameter for the tube is 1 mm larger than the tube’s diameter. The product is designed for a tube 48.3 mm (1½”), which fits perfectly.
Tube connectors or pipe connectors are suitable for building more robust 2D and 3D structures, such as a pallet racking system or a railing. Other possible uses for profile connectors include DIY construction of a shelving unit, stand, barrier, or even a frame for an advertising banner, or a modular tube railing and many more.
Connectors are most commonly used as railing fittings and our range includes all the shapes needed for fixing to a wall or concrete. If you have a specific request, contact us by email.

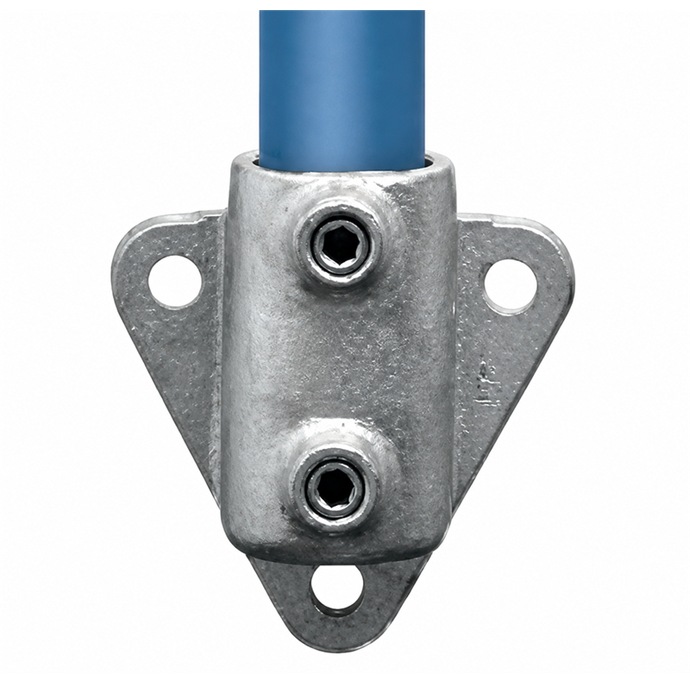

Example of how to use a tube connector:
Same connector shape for a different tube diameter
