Folding mechanism for a swing gate, single leaf up to 8 m


Product availability: within 3 days

We usually ship the goods within 3 days.

Folding mechanism for a swing gate, single leaf up to 8 m Folding mechanism for a swing gate, single leaf up to 8 m
KB-SM-8-1
within 3 days
€1,445.69 excluding VAT
€1,778.20 including VAT

 pcs
Weight
5,00 kg

Description of Folding mechanism for a swing gate, single leaf up to 8 m

Component kit for a swing gate with a two-piece folding leaf up to 8 m long. When using two kits you can fold a swing gate with a passage width of up to 16 m. A two-piece folding swing gate is especially useful if you park your car directly behind the gate, if a slope starts a short distance behind it, or if there is any other obstacle that prevents the installation of a conventional one-piece gate leaf. Thanks to this mechanism, you can save up to half the space that would otherwise be taken up by the arc traced by the moving gate leaf.

The components in this kit are professionally manufactured and ensure maximum strength and gate operating speed.

This folding mechanism is suitable for both residential and industrial use. Cover elements improve safety during use.

The kit components are galvanized and the connecting hinges for the second gate leaf are made of aluminium.

The mechanism is suitable for a single leaf with a length of 3m to 8 m.

Set KB-SM-8-1 contains:
Double-leaf aluminium hinge 4 × Double-leaf aluminium hinge VL4500-140-V

Double-leaf aluminium hinge for connecting gate leaves

 Details
Adjustable upper pivot hinge 1 × Adjustable upper pivot hinge VC4114-090

Adjustable upper pivot hinge for gate mounting

 Details
Lower pivot hinge 1 × Lower pivot hinge VC4202-090

Bottom pivot hinge for gate mounting

 Details
Foldable joint for attachment to a post 1 × Foldable joint for attachment to a post VC7101-080

Foldable joint for connecting the gate leaf to the post

 Details
Folding joint for connecting gates 1 × Folding joint for connecting gates VC7102-080

Folding joint for connecting gate leaves

 Details
Protective covers 1 × Protective covers VC7105-80

Protective covers (left, right) for the folding mechanism

 Details
Telescopic guide profile 3 m Telescopic guide profile VA5401-003

Telescopic guide profile for connecting the folding joints of the mechanism

 Details

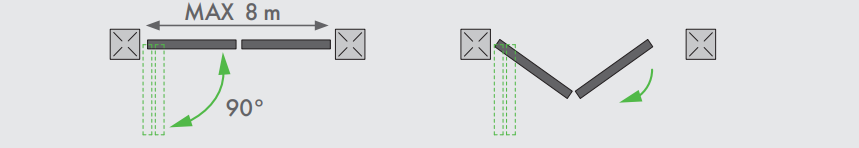

How the folding mechanism works:

How the gate folding mechanism works

Usage limitations:

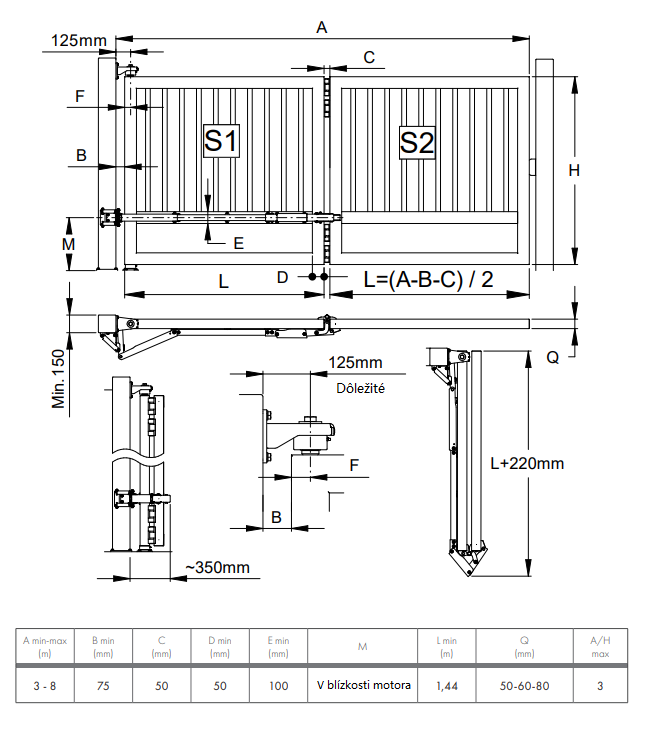

Using the calculation based on the image below, you can determine whether the mechanism is suitable for your situation.

Usage limitations of the folding system up to 8 mHow to install the folding mechanism:

Manual for the folding system up to 8 m
PDF
