Folding mechanism for a swing gate, single leaf max. 5 m
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€719.52 including VAT
| Weight |
|---|
| 5,00 kg |
Description of Folding mechanism for a swing gate, single leaf max. 5 m
Component kit for a swing gate with a two-section folding leaf up to 5 m long. When using two kits you can fold a swing gate with a clear opening width of up to 10 m. A two-section folding swing gate is particularly useful if you park your car directly behind the gate, if a slope begins shortly beyond it, or if there is any other obstacle that prevents the installation of a standard single-leaf gate. Thanks to this mechanism, you can save up to half the space that would otherwise be taken up by the arc traced by the moving gate leaf.
The components in this kit are professionally manufactured and ensure maximum gate strength and speed of movement. The mechanism is meticulously designed, and its installation can be completed without welding.
This folding mechanism is suitable for both residential and industrial use. Cover elements improve safety during operation.
The kit components are galvanized and the connecting hinges for the second gate leaf are made of aluminium.
The mechanism is suitable for a single leaf measuring from 1.9 m to 5 m.
| Set KB-SM-5-1 contains: | ||||
|---|---|---|---|---|
|
2 × | Double-leaf aluminium hinge | VL4500-140-V | |
|
Double-leaf aluminium hinge for connecting gate leaves |
Details
|
|||
|
1 × | Adjustable upper pivot hinge | VC4111-B50 | |
|
Adjustable upper pivot hinge for gate mounting |
Details
|
|||
|
1 × | Lower pivot hinge | VC4212-B50 | |
|
Bottom pivot hinge for gate mounting |
Details
|
|||
|
1 × | Folding joint for attachment to a post | VC7101-060 | |
|
Folding hinge for connecting the gate leaf to the post |
Details
|
|||
|
1 × | Folding joint for connecting gates | VC7102-060 | |
|
Folding joint for connecting gate leaves |
Details
|
|||
|
1 × | Protective cover | VC7105-060 | |
|
Protective cover for the folding mechanism |
||||
|
1,9 m | Guide profile | VA5401-002-L | |
|
Guide profile for connecting the folding joints of the mechanism |
Details
|
|||

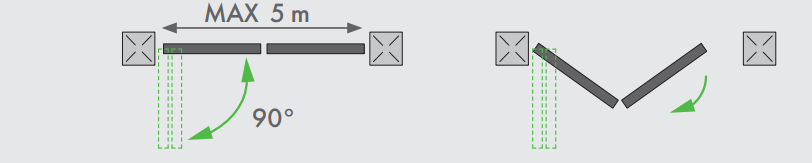

How the folding mechanism works:
Usage limitations:

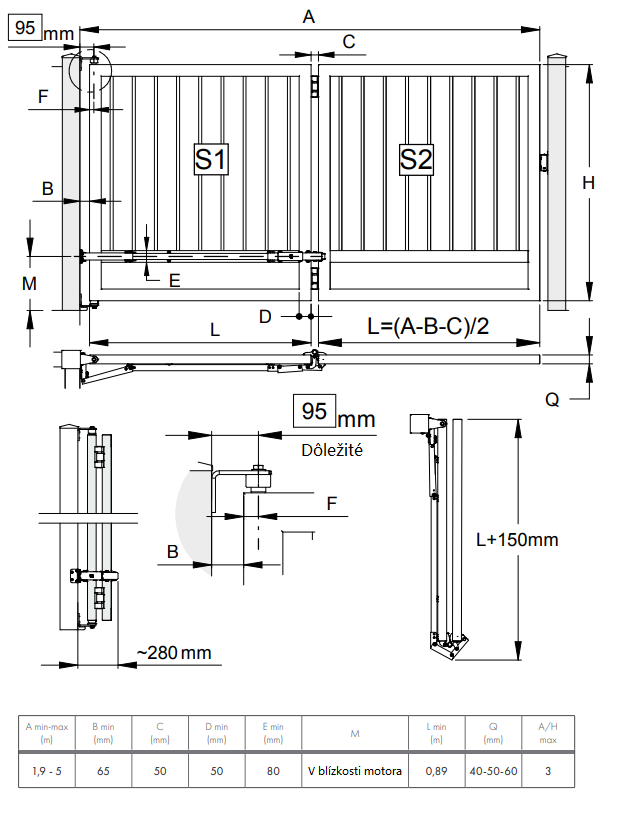

Using the calculation based on the image below, you can determine whether the mechanism is suitable for your situation.
How to install the folding mechanism:
