Folding mechanism for a swing gate, single leaf max. 2.4 m
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
In stock
€162.30 including VAT
| Weight |
|---|
| 4,00 kg |
Description of Folding mechanism for a swing gate, single leaf max. 2.4 m
Component set for a swing gate with a two-part folding leaf up to 2.4 m long. When using two sets you can fold in an accordion style a swing gate with a passage width of up to 4.8 m. A two-part folding swing gate is especially useful if you park your car directly behind the gate, if the ground slopes shortly beyond it, or if there is any other obstacle that prevents the installation of a conventional single-piece leaf. Thanks to this mechanism, you can save up to half the space that would otherwise be taken up by the arc traced by the movement of the gate leaf.
Manual for the swing gate folding mechanism.
1. Step
Attaching it to the gate frame:
2. Step
Dimension A is equal to B, as determined by the length of the leaf. Shorten the bracket accordingly and install it on the post.
3. Step
Point C is found at the intersection of the two circles shown in step 2
and step 3

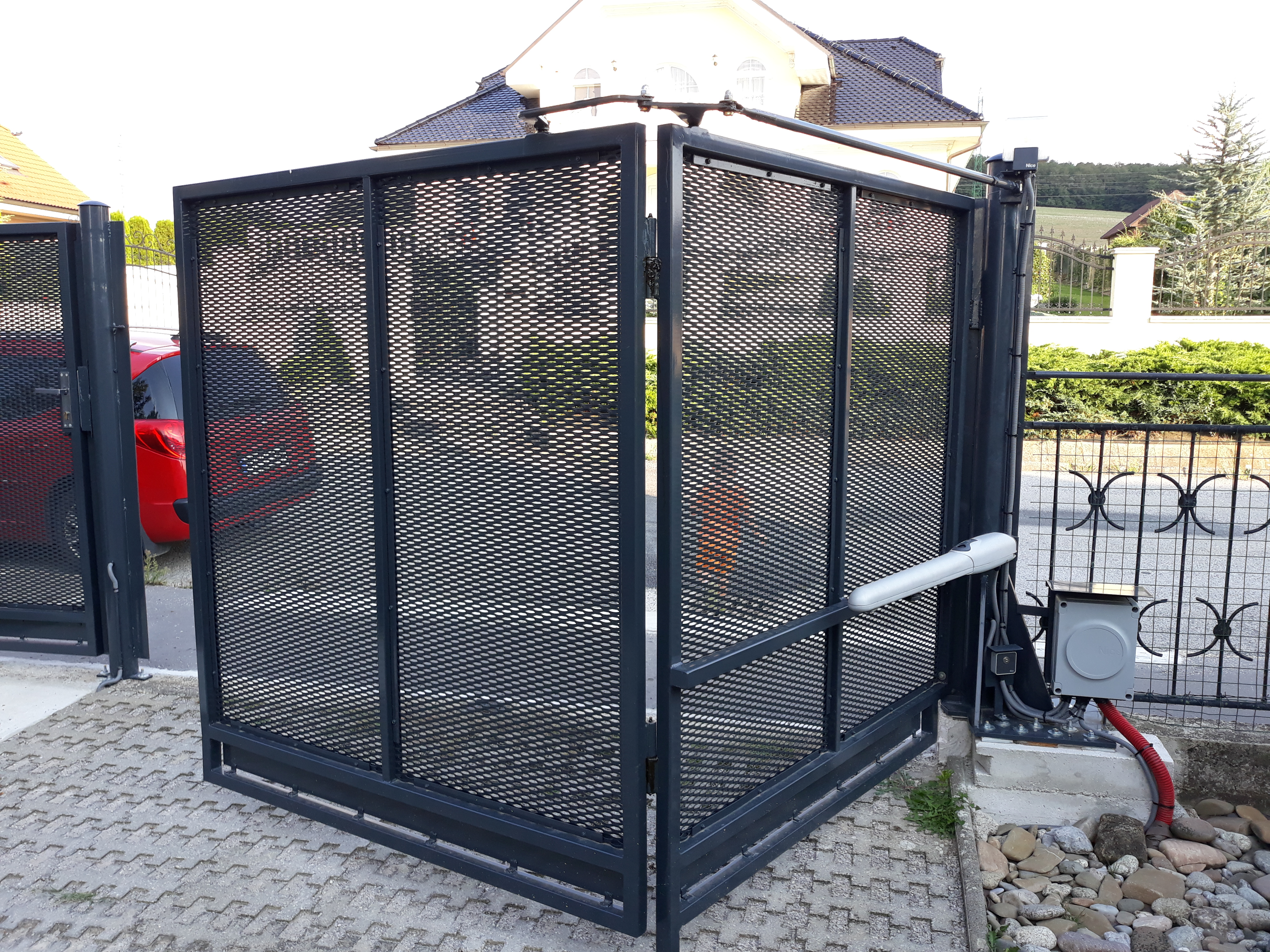

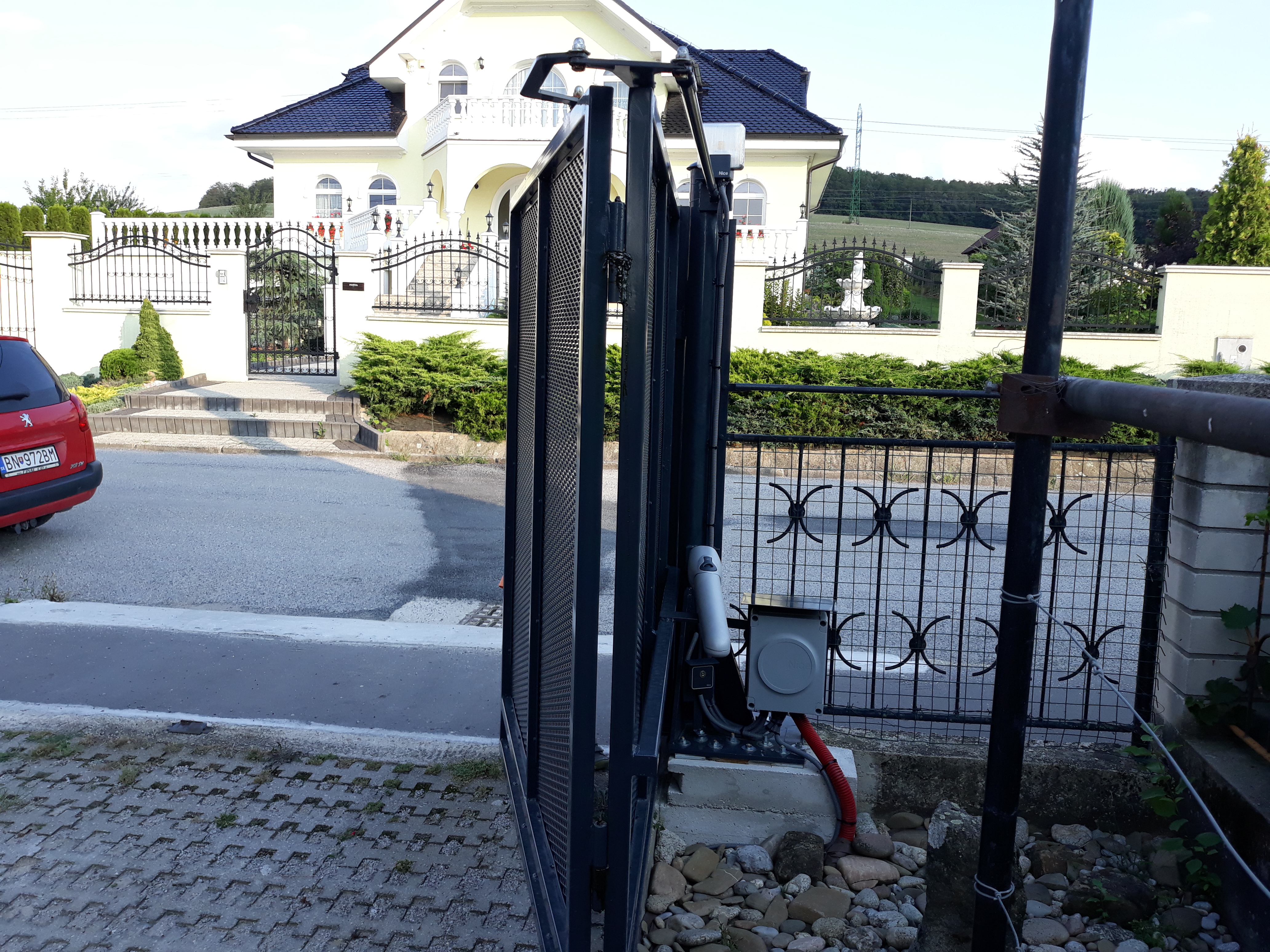

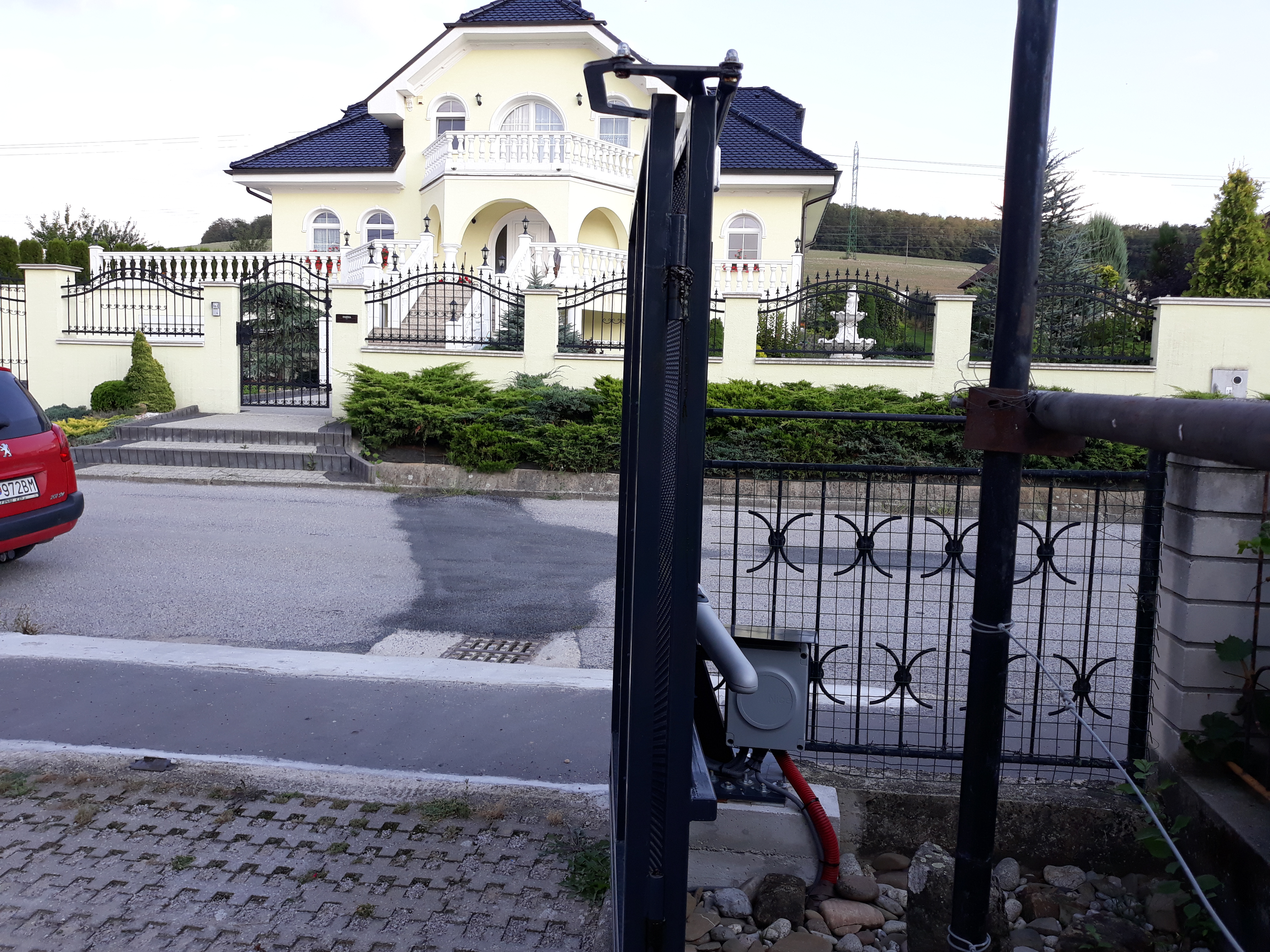

Example of a folding mechanism on a swing gate
