Folding mechanism for a double-leaf gate up to 4.8 m, with each leaf max. 2.4 m
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€329.33 including VAT
| Weight |
|---|
| 8,00 kg |
Description of Folding mechanism for a double-leaf gate up to 4.8 m, with each leaf max. 2.4 m
Component set for installing a folding double-leaf gate with a maximum length of 4.8 m, with each leaf measuring max. 2.4 m. Each gate leaf is made of two sections that fold back against each other as the gate opens, saving clearance space. A two-section folding gate is especially useful if you park your car directly behind the gate, if a slope starts a short distance beyond it, or if there is any other obstacle that prevents the installation of a conventional single-piece leaf. Thanks to this mechanism, you can save up to half the space that would otherwise be taken up by the arc traced by the leaf as it moves.

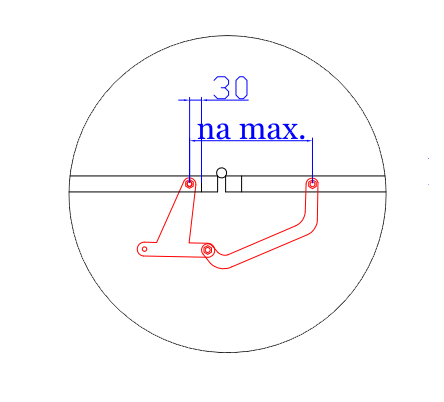

1. Step
Fastening to the gate frame:

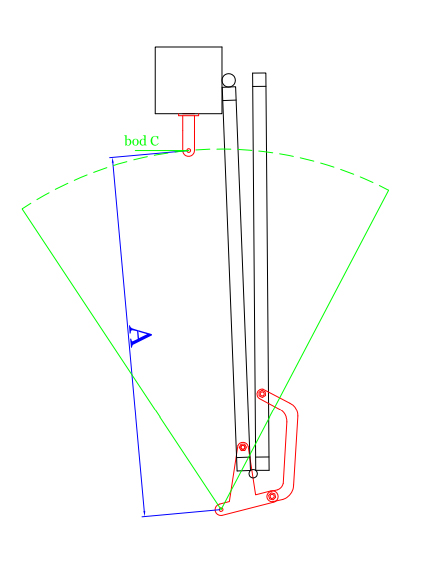

Step 2
Dimension A equals B; this follows from the length of the leaf, so the bracket must be shortened accordingly and installed on the post. The bracket must be shortened accordingly and installed on the post.

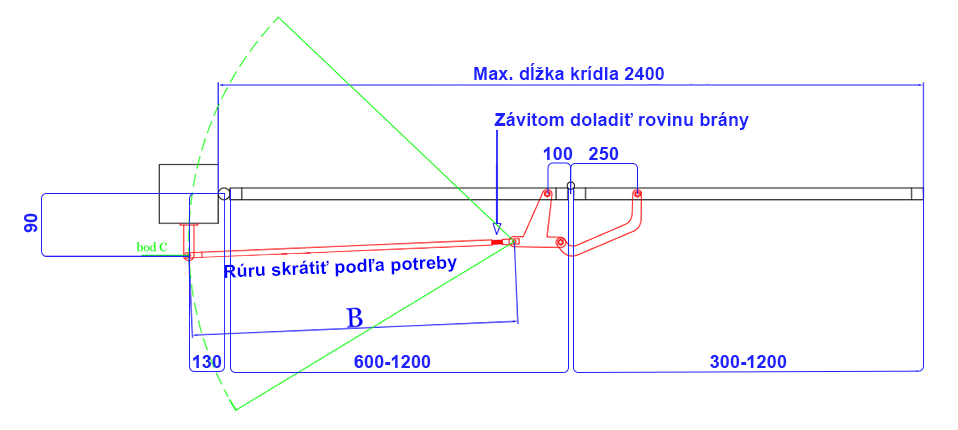

3. Step
Point C is where the two circles shown in step 2 intersect
and step 3.
