Folding mechanism for a double-leaf gate up to 16 m, with each leaf up to 8 m
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€3,556.40 including VAT
| Weight |
|---|
| 10 kg |
Description of Folding mechanism for a double-leaf gate up to 16 m, with each leaf up to 8 m
Component kit for installing a folding double-leaf gate with a maximum total length of 16 m, with each leaf measuring up to 8 m. Each gate leaf consists of two sections that fold back on each other when the gate opens, saving space.
A two-section folding gate is ideal if you park your car directly behind the gate, if a slope starts a short distance beyond it, or if there is any other obstacle that prevents the installation of a conventional single-section leaf. Thanks to this mechanism, you can save up to half the space that would otherwise be taken up by the arc traced by the leaf as it moves.
The components in this kit are professionally manufactured and ensure maximum strength and gate operating speed. The mechanism is meticulously engineered, and its installation can be completed without welding.
This folding mechanism is suitable for both residential and industrial use. The covers improve safety during operation.
The kit components are galvanized and the connecting hinges for the second gate leaf are made of aluminium.
The mechanism is suitable for leaves measuring from 3 m to 8 m.
| Set KB-SM-8-2 contains: | ||||
|---|---|---|---|---|
|
8 × | Double-leaf aluminium hinge | VL4500-140-V | |
|
Double-leaf aluminium hinge for connecting gate leaves |
Details
|
|||
|
2 × | Adjustable upper pivot hinge | VC4114-090 | |
|
Adjustable upper pivot hinge for gate mounting |
Details
|
|||
|
2 × | Lower pivot hinge | VC4202-090 | |
|
Bottom pivot hinge for gate mounting |
Details
|
|||
|
2 × | Foldable joint for attachment to a post | VC7101-080 | |
|
Foldable joint for connecting the gate leaf to the post |
Details
|
|||
|
2 × | Folding joint for connecting gates | VC7102-080 | |
|
Folding joint for connecting gate leaves |
Details
|
|||
|
2 × | Protective covers | VC7105-80 | |
|
Protective covers (left, right) for the folding mechanism |
Details
|
|||
|
3+3 m | Telescopic guide profile | VA5401-003 | |
|
Telescopic guide profile for connecting the folding joints of the mechanism |
Details
|
|||

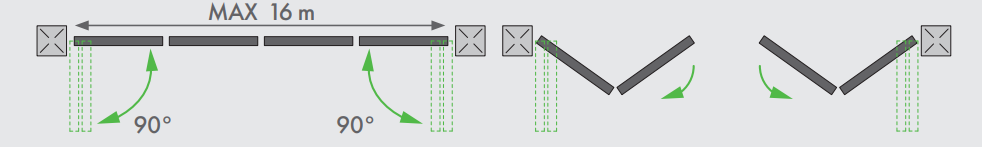

How the folding mechanism works:
Usage limits:
Use the calculation shown in the image below to determine whether the mechanism is suitable for your situation.
How to install the folding mechanism:
