Folding mechanism for a double-leaf gate up to 10 m, each leaf max. 5 m
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
In stock
€1,439.04 including VAT
| Weight |
|---|
| 8,00 kg |
Description of Folding mechanism for a double-leaf gate up to 10 m, each leaf max. 5 m
Component set for installing a folding double-leaf gate with a maximum length of 10 m, with each leaf measuring up to 5 m. Each gate leaf consists of two sections that fold back on themselves as the gate opens, saving space.
A two-section folding gate is especially useful if you park your car directly behind the gate, a slope starts just beyond it, or another obstacle prevents you from installing a conventional single-section leaf. Thanks to this mechanism, you can save up to half the space that would otherwise be taken up by the arc traced by the leaf as it moves.
The components in this set are professionally manufactured and ensure maximum strength and operating speed for the gate.
This folding mechanism is suitable for both residential and industrial use. Cover plates improve safety during use.
The components in the set are galvanized and the connecting hinges for the second gate leaf are made of aluminum.
The mechanism is suitable for leaves measuring from 1.9 m to 5 m.
| Set KB-SM-5-2 contains: | ||||
|---|---|---|---|---|
|
4 × | Double-leaf aluminium hinge | VL4500-140-V | |
|
Double-leaf aluminium hinge for connecting gate leaves |
Details
|
|||
|
2 × | Adjustable upper pivot hinge | VC4111-B50 | |
|
Adjustable upper pivot hinge for gate mounting |
Details
|
|||
|
2 × | Lower pivot hinge | VC4212-B50 | |
|
Bottom pivot hinge for gate mounting |
Details
|
|||
|
2 × | Folding joint for attachment to a post | VC7101-060 | |
|
Folding hinge for connecting the gate leaf to the post |
Details
|
|||
|
2 × | Folding joint for connecting gates | VC7102-060 | |
|
Folding joint for connecting gate leaves |
Details
|
|||
|
2 × | Protective cover | VC7105-060 | |
|
Protective cover for the folding mechanism |
||||
|
1,9+1,9 m | Guide profile | VA5401-002-L | |
|
Guide profile for connecting the folding joints of the mechanism |
Details
|
|||

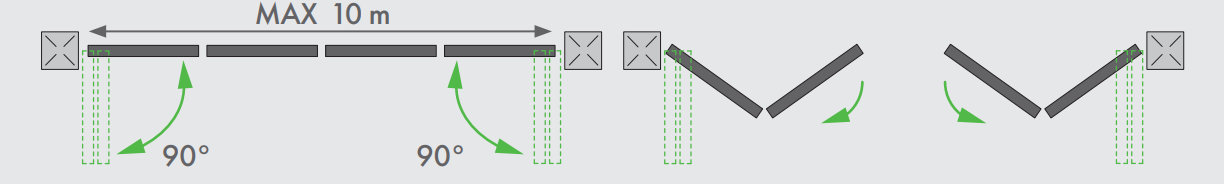

How the folding mechanism works:
Usage limits:
Using the calculation shown in the image below, you can determine whether the mechanism is suitable for your situation.
How to install the folding mechanism:
