Fixed trolley without adjustment for suspended gates, 3 rollers
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
| Available variant types for this product Fixed trolley without adjustment for suspended gates, 3 rollers | ||
| Roller type: |
You can choose the rollers nylon or metal. Nylon rollers allow the gate to carry a heavy load, prevent wear on the C-profile and ensure quiet gate operation. |
|
|---|---|---|
|
Nylon
rollers Metal
rollers |
||
in stock
€39.56 including VAT
| A [mm] |
B [mm] |
C [mm] |
H [mm] |
Weight |
|---|---|---|---|---|
| 60 | 60 | 4 | 41 | 1,60 kg |
in stock
€47.41 including VAT
| A [mm] |
B [mm] |
C [mm] |
H [mm] |
Weight |
|---|---|---|---|---|
| 70 | 70 | 4 | 37 | 1,80 kg |
€47.44 including VAT
| A [mm] |
B [mm] |
C [mm] |
H [mm] |
Weight |
|---|---|---|---|---|
| 80 | 80 | 5 | 32 | 2,20 kg |
Description of Fixed trolley without adjustment for suspended gates, 3 rollers
Trolley for suspended gates. The trolleys are fastened to the gate, while the C-profile is anchored to the ceiling or wall. These trolleys are often used for purposes other than gates, such as in handling and lifting mechanisms. The trolley is suitable for gates up to 3–4 metres long and weighing up to 180 kg.
- Variant V-08-4 fits C-profile 60x60x4 mm mild steel and C-profile 60x60x4 mm zinc-plated
- Variant V-08-3 fits C-profile 70x70x4 mm mild steel and C-profile 70x70x4 mm zinc-plated
- Variant V-08-1 fits C-profile 80x80x5 mm mild steel and C-profile 80x80x5 mm zinc-plated

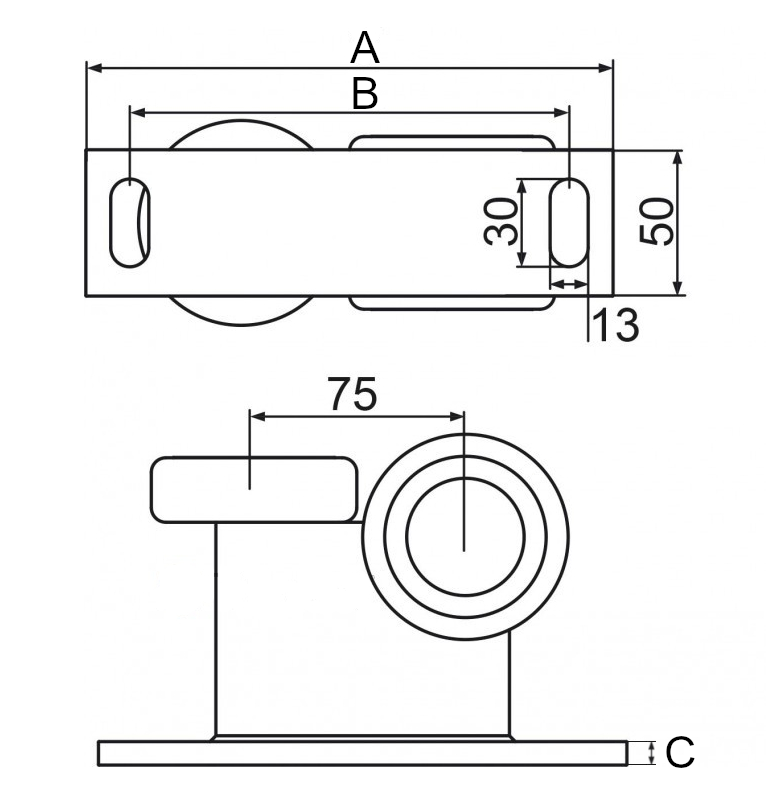

Trolley base dimensions
| Code | A length [mm] | B length[mm] | C base thickness [mm] |
|---|---|---|---|
| V-08-4 | 180 | 150 | 8 |
| V-08-3 | 180 | 150 | 8 |
| V-08-1 | 180 | 152 | 12 |
 |
|||
Complete range of suspended gate system components
We also offer smaller trolleys for suspended gate systems and matching C-profiles and C-profile brackets, end stops and locks:
| Complete range of components for suspended gates |
|
|---|---|
| A suspended gate assembly consists of the following basic parts: | |
| Supporting components |
- C-profile is anchored to the ceiling, beam or wall. |
| Guiding components |
- guide rollers keep the gate from moving sideways |
| Optional accessories |
- locks to secure the suspended gate |

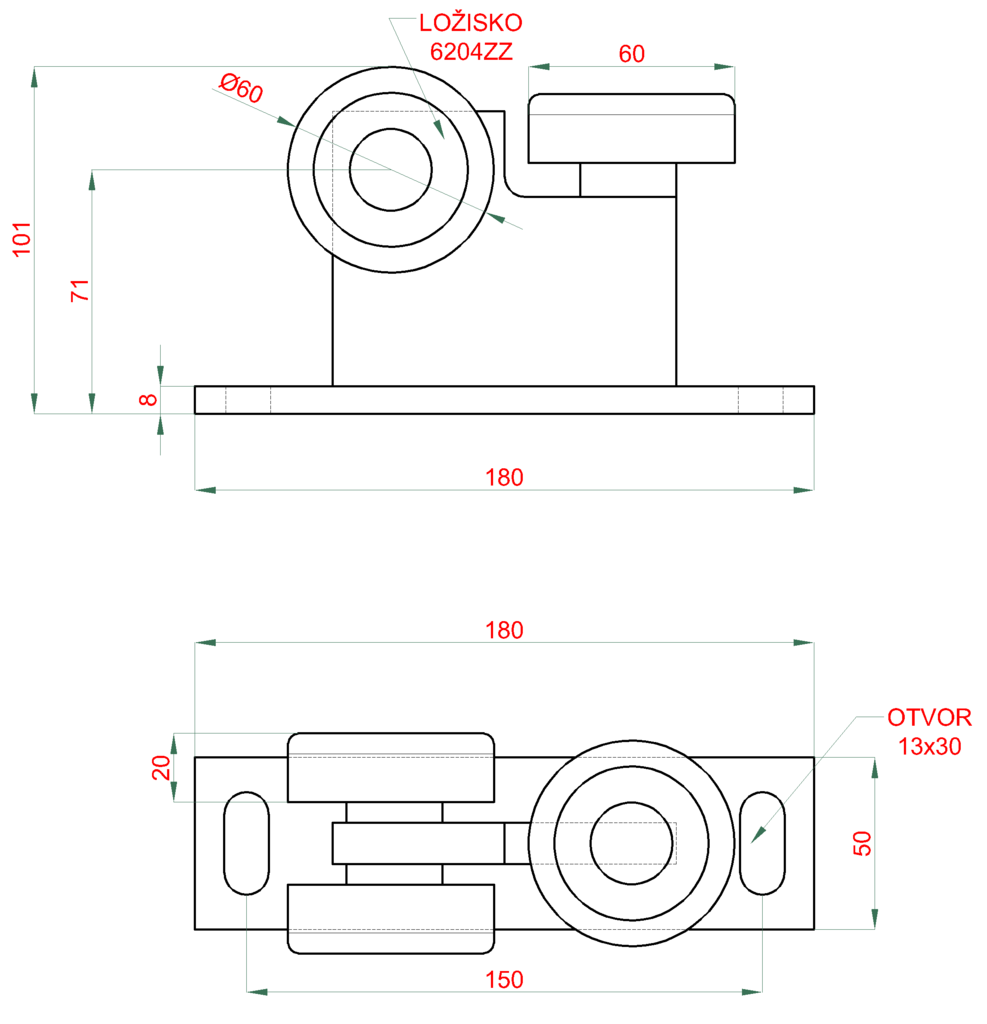

Drawing of trolley 60×60×4:
360°:
