Fixed adjustable trolley, 3 rollers with mounting plate
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
V-06-1
in stock
in stock
€37.00 excluding VAT
€45.51 including VAT
€45.51 including VAT
| A [mm] |
B [mm] |
C [mm] |
Hmin [mm] |
Hmax [mm] |
Weight |
|---|---|---|---|---|---|
| 80 | 80 | 5 | 73 | 93 | 4,30 kg |
V-06-3
In stock
In stock
€37.00 excluding VAT
€45.51 including VAT
€45.51 including VAT
| A [mm] |
B [mm] |
C [mm] |
Hmin [mm] |
Hmax [mm] |
Weight |
|---|---|---|---|---|---|
| 70 | 70 | 4 | 78 | 98 | 4,30 kg |

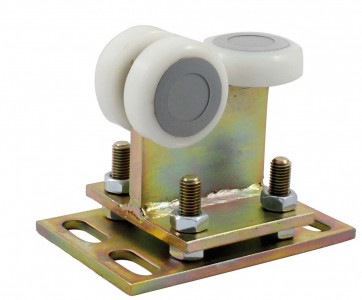

Description of Fixed adjustable trolley, 3 rollers with mounting plate
Adjustable fixed carriage for sliding gates with a passage width of up to 3 m and a weight of up to 250 kg. The carriage is supplied with a mounting plate included in the price.
- Variant V-06-1 fits C-profile 80x80x5 mm FE and C-profile 80x80x5 mm ZN as well as C-profile 76x76x3 mm INOX
- Variant V-06-3 fits C-profile 70x70x4 mm FE and C-profile 70x70x4 mm ZN as well as C-profile 83x79x11 mm AL
The option to adjust the carriage allows you to fine-tune the gate's angle and ensure smooth operation (also taking into account the terrain or slope across the passage).
All discounted cantilever gate kits.
Mounting plate dimensions for the carriage
| A[mm] | B[mm] | C[mm] | D[mm] | Overall carriage length, including bearings[mm] |
|---|---|---|---|---|
| 180 | 120 | 75 | 140 | 180 / 135 (bearings at the top) |
 |
||||
Anchoring the support carriages for a cantilever gate:
The support carriages can be anchored:
- to threaded rods which you set directly into the foundation
- to threaded rods chemically bonded into an already cured concrete foundation
- to hammer-in anchors into an already cured concrete foundation
The narrowest dimension of the holes in the mounting plates is 17mm, and they are anchored using M16. All methods are suitable; it depends on which one you have more experience with.
