Fingerprint and RFID chip reader
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€133.95 including VAT
| Weight |
|---|
| 0,18 kg |
Description of Fingerprint and RFID chip reader
Fingerprint and RFID tag and card reader serving as an access control system.
A simple solution for accessing buildings using fingerprints, RFID tags or cards. The reader features an elegant round design with metal trim and an IP66 rating, making it suitable for both indoor and outdoor use. Storage capacity for up to 1,000 codes, including 100 fingerprints and 900 RFID tags.
Fingerprint reader is capacitive, which, unlike optical readers, ensures greater reliability and speed.
The reader can also be connected to an additional button for switching the contacts. For example, an exit button on the other side of the door.

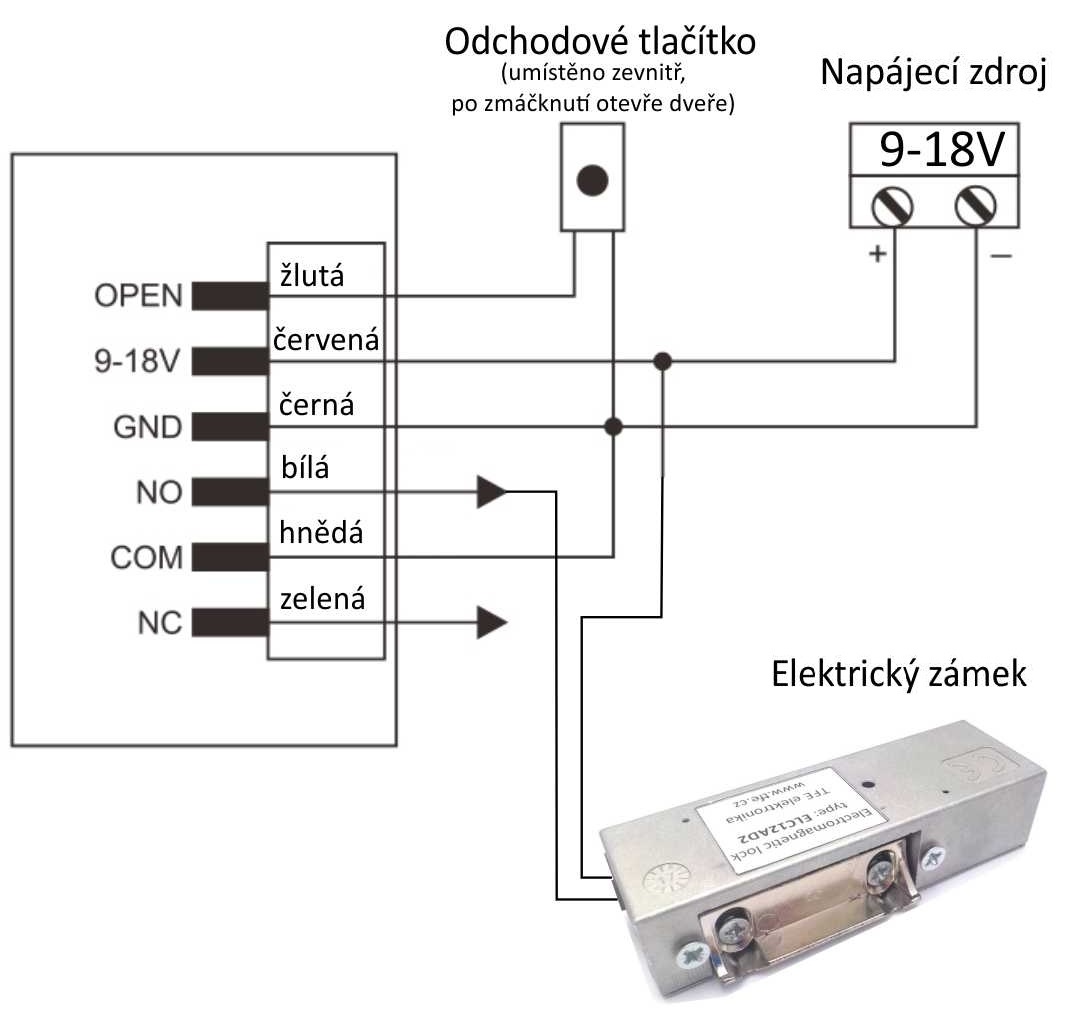

Very easy to connect and set up. Simply connect the power supply and wire up the output, which can control, for example, an electromagnetic door lock. Then use the controller to register fingerprints and RFID tags.

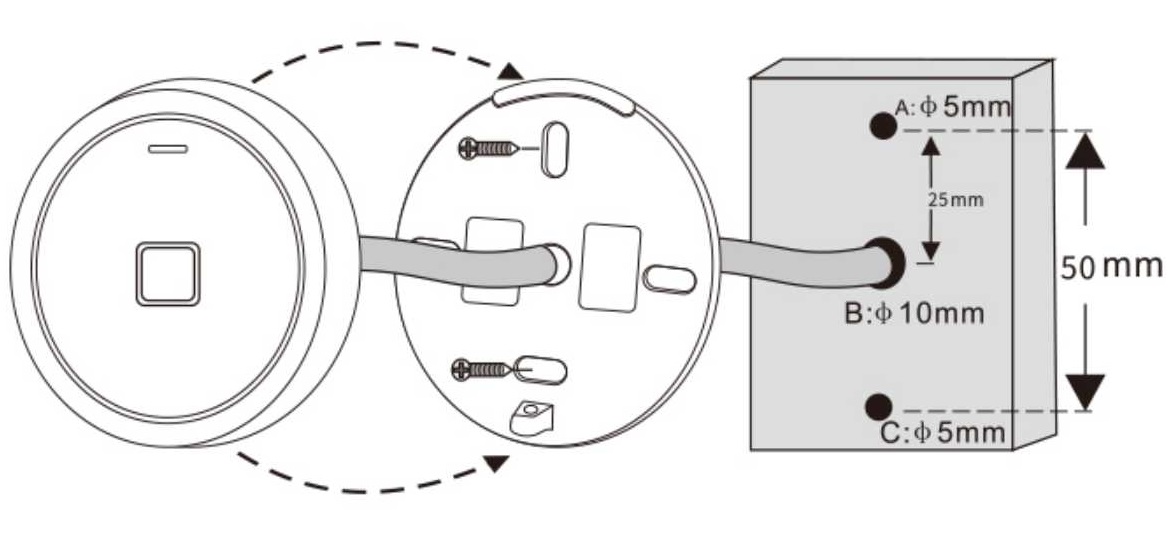

| Installation method: | Wiring method: |
|---|---|
 |
 |
Technical specifications:
| Number of users: | 100 fingerprints, 900 RFID tags |
|---|---|
| RFID tag frequency: | 125kHz |
| RFID tag reading distance: | 2-6cm |
| Power supply: | 12V DC |
| Current draw: | 30mA at rest, 100mA active |
| Output: | relay contact |
| Max. relay load: | 2A/ 30V |
| Relay activation time: | 0 - 99 seconds |
| Operating temperature: | -40°C / +60°C |
| IP rating: | IP66 |
| Dimensions: | Diameter 73mm, thickness 20mm |
