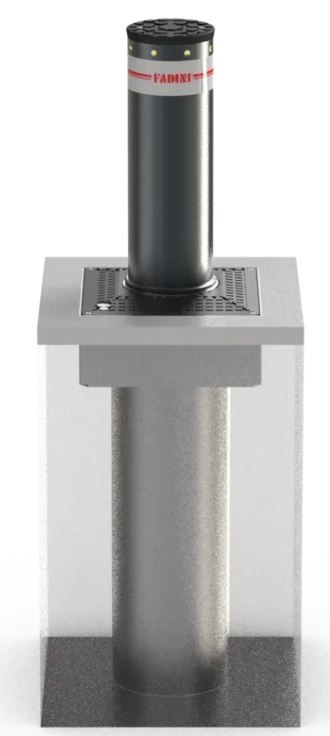

FADINI VIGILO automatic retractable bollard, 200 mm diameter, anthracite
| Product availability: | Within 3 weeks | We normally dispatch the goods within 3 weeks |
|---|
Within 3 weeks
€4,397.41 including VAT
| A [mm] |
G [mm] |
H [mm] |
LED lights | Weight |
|---|---|---|---|---|
| 500 | 850 | 1350 | NO | 102 kg |
Within 3 weeks
€5,220.53 including VAT
| A [mm] |
G [mm] |
H [mm] |
LED lights | Weight |
|---|---|---|---|---|
| 500 | 850 | 1350 | YES | 102 kg |
Within 3 weeks
€4,853.81 including VAT
| A [mm] |
G [mm] |
H [mm] |
LED lights | Weight |
|---|---|---|---|---|
| 600 | 960 | 1560 | NO | 110 kg |
Within 3 weeks
€5,680.11 including VAT
| A [mm] |
G [mm] |
H [mm] |
LED lights | Weight |
|---|---|---|---|---|
| 600 | 960 | 1560 | YES | 110 kg |
Within 3 weeks
€5,311.80 including VAT
| A [mm] |
G [mm] |
H [mm] |
LED lights | Weight |
|---|---|---|---|---|
| 800 | 1140 | 1940 | NO | 131 kg |
Within 3 weeks
€6,138.11 including VAT
| A [mm] |
G [mm] |
H [mm] |
LED lights | Weight |
|---|---|---|---|---|
| 800 | 1140 | 1940 | YES | 131 kg |
Description of FADINI VIGILO automatic retractable bollard, 200 mm diameter, anthracite
Fully retractable, high-performance automatic bollard consisting of an oil-hydraulic motor-pump unit housed inside the main structure and an oil-hydraulic actuator inside the moving cylinder.
Height above ground level can be 500, 600 or 800 mm. Scratch-resistant S235JRH steel moving cylinder with a thickness of 4 mm and a diameter of 200 mm, cataphoresis-treated and polyester powder-coated.
Aluminium cylinder head with a rubber edge and cataphoresis-treated aluminium cover plate. Moving cylinder fitted with highly reflective, high-intensity adhesive film (80 mm wide), available with 8 warning flashing LED lights and a 10 m electrical cable.
The steel pit for installation is hot-dip galvanized. Cover plate providing access to the hydraulic release mechanism for manually lowering the bollard with a special key in an emergency.
Impact resistance 30,000 J, resistance to forced removal 160,000 J, static load max. 1,600 kg (bollard in the raised position), max. 20,000 kg (in the lowered position).
Operating temperature -40 ÷ +80 °C. Supply voltage 230 Vac ± 10%, 50 Hz. Power consumption 330 W.
Extension time is 5.1 s (for the 500 mm bollard), 5.9 s (for the 600 mm bollard), 7.7 s (for the 800 mm bollard). The bollards are designed for intensive use, 2,000 cycles/day.
The entire structure has an IP 67 rating.
COMPLETE RETRACTABLE BOLLARD ASSEMBLY:
Technical specifications:
| Bollard diameter (mm): | 200 |
|---|---|
| Bollard wall thickness (mm): | 4 |
| Bollard height above ground (mm): | 500/600/800 |
| Bollard material: | S235JRH steel |
| Base material: |
hot-dip galvanized steel
|
| Base material: | hot-dip galvanized steel |
| Operating temperature: | -20 ÷ +80 |
| Lubricating oil type: | 708L |
| Power supply (Vac – Hz): | 230 - 50 |
| Power consumption (W): | 330 |
Current consumption (A):
|
1.8 |
| Power (kW / HP): | 0.25 / 0.33 |
| IP rating: | 67 |
| Usage frequency (cycles per day): | 2,000 |
Impact resistance (J):
|
30,000 |
| Resistance to break-through (J): | 160,000 |
| Max. static load (kg): | 20,000 |
