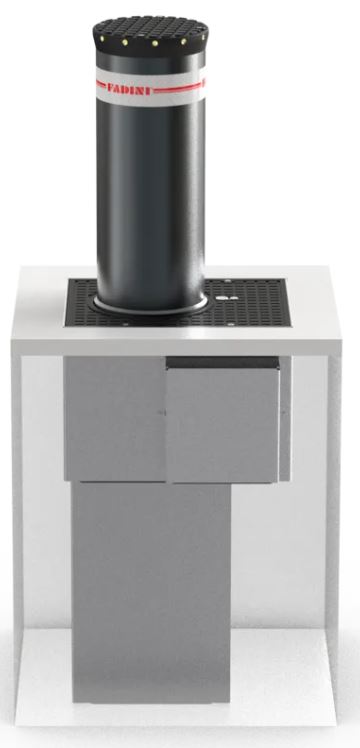

FADINI TALOS 94 automatic retractable bollard, 275 mm diameter, anthracite
| Product availability: | Within 3 weeks | We normally dispatch the goods within 3 weeks |
|---|
Within 3 weeks
€7,327.95 including VAT
| A [mm] |
H [mm] |
Weight |
|---|---|---|
| 500 | 830 | 196 kg |
Within 3 weeks
€7,878.82 including VAT
| A [mm] |
H [mm] |
Weight |
|---|---|---|
| 500 | 1010 | 202 kg |
Within 3 weeks
€7,694.66 including VAT
| A [mm] |
H [mm] |
Weight |
|---|---|---|
| 600 | 1010 | 226 kg |
Within 3 weeks
€8,243.95 including VAT
| A [mm] |
H [mm] |
Weight |
|---|---|---|
| 600 | 1210 | 234 kg |
Within 3 weeks
€8,059.79 including VAT
| A [mm] |
H [mm] |
Weight |
|---|---|---|
| 700 | 1010 | 232 kg |
Within 3 weeks
€8,610.66 including VAT
| A [mm] |
H [mm] |
Weight |
|---|---|---|
| 700 | 1210 | 240 kg |
Within 3 weeks
€8,428.11 including VAT
| A [mm] |
H [mm] |
Weight |
|---|---|---|
| 800 | 1210 | 240 kg |
Within 3 weeks
€8,978.98 including VAT
| A [mm] |
H [mm] |
Weight |
|---|---|---|
| 800 | 1310 | 246 kg |
Description of FADINI TALOS 94 automatic retractable bollard, 275 mm diameter, anthracite
Fully retractable, high-performance automatic bollard consisting of an oil-hydraulic motor-pump unit built into the main structure and an oil-hydraulic actuator inside the moving cylinder.
Height above ground level can be 500, 600, 700 or 800 mm. Scratch-resistant S235JRH steel moving cylinder with a 4 mm wall thickness and a diameter of 275 mm, cataphoresis-treated and polyester powder-coated.
Aluminium cylinder head with a rubber edge and cataphoresis-treated aluminium cover plate. The moving cylinder is fitted with retroreflective, high-intensity microprismatic adhesive film (80 mm high), 12 flashing warning LEDs and a 10 m electrical cable.
Steel housing for installation is hot-dip galvanized. Cover plate providing access to the hydraulic release mechanism for manually lowering the bollard with a special key in an emergency.
TALOS 94 retractable bollards are also available in the HRC version, in which the extended bollard sits 200 mm deeper in its housing than the standard version. This provides greater resistance to both impact and penetration.
Impact resistance 52,000 J (HRC version: 70,000 J), penetration resistance 320,000 J (HRC version: 420,000 J), static maximum load: 1,500 kg (bollard in the raised position), maximum 20,000 kg (in the lowered position).
Operating temperature: -40 to +80 °C. Supply voltage: 230 Vac ± 10%, 50 Hz. Power consumption: 1,100 W.
Extension time is 2.14 s (for the 500 mm bollard), 2.57 s (for the 600 mm bollard), 3 s (for the 700 mm bollard), 3.42 s (for the 800 mm bollard). The bollards are designed for intensive use, up to 2,000 cycles per day.
The entire structure has an IP 67 rating.
OVERVIEW OF THE COMPLETE RETRACTABLE BOLLARD ASSEMBLY:
Technical specifications:
| Bollard diameter (mm): | 275 |
|---|---|
| Bollard wall thickness (mm): | 4 |
| Bollard height above ground (mm): | 500/600/700/800 mm |
| Bollard material: | S235JRH steel |
| Bollard finish: |
cataphoresis treatment and RAL 7016 polyester
powder coating
|
| Base material: | hot-dip galvanized steel |
| Operating temperature: | -20 to +80 |
| Lubricating oil type: | 708L |
| Power supply (Vac – Hz): | 230 - 50 |
| Power consumption (W): | 1,100 |
Current consumption (A):
|
1.8 to 3.5 |
| Power (kW / HP): | 0.25 / 0.33 |
| IP rating: | 67 |
| Usage frequency (cycles per day): | 2,000 |
Impact resistance (J):
|
52,000 / HRC 70,000 |
| Penetration resistance (J): | 320,000 / HRC 420,000 |
| Max. static load (kg): | 20,000 |
