Double-sided sandwich PUR panel, height 100 cm, thickness 3 cm, RAL 9007 grey, line/microline pattern
| Product availability: | Up to 6 weeks | The goods will be with you within 6 weeks. This lead time may be significantly shorter, so it’s best to check the current delivery time. |
|---|
Up to 6 weeks
€425.75 including VAT
| Length [m] | Weight |
|---|---|
| 6 m | 57 kg |
Up to 6 weeks
€140.89 including VAT
| Length [m] | Weight |
|---|---|
| 2 m | 19 kg |
Description of Double-sided sandwich PUR panel, height 100 cm, thickness 3 cm, RAL 9007 grey, line/microline pattern
Universal insulated PUR sandwich panel with a RAL9007 grey smooth finish, for use in the manufacture of sliding gates. Unlike standard wall panels, this product is designed for horizontal installation in sliding gates, fences and similar structures. The PUR panel has a different profile on each side: ribbed on one side and micro-ribbed on the other.
Applications
- Sliding gate infill
- Fencing
- Cladding
Advantages
- Lightweight and easy to handle
- High thermal insulation
- Modern, clean appearance
- Weather-resistant
- The panels fit together precisely with a tongue-and-groove joint
Installation
The panels are installed using steel U-channels, ensuring a stable, neat fit with no visible fixings:
- Lower U-channel: 20×16×20 mm, 2 mm thick
- Upper U-channel: 20×33×20 mm, 1.5 mm thick
- Vertical U-channels are used at the ends of the gate to finish the panels
The panels slide between the upper and lower channels and join together with a tongue-and-groove joint. This installation method creates a strong, compact and attractive infill without visible screws.
This PUR panel has a different profile on each side: ribbed on one side and micro-ribbed on the other. Choose the profile by rotating the panel to suit your preference, or combine the profiles to create a more elaborate design.

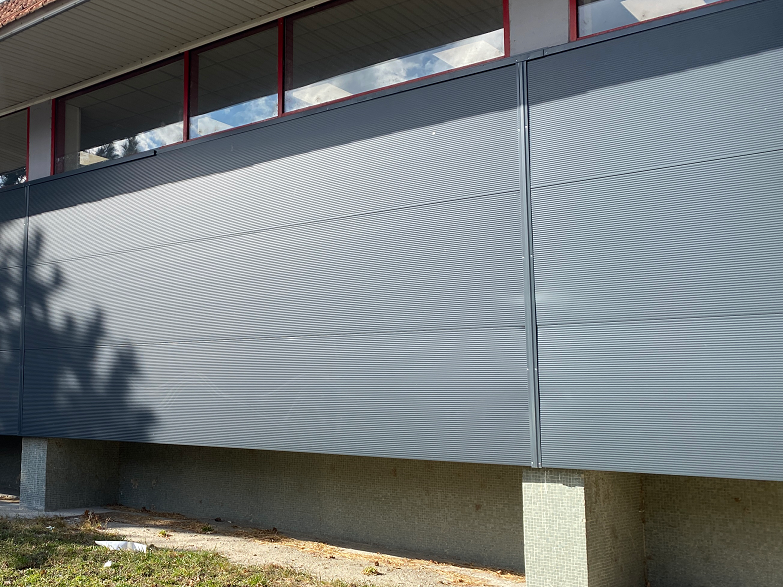

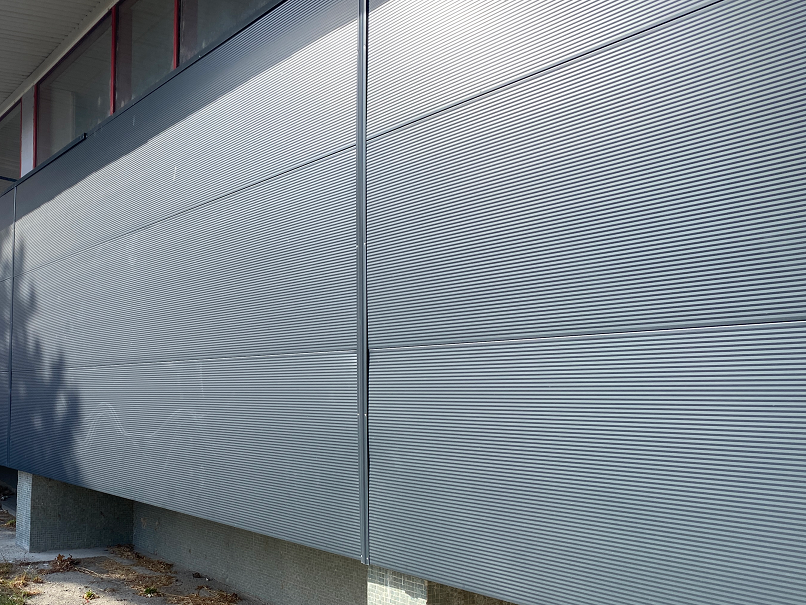

Photorealistic image PUR panel finish, grey
PUR panel joint (example on smooth anthracite PUR panel)
Product specifications
| Colour: | RAL9007 (grey) |
|---|---|
Profile: |
ribbed/micro-ribbed |
| Length: | 2 m and 6 m |
| Core thickness: | 30 mm (3 cm) |
| Insulating core: | Polyurethane (PUR) |
| Finish: | Smooth, durable surface suitable for outdoor use |
Ribbed / Micro-ribbed profile:
One side of the panel has micro-ribbing (15 mm wide ribs), while the other side has ribbing with 38 mm-wide ribs.
Illustration – side 1 – MICRO-RIBBED PROFILE
(Same panel, with a smooth anthracite.)
Illustration – side 2 – RIBBED PROFILE
(Same panel, with a smooth anthracite.)

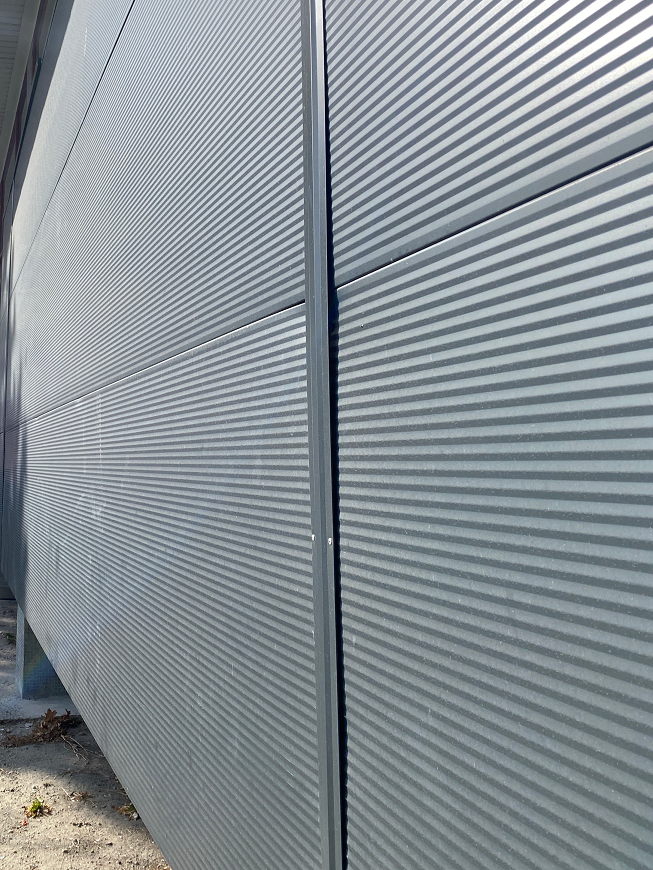

Micro-ribbed profile example
 |
 |
 |

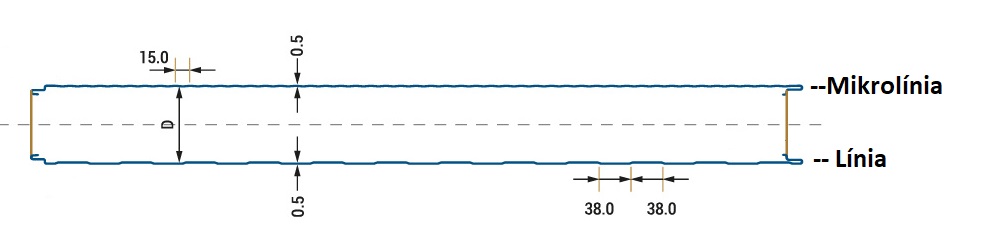

Drawings of possible profiles
