CAIS CHEVRON 2.5 – system for a double-leaf garage door up to 2.5 m / 220 kg


Product availability: within 3 days

We usually ship the goods within 3 days.

CAIS CHEVRON 2.5 – system for a double-leaf garage door up to 2.5 m / 220 kg CAIS CHEVRON 2.5 – system for a double-leaf garage door up to 2.5 m / 220 kg
CAIS-CHEVRON
within 3 days
€235.60 excluding VAT
€289.79 including VAT

 pcs
Weight
5,00 kg

Description of CAIS CHEVRON 2.5 – system for a double-leaf garage door up to 2.5 m / 220 kg

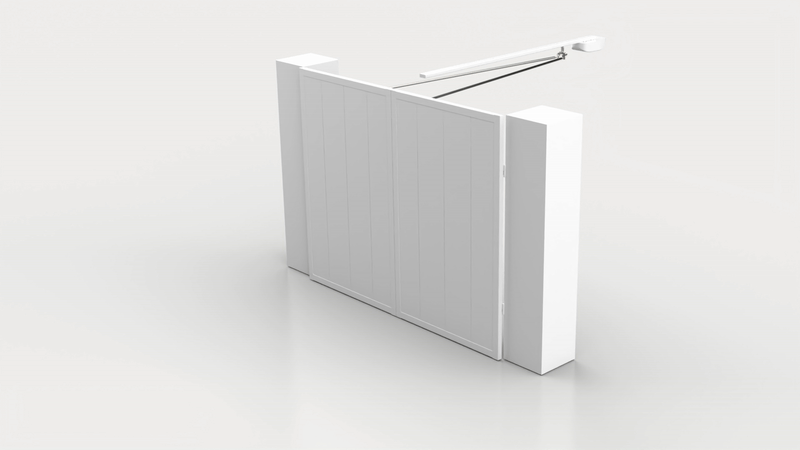

CAIS CHEVRON is hardware designed for automated operation of double-leaf garage doors with a maximum overall width of 2500 mm, height of up to 2500 mm and weight of up to 220 kg. The design is intended for double-leaf doors and is fully compatible with standard garage door operators.

Technical specifications:

  • Door type: double-leaf, opening outward
  • Max. door dimensions: 2500 mm (overall width) × 2500 mm (height)
  • Max. weight: 220 kg (total weight of both leaves)
  • Hardware material: steel (surface finish – hot-dip galvanized / optional)
  • Installation: to the garage frame or a metal/post support beam
  • Drive: compatible with electromechanical operators for swing gates

Installation:

  • A simple installation process requiring no special tools or welding
  • There is no need for complex fastening systems or excessive amounts of fasteners
  • Adjustable operation for smooth opening and closing

Installation video:

Installation manual
PDF
