CAIS Cantilever sliding gate kit 95x86x5 for a passage width of 4.5 m, perforated galvanized profile, KIT DEMO MZE 03
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
In stock
€803.40 including VAT
| Weight |
|---|
| 89 kg |
Description of CAIS Cantilever sliding gate kit 95x86x5 for a passage width of 4.5 m, perforated galvanized profile, KIT DEMO MZE 03
Component kit KIT DEMO MZE 03 for making a cantilever sliding gate with a clear opening width of up to 4.5 m/525kg. All kit components are galvanized.
| Set CAIS-DEMO-MZE-03 contains: | ||||
|---|---|---|---|---|
|
1 × | C-profile 95x86x5mm with holes for bolting, Zn, 6m | CAIS-STAGE-MZ-6 | |
|
A guide C-profile screwed to the bottom of the gate, allowing it to run on carriages anchored in a concrete foundation. Galvanized finish.
|
Details
|
|||
|
2 × | Trolley with 8 bearing rollers | CAIS-SPEED-ME | |
|
Galvanized steel trolley with 8 metal wheels. |
Details
|
|||
|
1 × | Lower guide ramp – for C-profile 95x86x5 | CAIS-RUN-M | |
|
The bottom guide ramp for a sliding gate slides into the C-profile and is secured to it with a clamping plate. The ramp engages with the bottom stop to take the weight off the gate when it is closed. |
Details
|
|||
|
1 × | Lower end stop for C-profile 95x86x5 | CAIS-LAST-M | |
|
Run-off pocket mounted at the bottom of the gate stop post. Relieves the compressive and tensile forces acting on the roller carriages when the gate is closed. |
Details
|
|||
|
1 × | 95x86x5 C-profile cap | CAIS-PILOT-MN | |
|
The end cap for a sliding gate C-profile is fitted at the start and, if required, at the end of the guide C-profile. It slides into the C-profile and is secured to it with a clamping plate. |
Details
|
|||
|
1 × | C-profile cover 95x86x5 with mounting to the guide rail | CAIS-PILOT-MR | |
|
The CAIS PILOT MR end cap for the sliding gate C-profile is installed at the beginning of the guide C-profile. The end cap is attached to the CAIS RUN M gate stop. |
Details
|
|||
|
1 × | Top guide with two rollers for sliding gates | CAIS-FRM2 | |
|
Gate guide for vertical stabilization of the gate in the transverse direction. |
Details
|
|||
|
1 × | Installation manual for a cantilever gate kit |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Set of screws and rivet nuts for mounting
Benefits and features of the CAIS-DEMO-MZE-03 kit
- Easy installation thanks to carefully designed details, and quick assembly because the C-profile is screwed to the structure, eliminating the need to weld it on.
- Fastening screws and rivet nuts are included for attaching the C-profile to the structure through the holes in the C-profile, spaced at least 400mm apart.
- The hot-dip galvanized C-profile (270g/m2), marked with a serial number and 100% tested with the trolley units, is made with pinpoint accuracy.
- High-quality bearings in the trolley units. The wheel centers in the trolley units are drilled, not laser-cut.
- Tested from -37°C to +50°C
- German steel. Japanese robots. Made in the Czech Republic.
Example of the CAIS-DEMO-MZE-03 kit's suitability for building a cantilever sliding gate

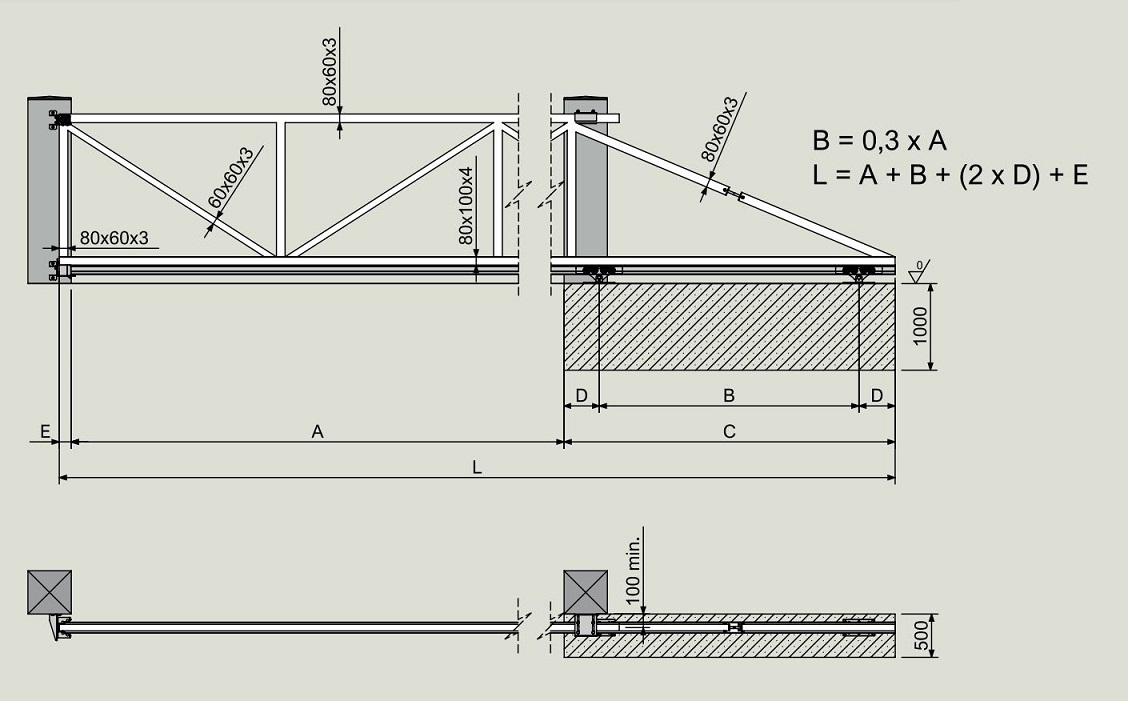

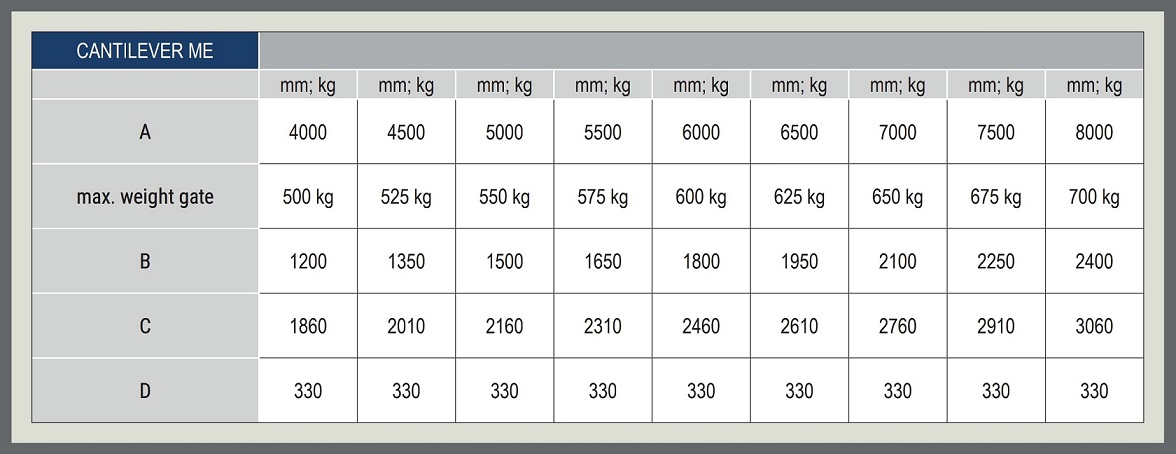

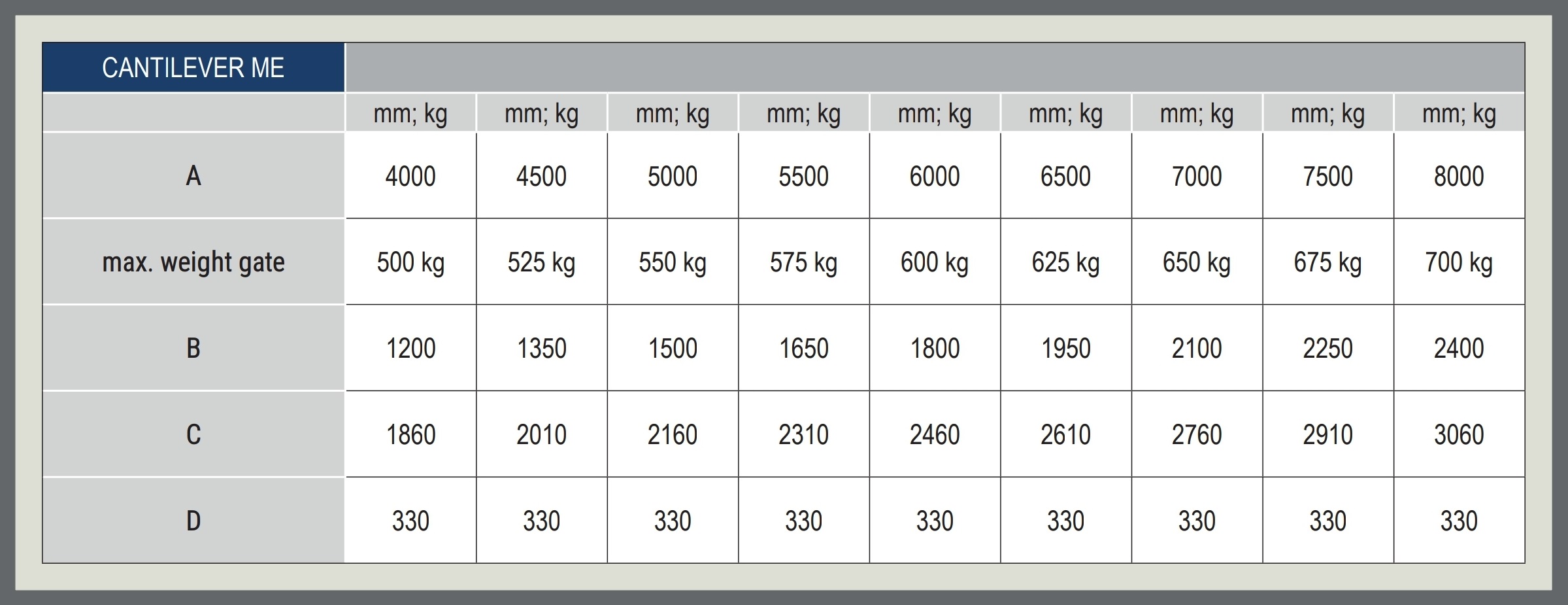

The kit is suitable for a clear opening width of up to 4.5 m and a total gate weight of 525 kg. The following drawing shows dimensions for illustrative clear opening widths, along with recommended structural profiles. The table below shows the dimensioned measurements for each clear opening width of a cantilever sliding gate.

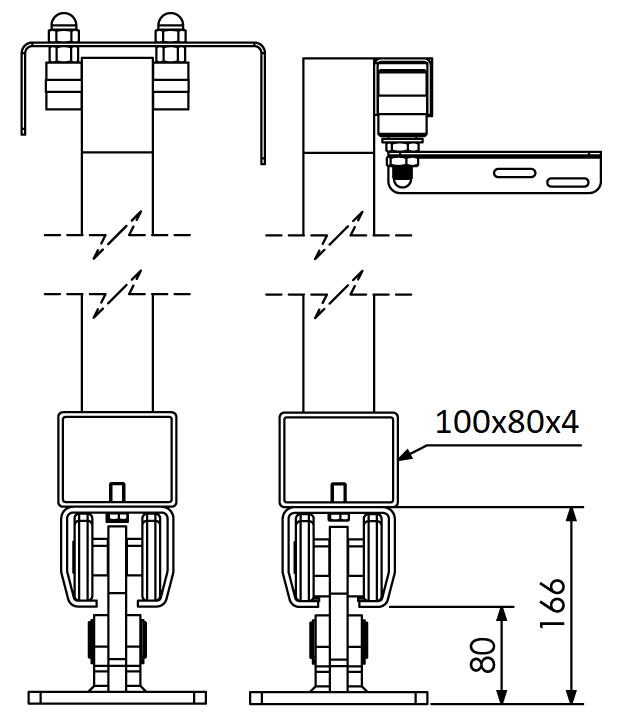

Cross-section of the gate with trolley units and guide
Original manufacturer's code: CAIS KIT DEMO MZE 03 1710038
