Aluminium corner connector for post profiles, 30x30mm
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
AL-RS70
in stock
in stock
€5.43 excluding VAT
€6.68 including VAT
€6.68 including VAT
| Weight |
|---|
| 0,16 kg |
Description of Aluminium corner connector for post profiles, 30x30mm
The corner connector is a component for joining aluminium post profiles of type AL-PS-SP70-6 and AL-PS-SP70-AS-6 at a 90° angle.
The projections and grooves on the connector ensure a precise, secure fit in the corner joint. It is made of durable aluminium, ensuring a long service life and corrosion resistance.
| Width: | 29.7 mm (for an opening in the profile measuring approx. 30 x 30 mm) |
|---|---|
| Length x height: | 88.4 x 88.4 mm |
| Material: | aluminium |
| For profiles: | AL-PS-SP70-6, AL-PS-SP70-AS-6 |
| Weight: | 0.1639 kg |

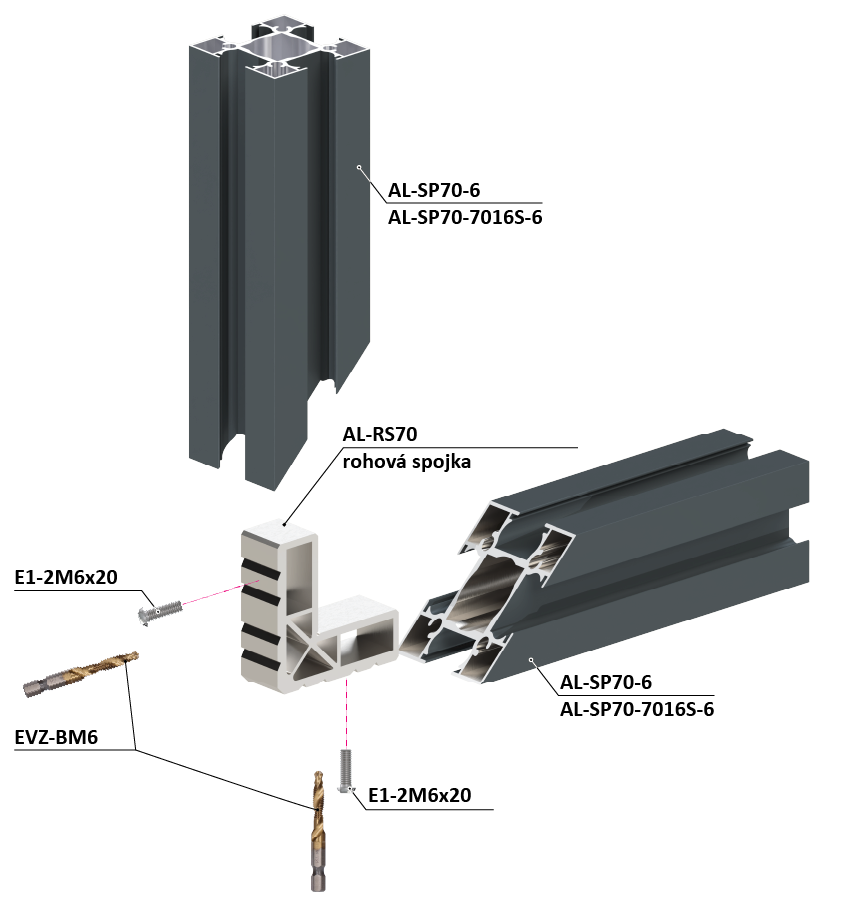

Installation: Insert the connector into the corner joint between the two profiles, drill the holes, then secure the connection with suitable screws.. This method ensures a strong, stable right-angle connection that can withstand higher mechanical loads.
