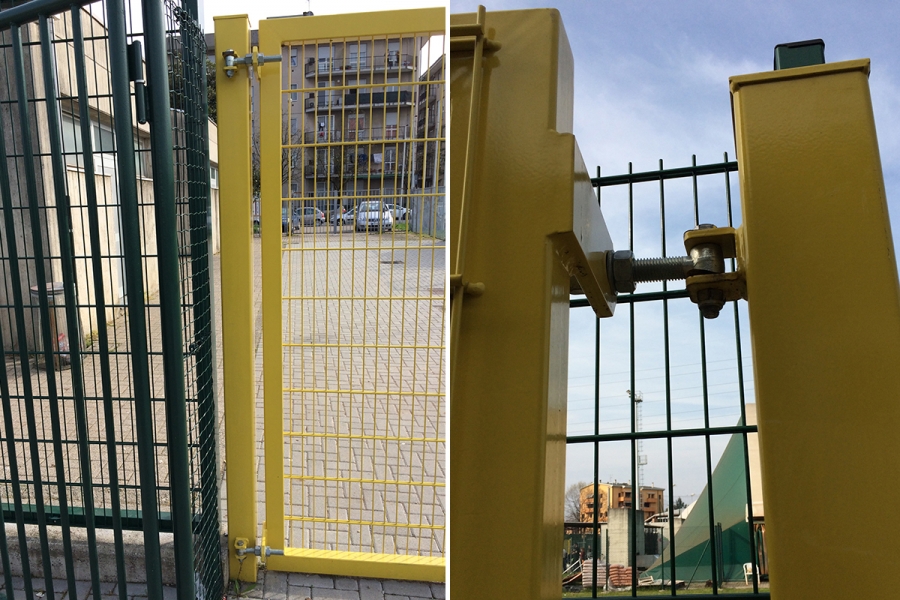

Adjustable weld-on hinge for opening up to 180°

Zn Iron

Product availability:	In stock	We normally dispatch goods within 24 hours.

C880-12
in stock

€10.43 excluding VAT
€12.82 including VAT

A [mm]	B [mm]	C [mm]	Ød [mm]	L [mm]	M [thread]	P [mm]	R [mm]	t [mm]	Weight
45	34,5	24	12	100	M12	23 – 36	43 – 87	6	0,50 kg

C880-16
in stock

€12.51 excluding VAT
€15.38 including VAT

A [mm]	B [mm]	C [mm]	Ød [mm]	L [mm]	M [thread]	P [mm]	R [mm]	t [mm]	Weight
45	41	27	14	118	M16	27 – 43	48 – 102	6	0,79 kg

C880-20
in stock

€19.36 excluding VAT
€23.81 including VAT

A [mm]	B [mm]	C [mm]	Ød [mm]	L [mm]	M [thread]	P [mm]	R [mm]	t [mm]	Weight
70	47	35	17	135	M20	37 – 62	64 – 116	8	1,50 kg

C880-24
in stock

€27.88 excluding VAT
€34.30 including VAT

A [mm]	B [mm]	C [mm]	Ød [mm]	L [mm]	M [thread]	P [mm]	R [mm]	t [mm]	Weight
70	50	35	20	153	M24	53 – 75	72 – 128	8	2,25 kg

Description of Adjustable weld-on hinge for opening up to 180°

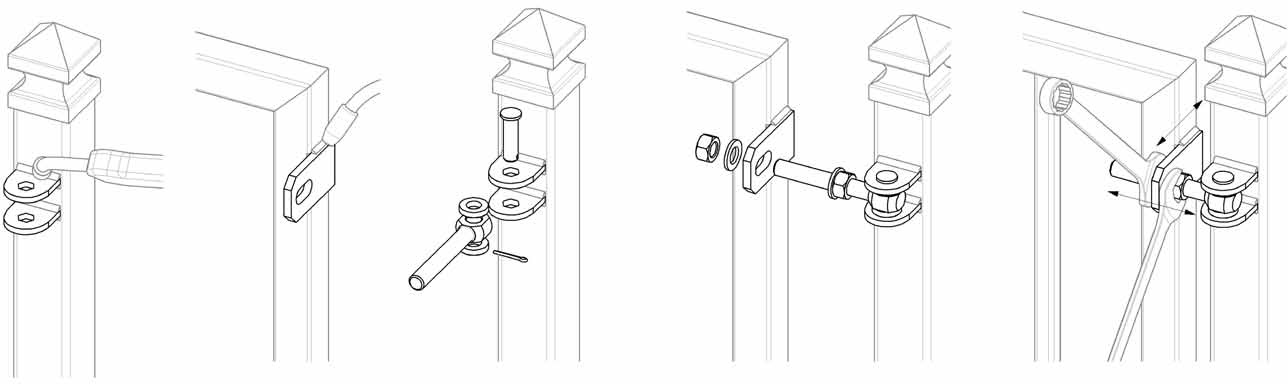

Weld the hinge head (2 × D-shaped pieces) onto the post.
Weld the hinge plate onto the gate.
Insert the non-rotating pin into the hinge head on the post and secure it with an Allen key.
Then position the gate leaf with the welded-on plate, tighten the nuts, adjust the leaf so it is level, and enjoy opening it up to 180° with ease.
