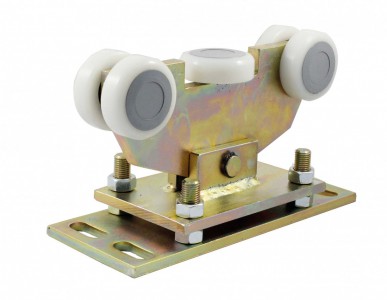

Adjustable swing trolley, 5 rollers, with mounting plate B
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
| Available variant types for this product Adjustable swing trolley, 5 rollers, with mounting plate B | ||
| Roller type: |
You can choose the rollers nylon or metal. Nylon rollers allow the gate to carry a heavy load, prevent wear on the C-profile and ensure quiet gate operation. |
|
|---|---|---|
|
Nylon
rollers Metal
rollers |
||
€100.43 including VAT
| A [mm] |
B [mm] |
C [mm] |
Hmin [mm] |
Hmax [mm] |
Weight |
|---|---|---|---|---|---|
| 80 | 80 | 5 | 93 | 109 | 9,20 kg |
Description of Adjustable swing trolley, 5 rollers, with mounting plate B
Adjustable pivoting carriage for sliding gates.
- Variant V-11-1 fits C-profile 80x80x5 mm FE and C-profile 80x80x5 mm ZN as well as C-profile 76x76x3 mm INOX (nylon rollers only)
Option to adjust the carriage allows you to "fine-tune" the gate's inclination and thus ensure smooth operation (also in relation to the terrain or the slope across the passage).
The carriage's pivoting action ensures that the gate's weight/pressure is distributed evenly across all the bearing rollers on the carriages at every point in the gate's movement.
For your project, you can choose a version with nylon or metal rollers (only available with the version for C-profile 80x80x5). For quiet gate operation, we recommend the version with nylon rollers.
All discounted cantilever gate kits.
Carriage mounting plate dimensions
| A[mm] | B[mm] | C[mm] | D[mm] | Overall carriage length including bearings[mm] |
|---|---|---|---|---|
| 300 | 120 | 150 | 250 | 300 / 290 (bearings at the top) |
 |
||||
Anchoring the support carriages for a cantilever gate:
The support carriages can be anchored:
- using threaded rods which you cast directly into the foundation
- using threaded rods chemically bonded into a cured concrete foundation
- using hammer-in anchors into a cured concrete foundation
The narrowest dimension of the holes in the mounting plates is 17mm, and they are anchored using M16. All methods are suitable; it depends on which one you have had the best experience with.
