Adjustable screw-on hinge with lock nut - INOX
INOX| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
P378-16-INOX
in stock
in stock
€25.79 excluding VAT
€31.72 including VAT
€31.72 including VAT
| M [thread] |
Ød [mm] |
A [mm] |
Q [mm] |
P [mm] |
L [mm] |
Weight |
|---|---|---|---|---|---|---|
| 16 | 10,5 | 30 | 55 | 80 | 55-80 | 0,60 kg |
P378-20-INOX
in stock
in stock
€25.74 excluding VAT
€31.66 including VAT
€31.66 including VAT
| M [thread] |
Ød [mm] |
A [mm] |
Q [mm] |
P [mm] |
L [mm] |
Weight |
|---|---|---|---|---|---|---|
| 20 | 10,5 | 30 | 75 | 100 | 60-90 | 0,80 kg |
Description of Adjustable screw-on hinge with lock nut - INOX

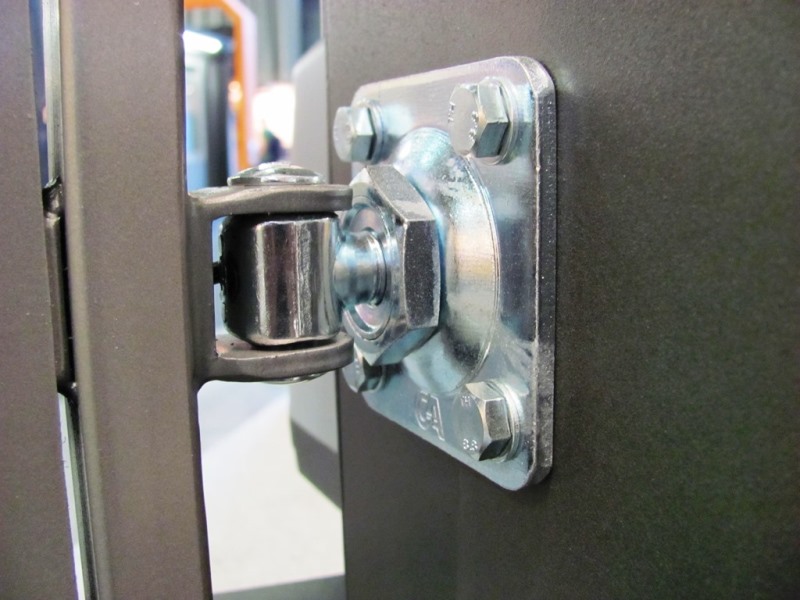

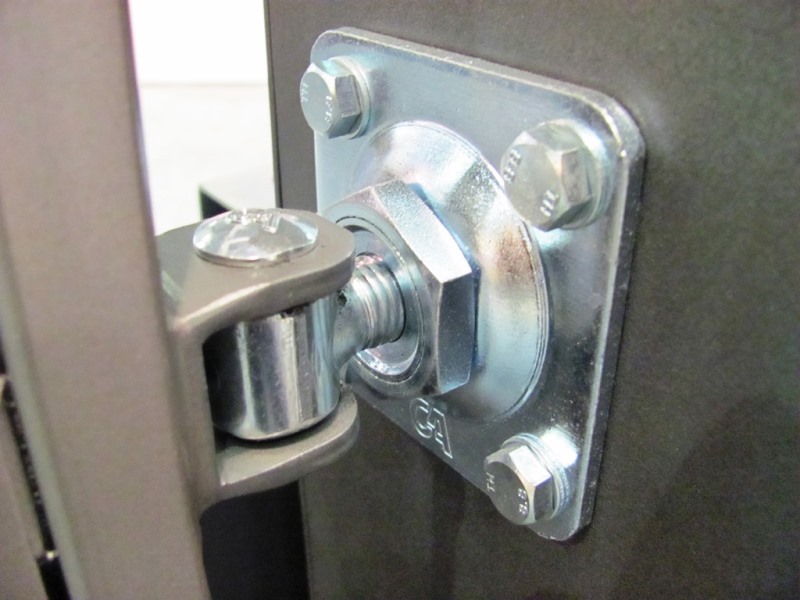

Adjustable hinge with a square mounting plate and locknut. The plate is designed for anchoring to a masonry or concrete post.
The hinge can be adjusted using a rotating nut. This adjustment lets you fine-tune the gate leaf's offset from the post after installation. If the post the hinge is anchored to shifts over time (for example, due to frost), simply turn the nut with a wrench and adjust the hinges so the gate leaves are parallel.
The part of the hinge that is welded to the gate is removable using an Allen screw (see drawing).
Hinge material: AISI 304 stainless steel,
Hinge installation:
