U-shaped anchor foot with rebar


Product availability: In stock

We normally dispatch goods within 24 hours.

U-shaped anchor foot with rebar U-shaped anchor foot with rebar
TK-81P14
in stock
€4.21 excluding VAT
€5.18 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
60 60 16 0,93 kg
TK-81P1
in stock
€5.23 excluding VAT
€6.43 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
80 80 16 1,12 kg
TK-81P2
in stock
€6.28 excluding VAT
€7.72 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
100 100 16 1,42 kg
TK-81P3
in stock
€8.90 excluding VAT
€10.95 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
120 120 20 1,91 kg
TK-81P9
in stock
€8.28 excluding VAT
€10.19 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
140 120 20 1,93 kg

Description of U-shaped anchor foot with rebar

Static welded anchor post base with holes is used to anchor timber posts or pillars under compressive loads to a base using chemical anchors, or by casting into concrete.

Use 4 mm convex nails or 12 mm diameter bolts to fasten the pillar. The available diameters of the rebar anchor rod are 16 and 20 mm.

The pillar base is hot-dip galvanized.

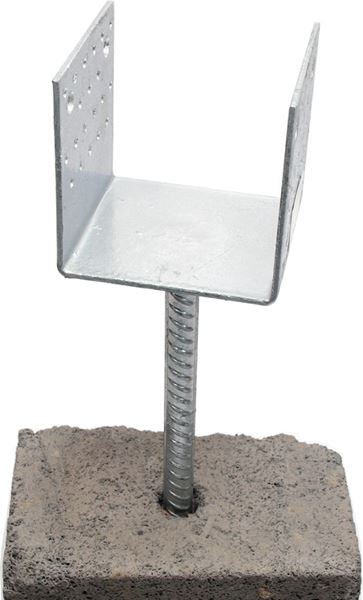

Example of using a U-shaped anchor post base with a rebar rod

Example of using a U-shaped anchor post base with a rebar rod

Technical specifications of the U-shaped anchor post base with a rebar rod

Material: steel
Finish: hot-dip galvanizing
Rebar rod: 16 or 20 mm
Available sizes: 60x60, 80x80, 100x100, 120x120, 140x120

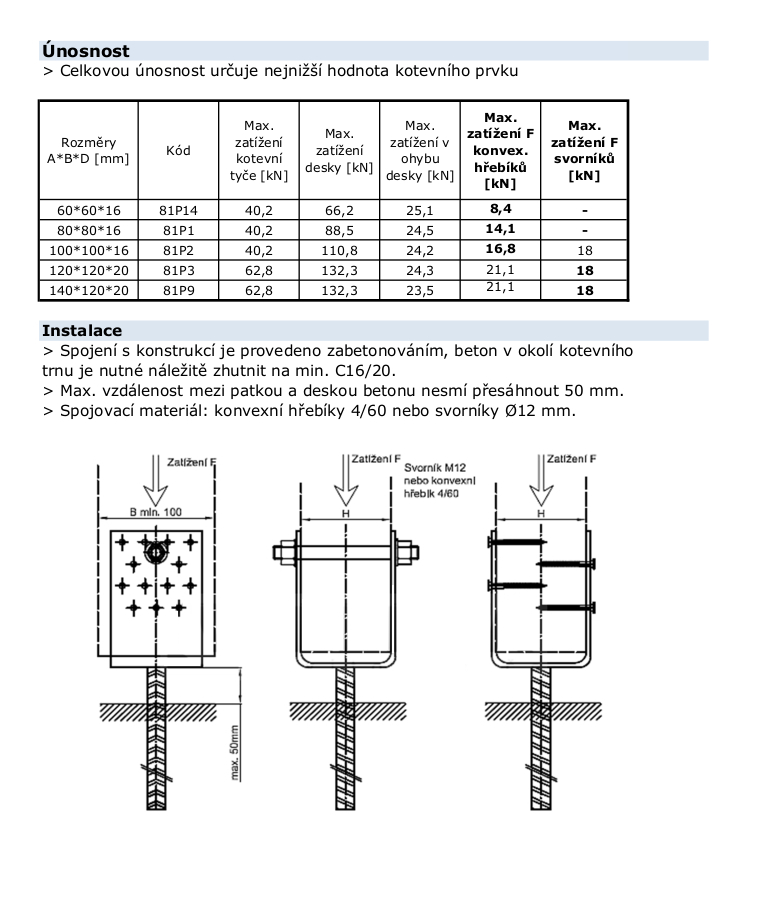

Load capacity of the U-shaped anchor post base with a rebar rod

The base is designed to withstand compression or bending; its overall load capacity is determined by the lower load capacity of the anchoring components. The nail or bolt connection is structural.

Recommended fasteners include convex nails 4x60mm, or 12 mm diameter bolts. Cast into the base or fasten using a chemical anchor. The anchor post base is designed to anchor timber posts and pillars under compressive loads to a horizontal load-bearing structure.

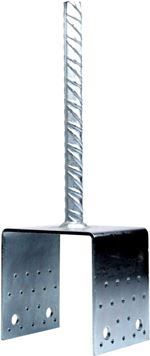

U-shaped anchor post base with a rebar rod

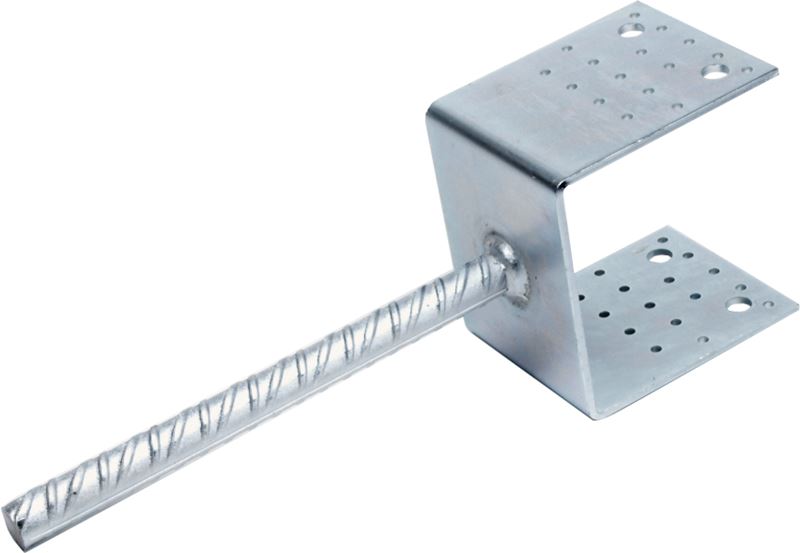

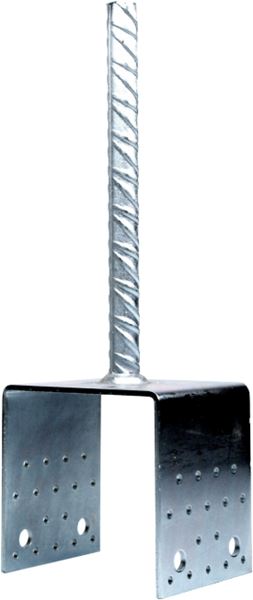

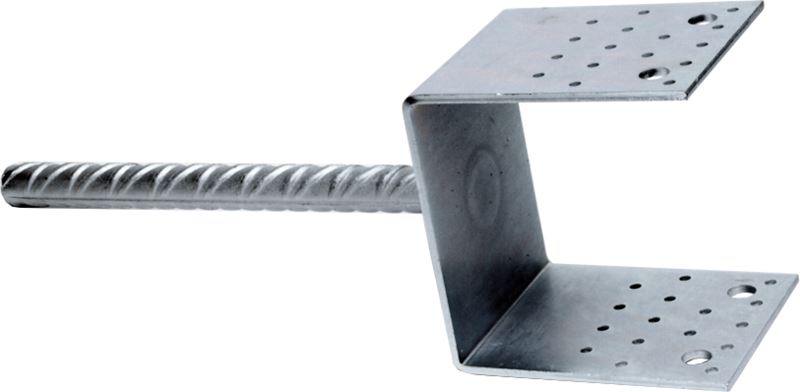

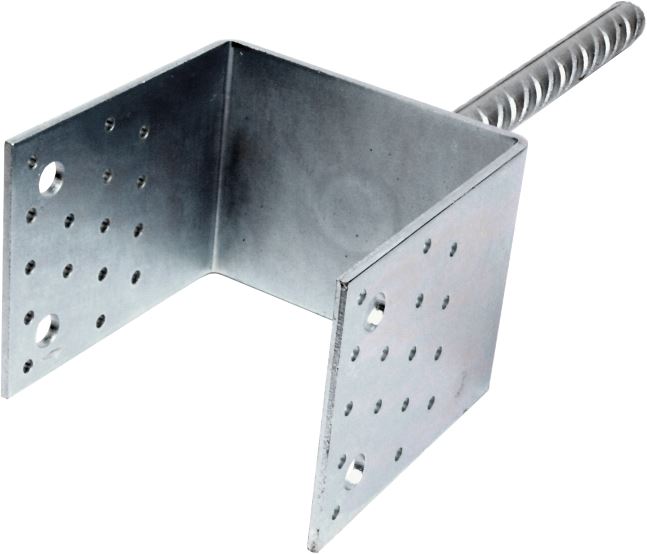

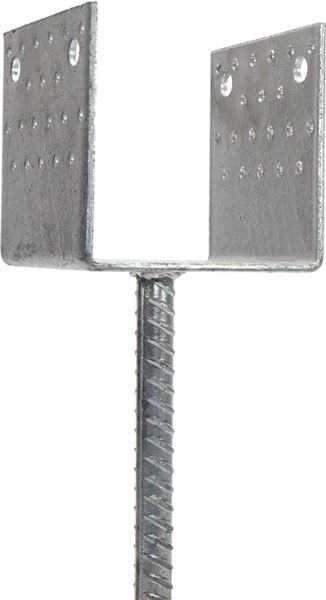

Photo gallery of the U-shaped anchor post base with a rebar rod

U-shaped anchor post base with a rebar rod U-shaped anchor post base with a rebar rod U-shaped anchor post base with a rebar rod
U-shaped anchor post base with a rebar rod U-shaped anchor post base with a rebar rod U-shaped anchor post base with a rebar rod
