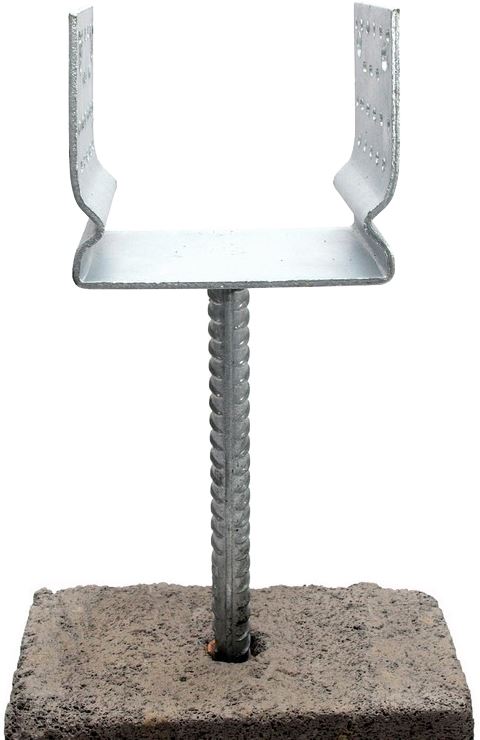

U-shaped anchor foot with a pressed rib and rebar


Product availability: In stock

We normally dispatch goods within 24 hours.

U-shaped anchor foot with a pressed rib and rebar U-shaped anchor foot with a pressed rib and rebar
TK-81P15
in stock
€4.47 excluding VAT
€5.50 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
60 60 16 0,94 kg
TK-81P10
in stock
€5.66 excluding VAT
€6.96 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
80 80 16 1,21 kg
TK-81P11
in stock
€6.68 excluding VAT
€8.22 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
100 100 16 1,50 kg
TK-81P12
in stock
€8.79 excluding VAT
€10.81 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
120 120 20 2,02 kg
TK-81P13
in stock
€9.09 excluding VAT
€11.18 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
140 120 20 2,16 kg

Description of U-shaped anchor foot with a pressed rib and rebar

Static, welded anchor base with holes is suitable for anchoring timber posts or columns under compressive load to a substrate using a chemical anchor, or casting into concrete.

Use 4 mm diameter convex-head nails or 12 mm diameter bolts to fasten the column. The available diameters of the rebar anchoring rod are 16 and 20 mm.

The anchor base is hot-dip galvanized.

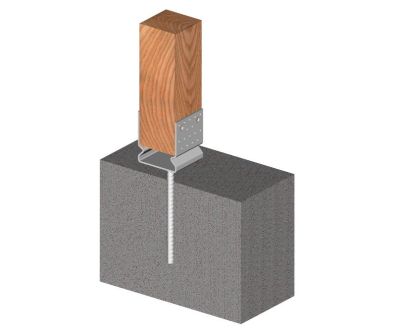

Example of use: U-shaped anchor base with an embossed rib and rebar rod

Example of use: U-shaped anchor base with an embossed rib and rebar rod

Technical specifications of the U-shaped anchor base with an embossed rib and rebar rod

Material: steel
Surface finish: hot-dip galvanizing
Rebar rod: 16 or 20 mm
Available sizes: 60x60, 80x80, 100x100, 120x120, 140x120

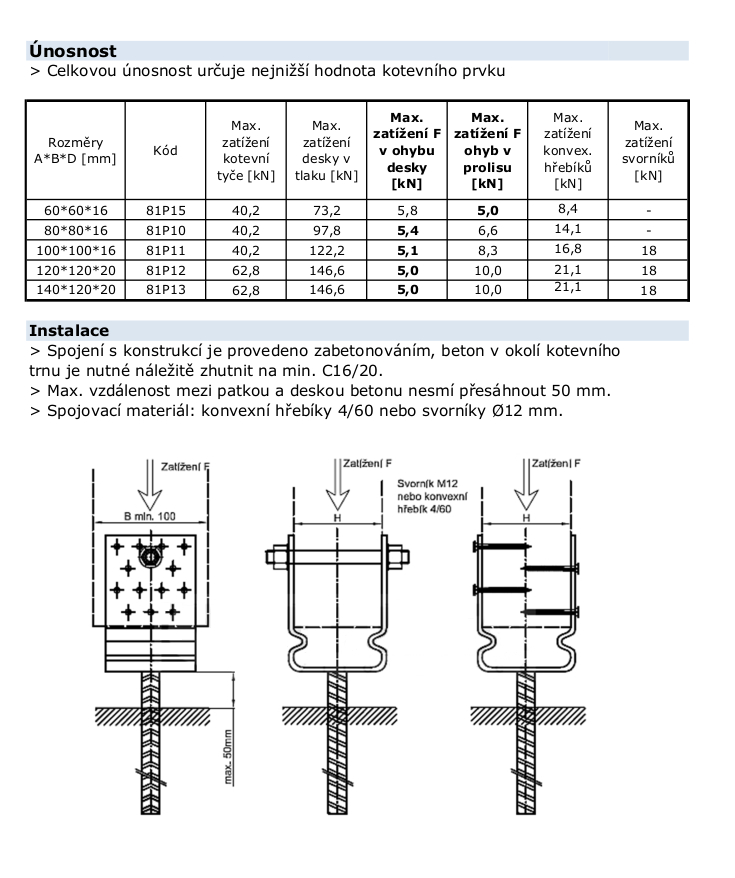

Load capacity of the U-shaped anchor base with an embossed rib and rebar rod

The base is designed to withstand compression or bending; its overall load capacity is determined by the lower load capacity of the anchoring element. The nail or bolt connection is structural.

Recommended fasteners: convex-head nails 4x60mm, or 12 mm diameter bolts. Cast into the substrate or fasten with a chemical anchor. The anchor base is designed for anchoring timber posts and columns under compressive load to a horizontal load-bearing structure.

U-shaped anchor base with an embossed rib and rebar rod

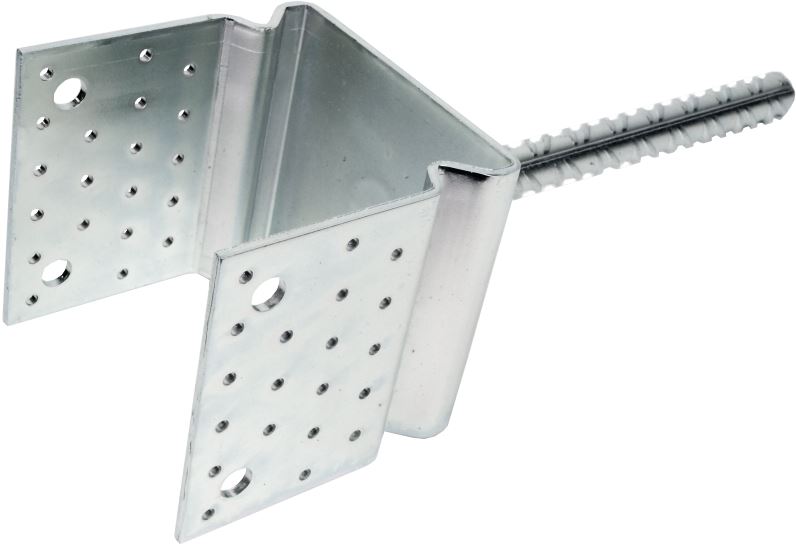

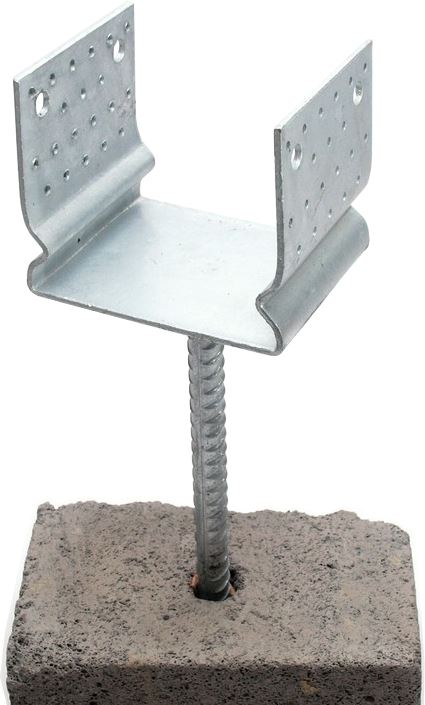

Photo gallery of the U-shaped anchor base with an embossed rib and rebar rod

U-shaped anchor base with an embossed rib and rebar rod U-shaped anchor base with an embossed rib and rebar rod U-shaped anchor base with an embossed rib and rebar rod
