U-shaped anchor base plate, 60 mm, with rebar


Product availability: In stock

We normally dispatch goods within 24 hours.

U-shaped anchor base plate, 60 mm, with rebar U-shaped anchor base plate, 60 mm, with rebar
TK-81P27
in stock
€3.96 excluding VAT
€4.88 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
60 60 18 0,82 kg
TK-81P28
in stock
€4.03 excluding VAT
€4.96 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
70 60 18 0,79 kg
TK-81P4
in stock
€4.39 excluding VAT
€5.40 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
80 60 18 0,87 kg
TK-81P29
in stock
€4.67 excluding VAT
€5.74 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
90 60 18 0,89 kg
TK-81P5
in stock
€4.39 excluding VAT
€5.40 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
100 60 18 0,94 kg
TK-81P6
in stock
€4.43 excluding VAT
€5.45 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
120 60 18 0,94 kg
TK-81P26
in stock
€4.29 excluding VAT
€5.28 including VAT

 pcs
A
[mm]		 B
[mm]		 Ød
[mm]		 Weight
140 60 18 1,03 kg

Description of U-shaped anchor base plate, 60 mm, with rebar

Static welded anchor base with holes is used to anchor wooden posts or pillars subject to compression to a substrate using chemical anchors, or by casting into concrete.

Bolts with diameters of 10 and 12 mm are used to fasten the pillar. The diameter of the rebar anchoring rod is 18 mm.

The anchor base is hot-dip galvanized.

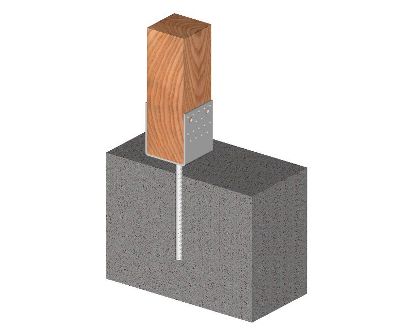

Example of the U-shaped 60 mm anchor base with rebar in use

Example of the U-shaped 60 mm anchor base with rebar in use

Technical specifications of the U-shaped 60 mm anchor base with rebar

Material: steel
Surface finish: hot-dip galvanizing
Rebar: 16 or 20 mm
Available sizes: width 60
thickness 60, 70, 80, 90, 100, 120, 140

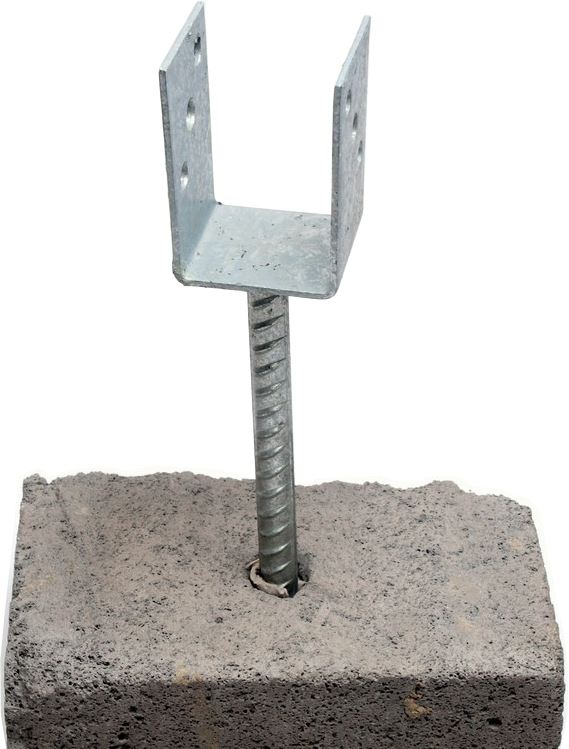

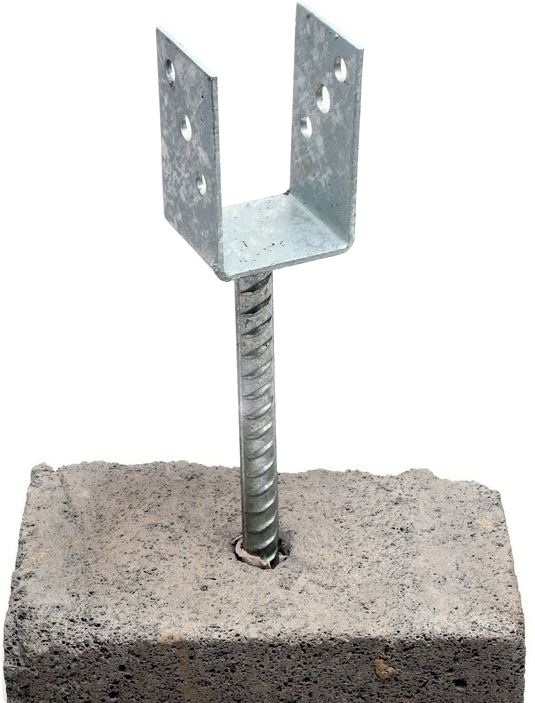

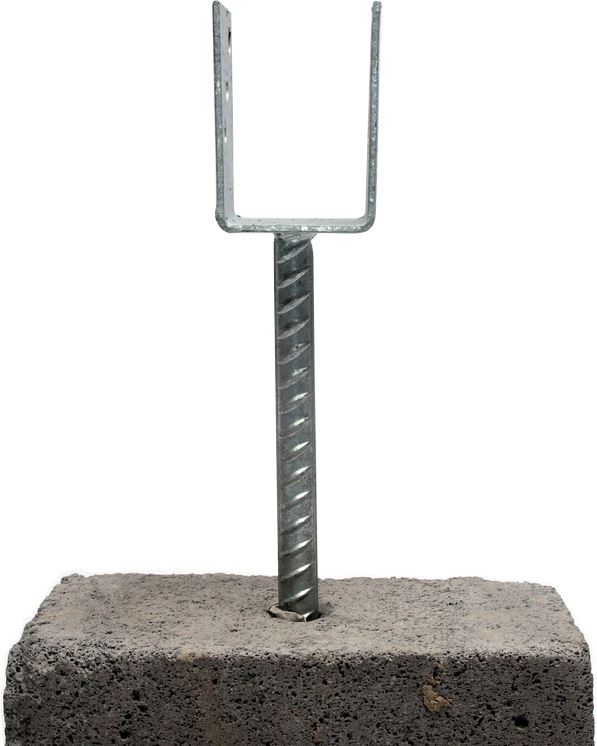

Photo gallery of the U-shaped 60 mm anchor base with rebar

U-shaped 60 mm anchor base with rebar U-shaped 60 mm anchor base with rebar U-shaped 60 mm anchor base with rebar

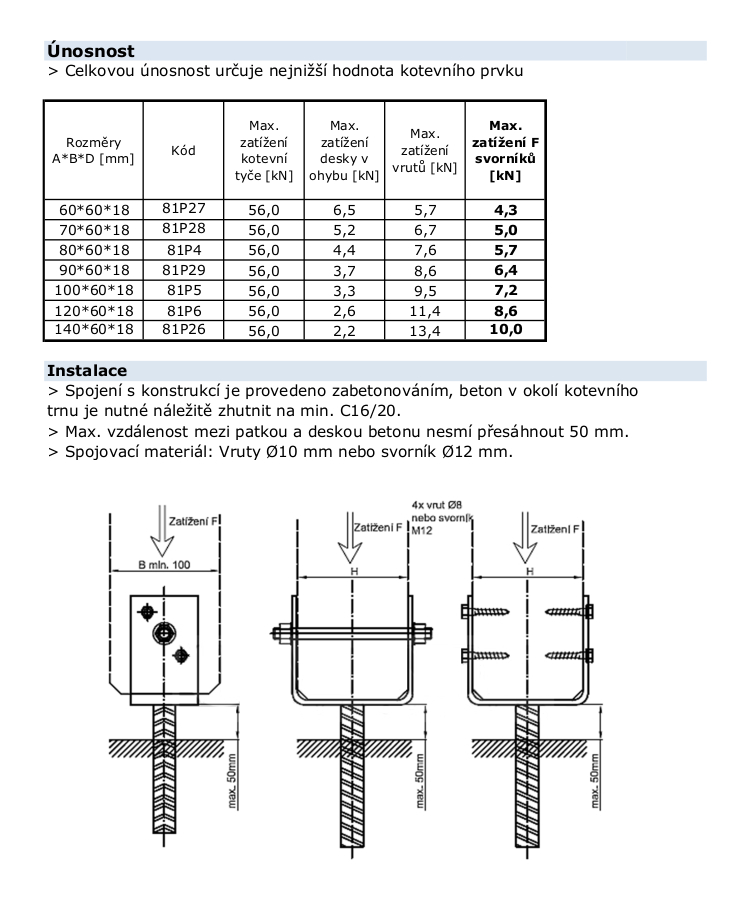

Load capacity and installation

U-shaped 60 mm anchor base with rebar
