Square mounting bracket

Product availability:	In stock	We normally dispatch goods within 24 hours.

TK-81B1
in stock

€8.45 excluding VAT
€10.39 including VAT

H [mm]	B [mm]	L [mm]	With [mm]	Weight
70	70	150	2	1,70 kg

TK-81B2
in stock

€12.64 excluding VAT
€15.54 including VAT

H [mm]	B [mm]	L [mm]	With [mm]	Weight
90	90	150	2	2,00 kg

TK-81B3
in stock

€10.08 excluding VAT
€12.39 including VAT

H [mm]	B [mm]	L [mm]	With [mm]	Weight
100	100	150	2	2,05 kg

TK-81B6
in stock

€14.96 excluding VAT
€18.40 including VAT

H [mm]	B [mm]	L [mm]	With [mm]	Weight
120	120	150	2	2,82 kg

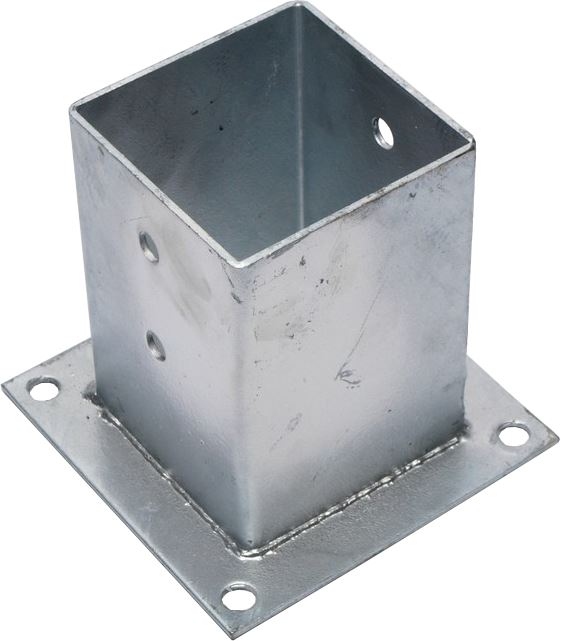

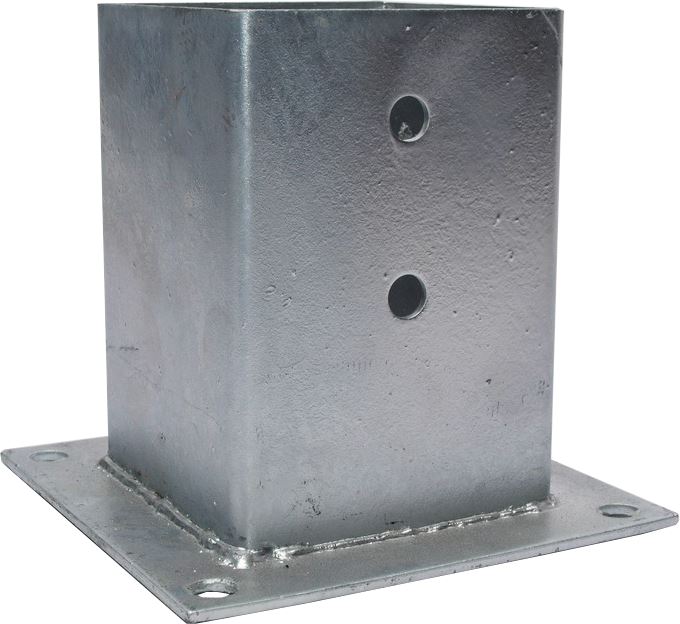

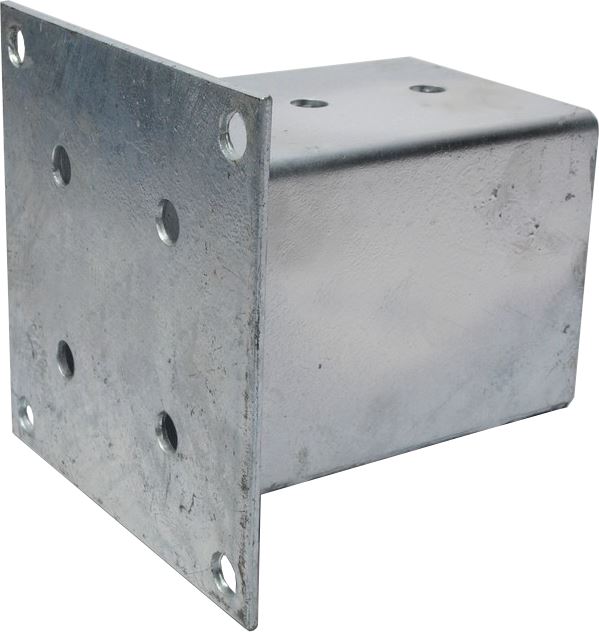

Description of Square mounting bracket

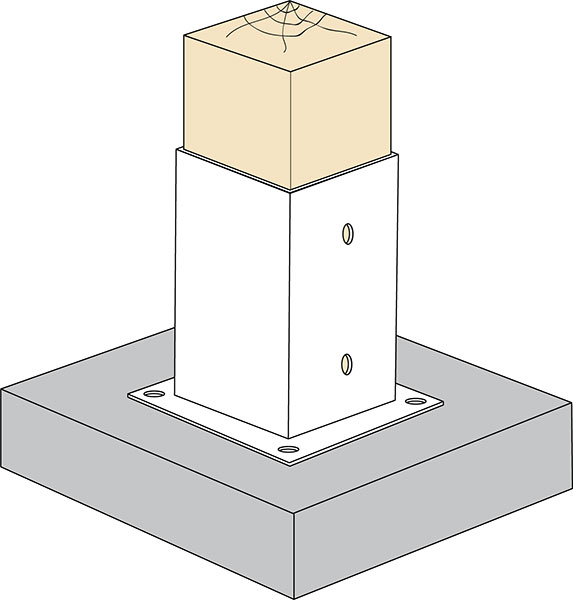

Static welded column anchor base is suitable for anchoring compressed wooden posts or beams to a base using steel anchors or screws.

The column is fastened using 11 mm diameter holes.

The column base is hot-dip galvanized.

Material:	S235JR steel
Surface finish:	hot-dip galvanizing, min. 275g/m2
Sleeve wall thickness:	2 mm
Sleeve height:	150 mm
Holes in the sleeve:	4x11 mm
Load capacity:	for timber buildings without concrete roof tiles
