Round mounting bracket
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
TK-81B4
in stock
in stock
€7.93 excluding VAT
€9.75 including VAT
€9.75 including VAT
| Ød [mm] |
L [mm] |
With [mm] |
Weight |
|---|---|---|---|
| 80 | 150 | 2 | 1,55 kg |
TK-81B5
in stock
in stock
€9.67 excluding VAT
€11.90 including VAT
€11.90 including VAT
| Ød [mm] |
L [mm] |
With [mm] |
Weight |
|---|---|---|---|
| 100 | 150 | 2 | 1,78 kg |
Description of Round mounting bracket
Static welded post anchor base is suitable for anchoring compression-loaded wooden posts or round pillars to a base using steel anchors or screws.
The post is secured using 11 mm diameter holes.
The post base is hot-dip galvanized.

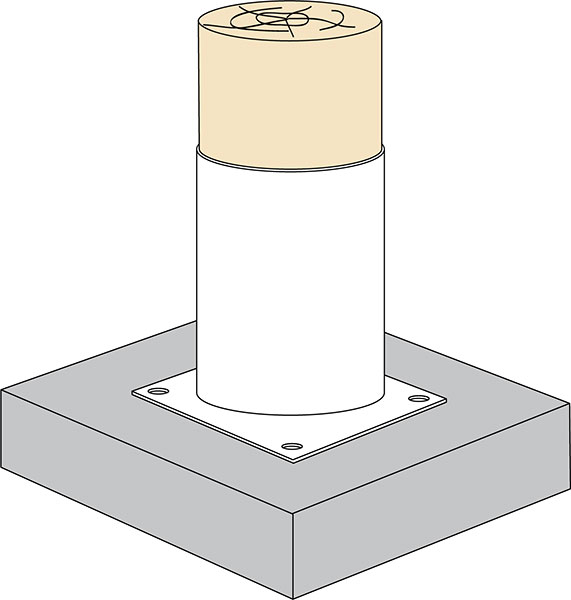

Example of how to use a round anchor bracket
Technical specifications of the round anchor bracket
| Material: | S235JR steel |
|---|---|
| Surface finish: | hot-dip galvanizing, min. 275g/m2 |
| Sleeve wall thickness: | 2 mm |
| Sleeve height: | 150 mm |
| Holes in sleeve: | 4x11 mm |
| Load capacity: | for timber buildings without a concrete roof covering |

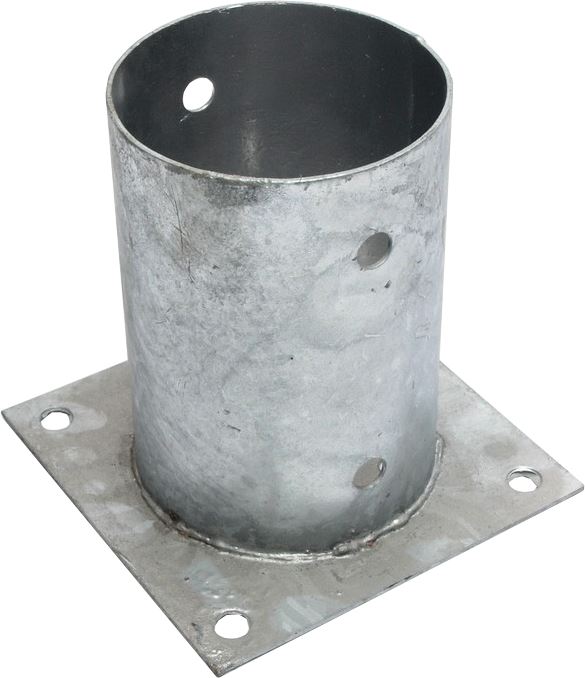

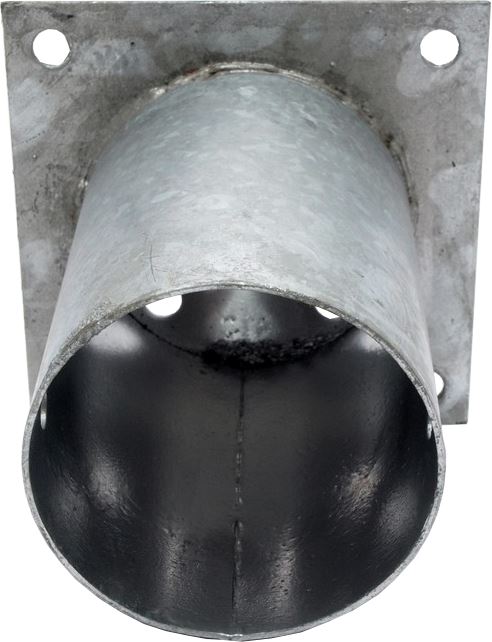

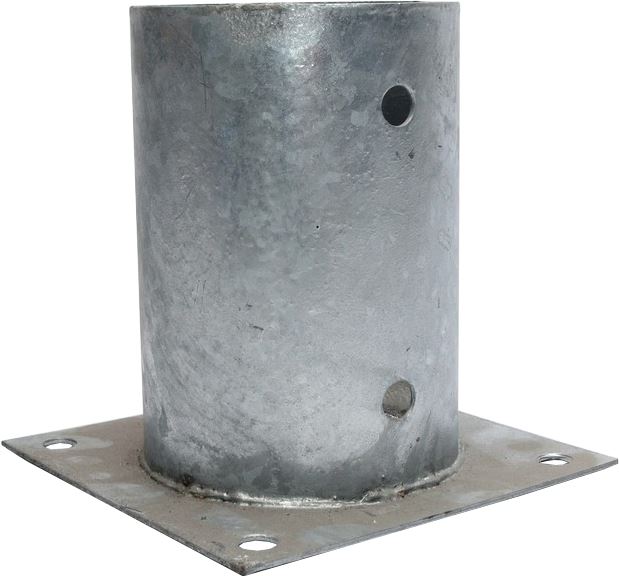

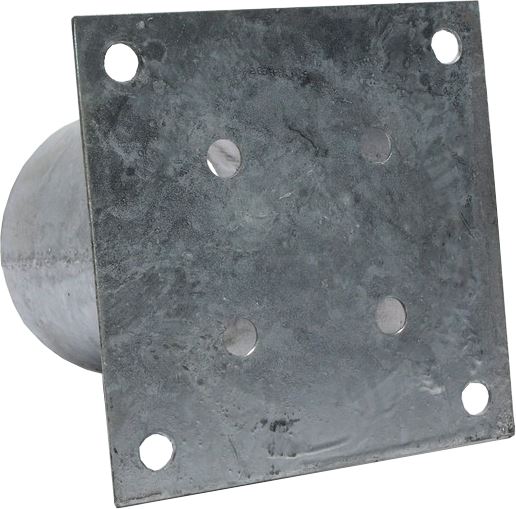

Photo gallery of the round anchor bracket
 |
 |
 |
 |

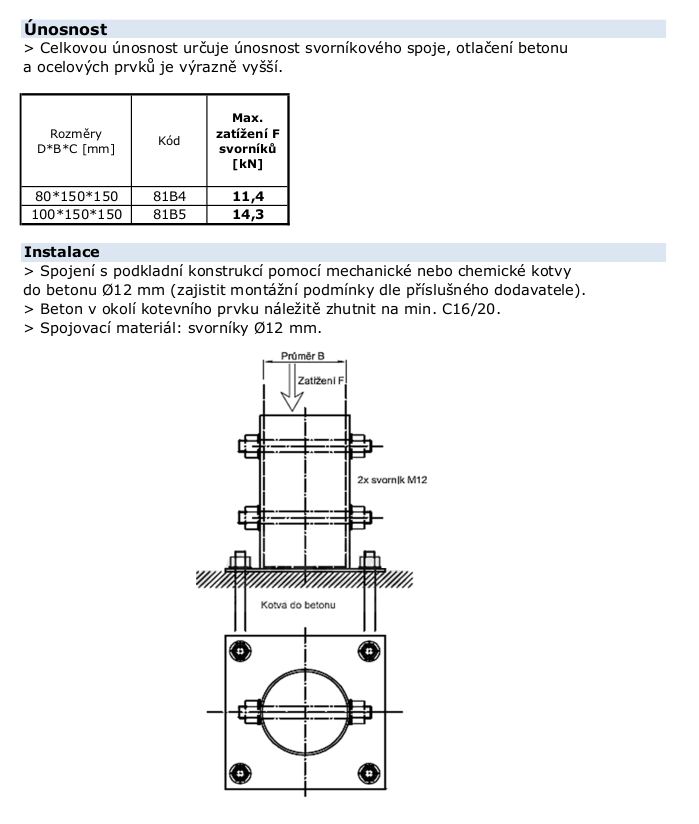

Load capacity and installation
