Post base with nut
TOP| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
TK-81PP4
in stock
in stock
€8.02 excluding VAT
€9.87 including VAT
€9.87 including VAT
| Weight |
|---|
| 1,57 kg |
Description of Post base with nut
Height-adjustable post base Thanks to its adjustable nut, it is suitable for anchoring a timber structure to a substrate where not all anchor points are at the same level. The post base is electro-galvanized.
Technical specifications of the post base
| Material: | steel |
|---|---|
| Surface finish: | electro-galvanizing |
| Threaded rod: | M20 |
| Base plate: | 4 mm thick, 160x100 mm, 12.5 mm diameter holes |
| Top plate: | 4 mm thick, 100x100 mm, 11 mm diameter holes |
| Height adjustment | 140-190 mm |

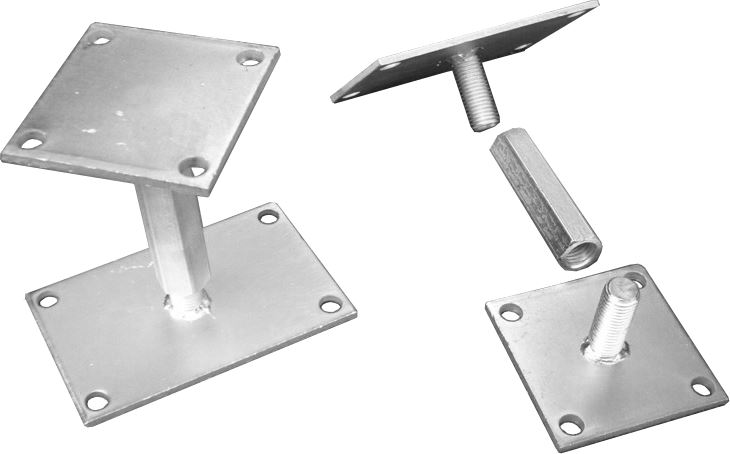

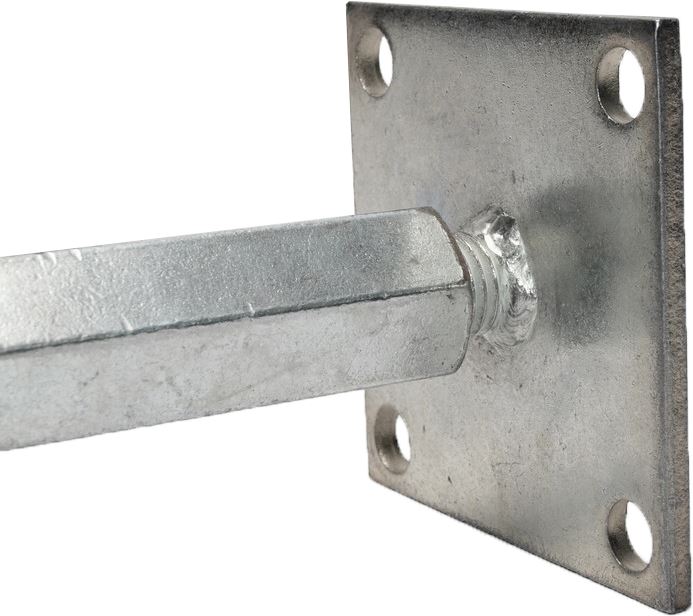

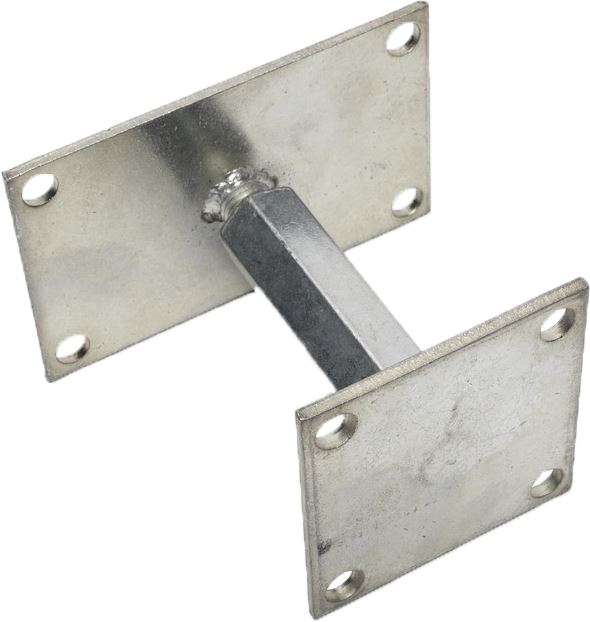

Photo gallery of the post base with adjustable nut
 |
 |
 |

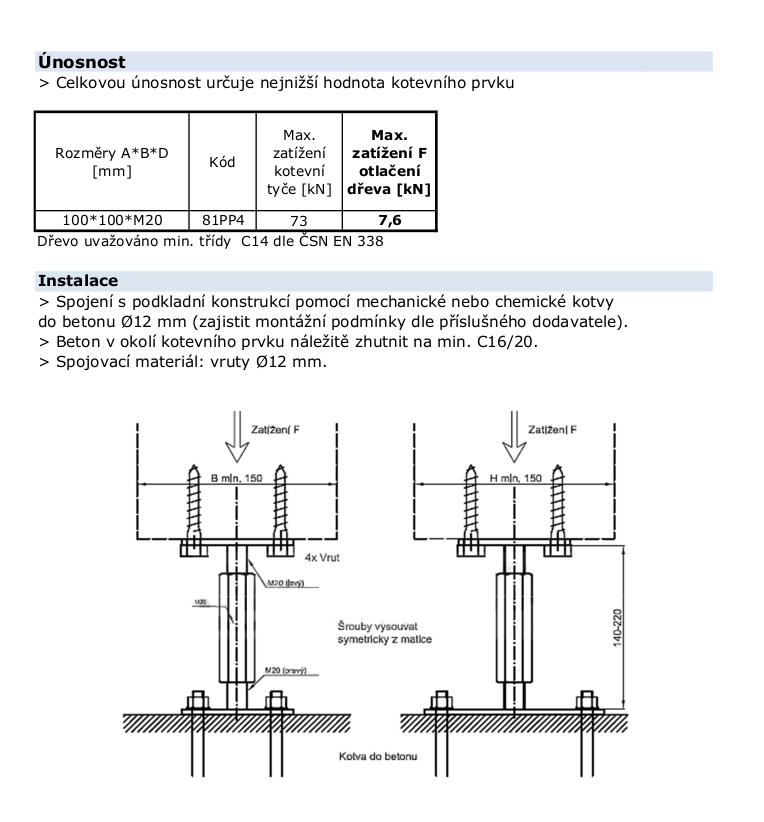

Load capacity and installation
