Post base with a free top plate
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€4.37 including VAT
| A [mm] |
H [mm] |
M [thread] |
Bottom plate [mm×mm] |
Weight |
|---|---|---|---|---|
| 80 | 100 | M16 | 80×80 | 0,51 kg |
in stock
€4.75 including VAT
| A [mm] |
H [mm] |
M [thread] |
Bottom plate [mm×mm] |
Weight |
|---|---|---|---|---|
| 80 | 160 | M16 | 80×80 | 0,58 kg |
in stock
€6.01 including VAT
| A [mm] |
H [mm] |
M [thread] |
Bottom plate [mm×mm] |
Weight |
|---|---|---|---|---|
| 80 | 200 | M20 | 110×110 | 0,97 kg |
in stock
€12.07 including VAT
| A [mm] |
H [mm] |
M [thread] |
Bottom plate [mm×mm] |
Weight |
|---|---|---|---|---|
| 80 | 200 | M24 | 110×110 | 1,17 kg |
in stock
€9.77 including VAT
| A [mm] |
H [mm] |
M [thread] |
Bottom plate [mm×mm] |
Weight |
|---|---|---|---|---|
| 80 | 250 | M24 | 110×110 | 1,31 kg |
in stock
€9.34 including VAT
| A [mm] |
H [mm] |
M [thread] |
Bottom plate [mm×mm] |
Weight |
|---|---|---|---|---|
| 110 | 200 | M24 | 110×110 | 1,35 kg |
in stock
€11.29 including VAT
| A [mm] |
H [mm] |
M [thread] |
Bottom plate [mm×mm] |
Weight |
|---|---|---|---|---|
| 110 | 250 | M24 | 110×110 | 1,53 kg |
Description of Post base with a free top plate
|
Static welded two-piece post anchor base with adjustable height is suitable for anchoring timber posts or pillars to a substrate using steel anchors or screws with a diameter of 10 mm.
The following fasteners can be used to attach the post: convex nails with a diameter of 4 mm, or screws with a diameter of 10 mm. Available threaded rod diameters: M16, M20 and M24.
The post base is electro-galvanized. |
 |
Overview of sizes for post anchor bases with a separate top plate
| Threaded rod | Height | Top plate 80x80 | Top plate 110x110 | |
|---|---|---|---|---|
| M16 | 100 | TK-81PP14 | — | — |
| 160 | TK-81PP16 | — | — | |
| M20 | 200 | — | TK-81PP12 | — |
| M24 | 200 | — | TK-81PP6 | TK-81PP7 |
| 250 | — | TK-81PP10 | TK-81PP9 | |
| Base plate 80x80 | Base plate 110x110 | |||
Example of how to use a post base with a separate top plate

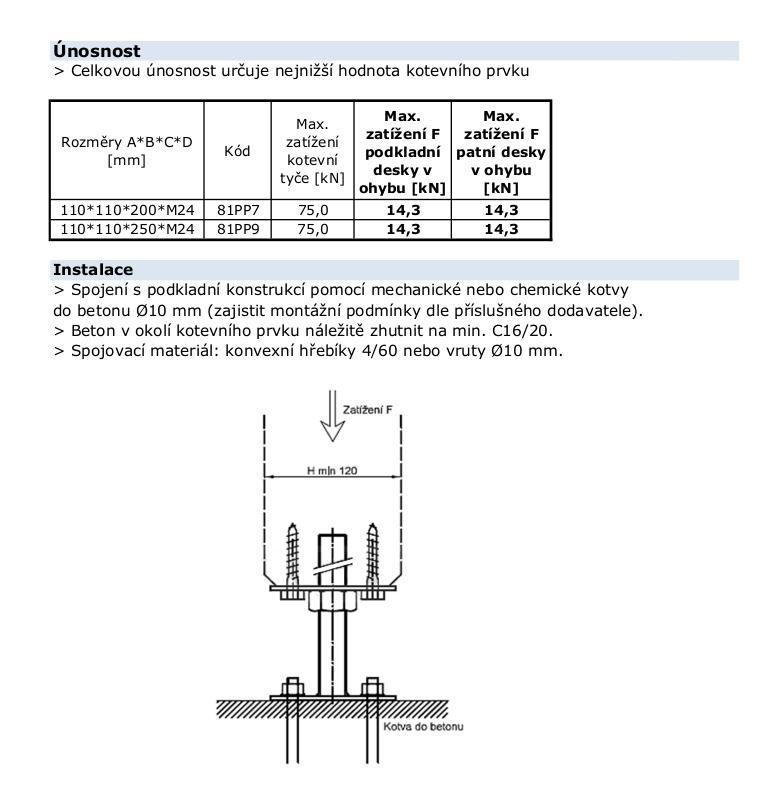

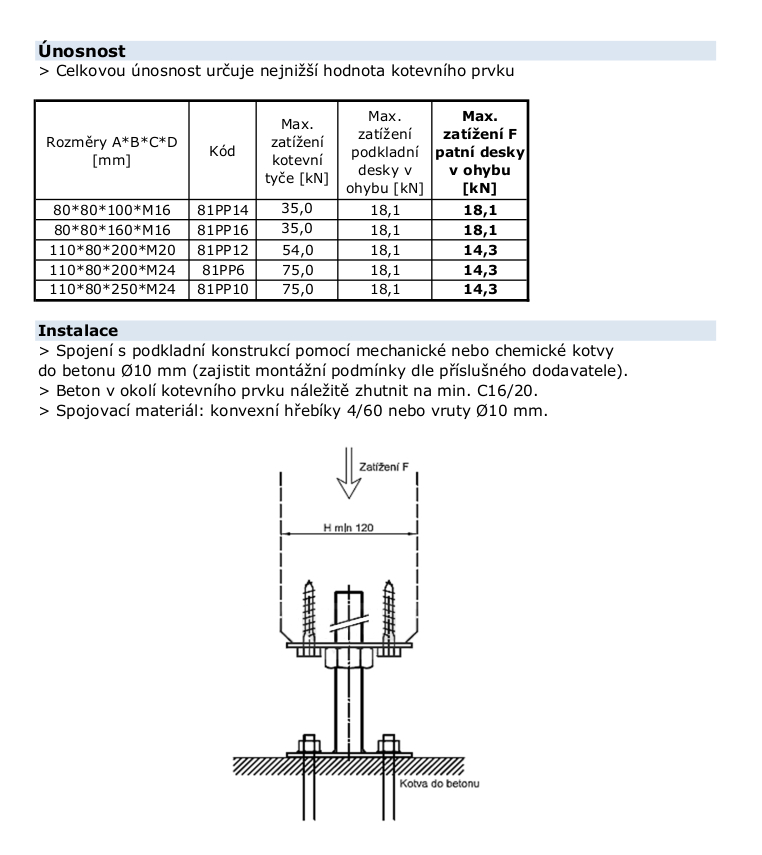

Load capacity of a post base with a separate top plate
The load capacity of the base is determined by the load capacity of the individual plates. The threaded rod has a considerably higher load capacity than the plates, so it does not affect the load capacity of the base.
Recommended fasteners: Convex nails 4x60 mm, or structural screws for the post. Use segment anchors in the substrate.
The anchor base is designed for anchoring timber posts and pillars to a horizontal load-bearing structure, with the timber element raised above it.

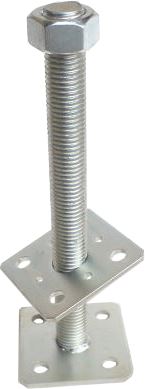

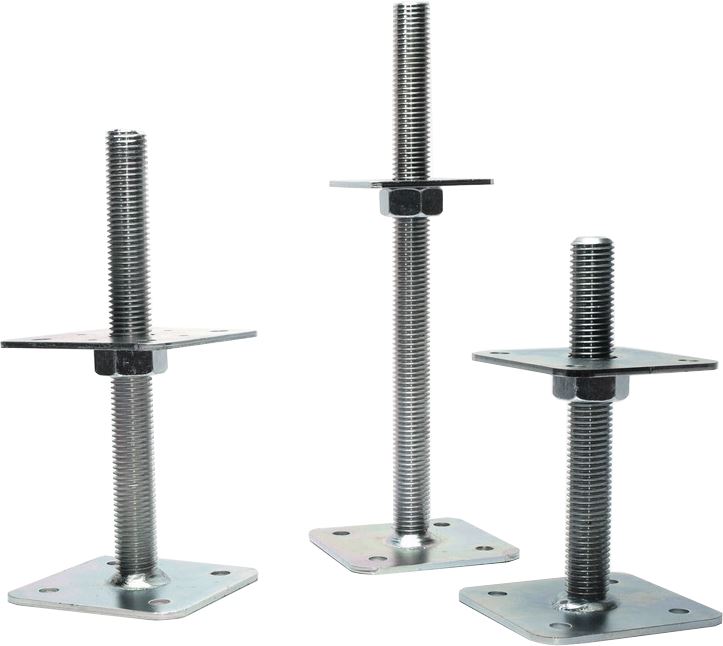

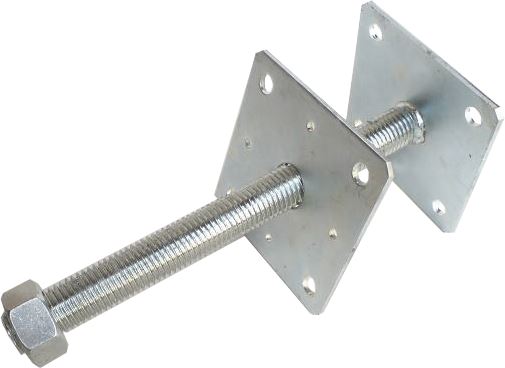

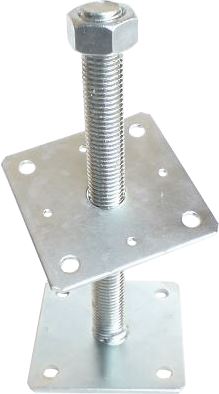

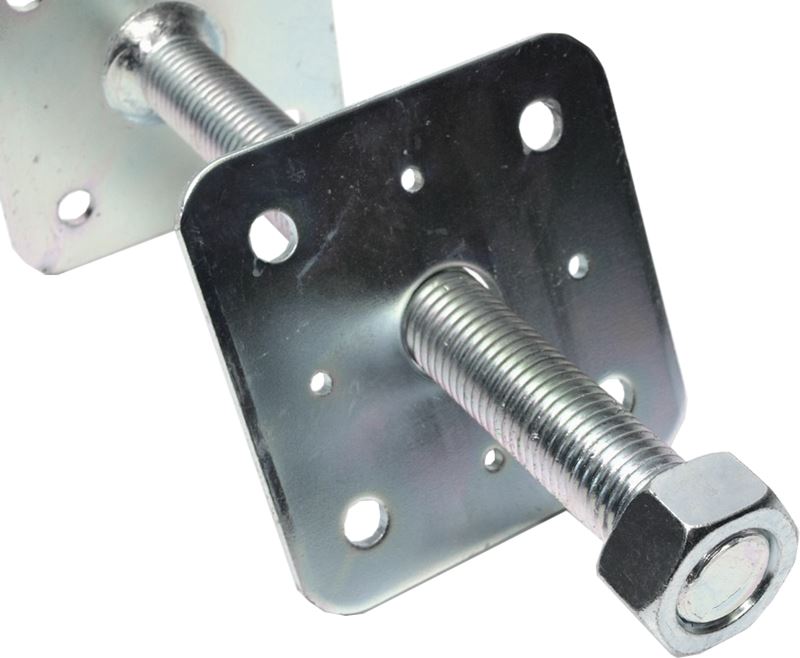

Photo gallery: post base with a separate top plate
 |
 |
 |
 |
 |
