L-shaped mounting foot, 60 mm, with rebar
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
TK-81PL4
in stock
in stock
€3.04 excluding VAT
€3.74 including VAT
€3.74 including VAT
| A [mm] |
B [mm] |
Ød [mm] |
Weight |
|---|---|---|---|
| 80 | 60 | 18 | 0,68 kg |
TK-81PL5
in stock
in stock
€3.29 excluding VAT
€4.05 including VAT
€4.05 including VAT
| A [mm] |
B [mm] |
Ød [mm] |
Weight |
|---|---|---|---|
| 100 | 60 | 18 | 0,71 kg |
TK-81PL6
in stock
in stock
€4.82 excluding VAT
€5.93 including VAT
€5.93 including VAT
| A [mm] |
B [mm] |
Ød [mm] |
Weight |
|---|---|---|---|
| 120 | 60 | 18 | 0,75 kg |

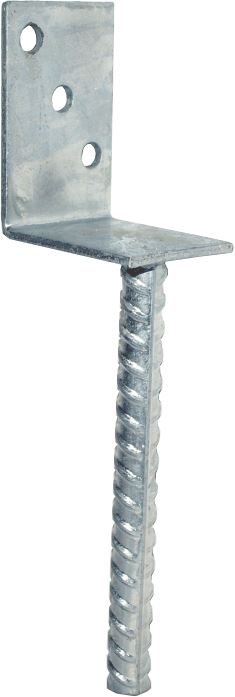

Description of L-shaped mounting foot, 60 mm, with rebar
Static welded anchor base with holes is used to anchor compression-loaded wooden posts or pillars to a base using chemical anchors, or by casting them into concrete.
Bolts with diameters of 10 and 12 mm are used to fasten the pillar. The diameter of the reinforcing bar used for anchoring is 18 mm.
The anchor base is hot-dip galvanized.

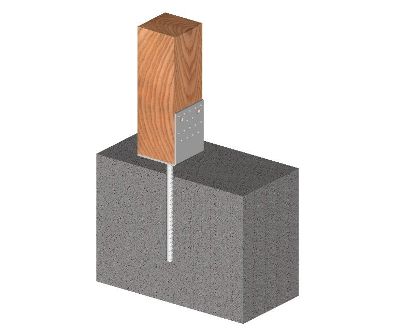

Example of using an L-shaped 60 mm anchor base with a reinforcing bar
Technical specifications of an L-shaped 60 mm anchor base with a reinforcing bar
| Material: | steel |
|---|---|
| Surface finish: | hot-dip galvanizing |
| Reinforcing bar: | 16 or 20 mm |
| Available dimensions: | width 60 thickness 80, 100, 120 |

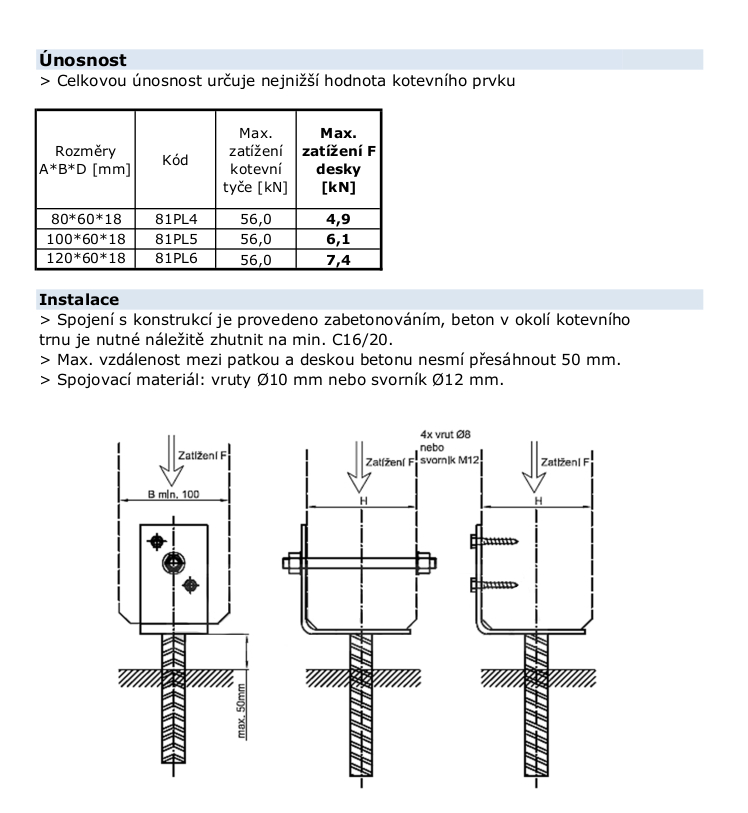

Load capacity and installation

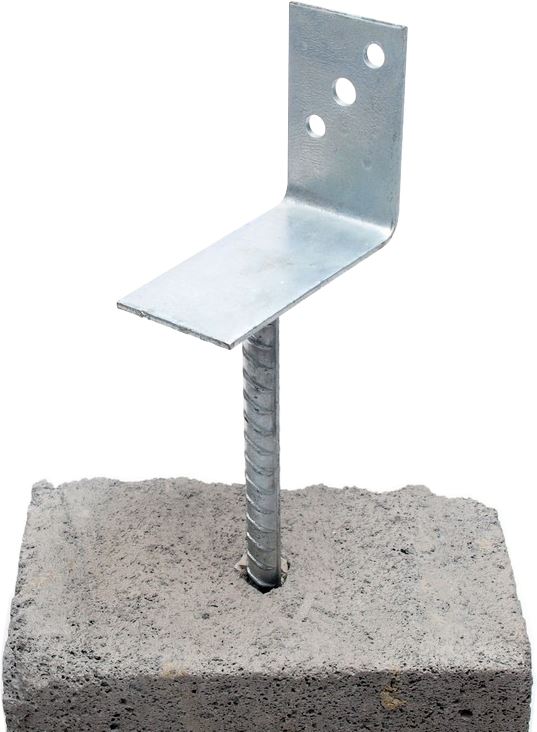

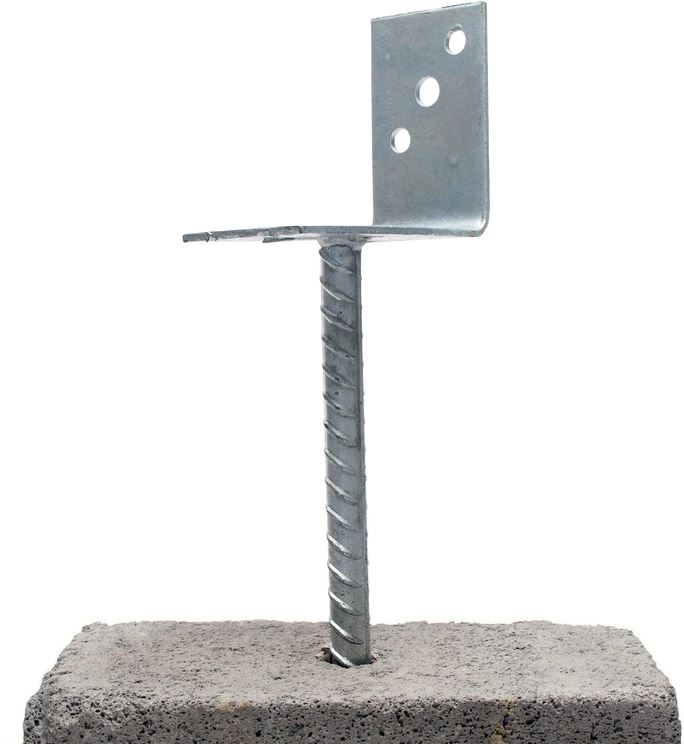

Photo gallery of the L-shaped 60 mm anchor base with a reinforcing bar
 |
 |
 |
