L-shaped anchor plate with rebar
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€5.84 including VAT
| A [mm] |
B [mm] |
Ød [mm] |
Weight |
|---|---|---|---|
| 80 | 80 | 16 | 0,85 kg |
in stock
€6.64 including VAT
| A [mm] |
B [mm] |
Ød [mm] |
Weight |
|---|---|---|---|
| 100 | 100 | 16 | 1,03 kg |
in stock
€8.28 including VAT
| A [mm] |
B [mm] |
Ød [mm] |
Weight |
|---|---|---|---|
| 120 | 120 | 20 | 1,45 kg |
Description of L-shaped anchor plate with rebar
Static welded anchor base with holes is suitable for anchoring compression-loaded wooden posts or pillars to a substrate using a chemical anchor, or by casting it into concrete.
Use 4 mm diameter convex nails or 12 mm diameter bolts as fasteners for attaching the pillar. The available diameters of the reinforcing bar are 16 and 20 mm.
The pillar base is hot-dip galvanized.

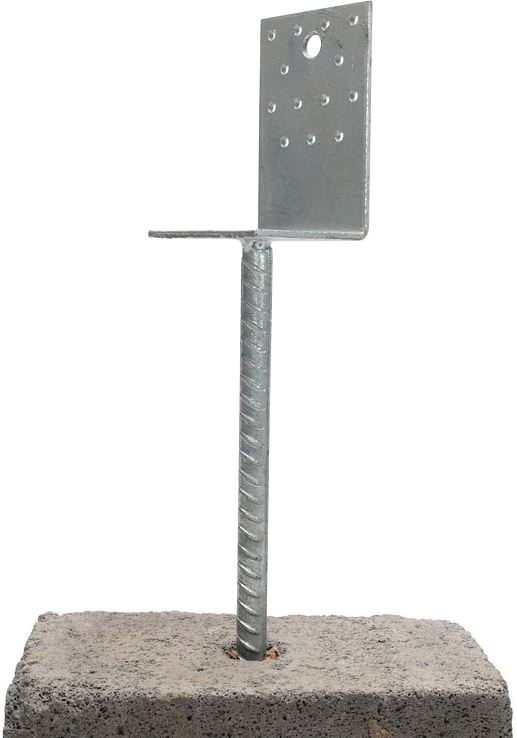

Example of using an L-shaped anchor base with reinforcing bar
Technical specifications of the L-shaped anchor base with reinforcing bar
| Material: | steel |
|---|---|
| Surface finish: | hot-dip galvanizing |
| Reinforcing bar: | 16 or 20 mm |
| Available sizes: | 80x80, 100x100, 120x120 |

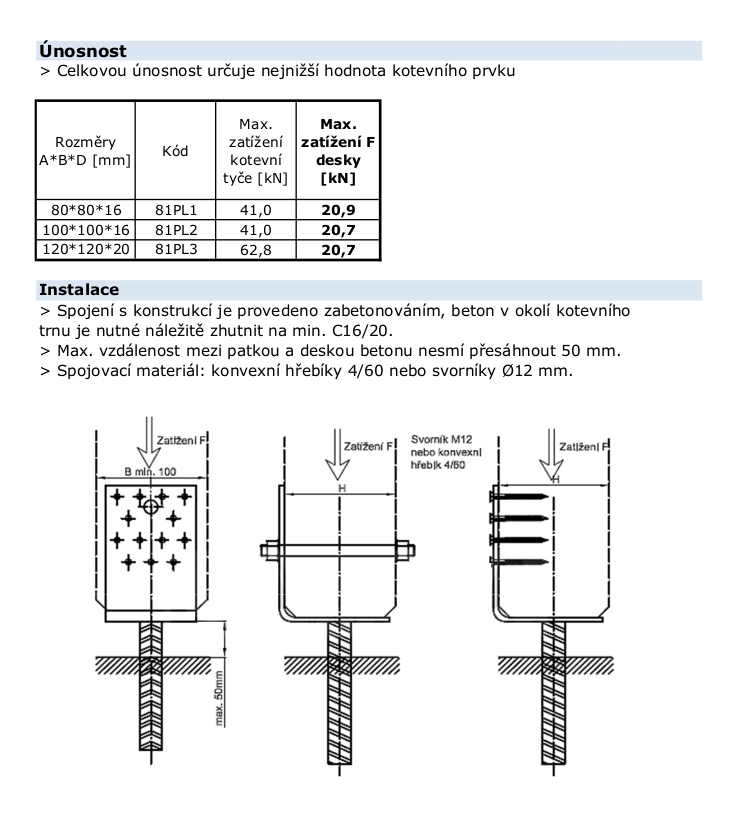

Load capacity of the L-shaped anchor base with reinforcing bar
The base is designed to withstand compressive or bending loads; its overall load capacity is determined by the lower load capacity of the anchoring components. A nail or bolt connection is a structural connection.
Recommended fasteners are convex nails 4x60mm, or 12 mm diameter bolts. Cast into the substrate or secure with a chemical anchor. The anchor base is designed for anchoring compression-loaded posts and pillars to a horizontal load-bearing structure.

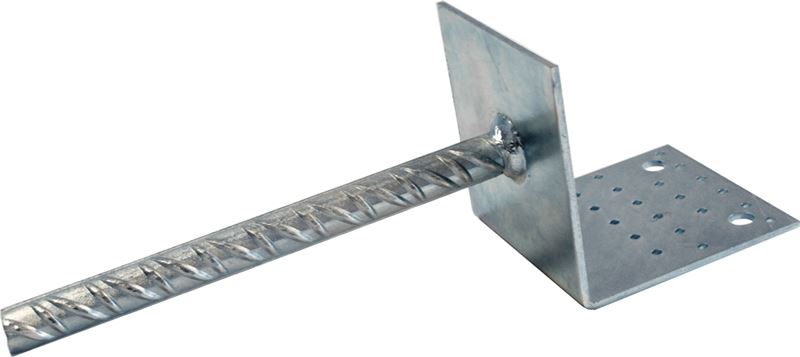

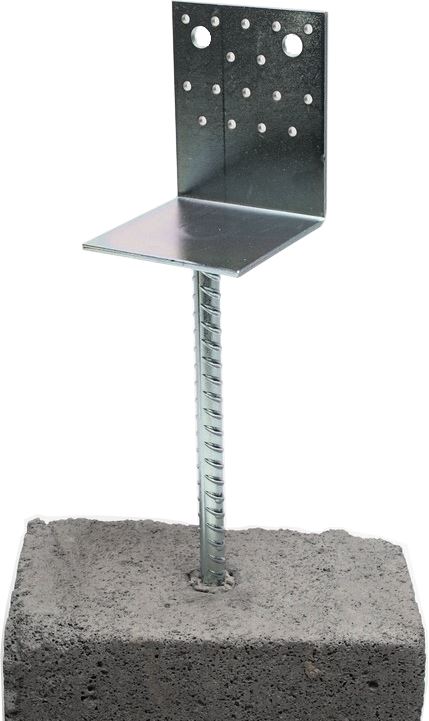

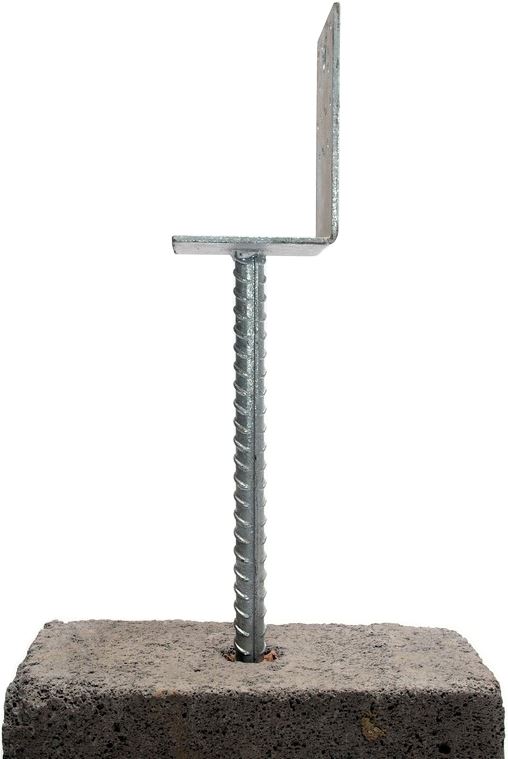

Photo gallery of the L-shaped anchor base with reinforcing bar
 |
 |
 |
 |
