Connecting the Zamel SBW-02 Wi-Fi module to the drive control unit
How to connect the WiFi module Zamel SBW-02 to the control unit:
- MCU1
- MCA2 (MC424 control unit)
- MCA2R10 (MC424R10 control unit)
- RBA3
- RBA3R10
- RBA4R10
- MCA5 (MC800 control unit)
- ROA40R10
- WIA20R10
- RUA1
- SPIDO600

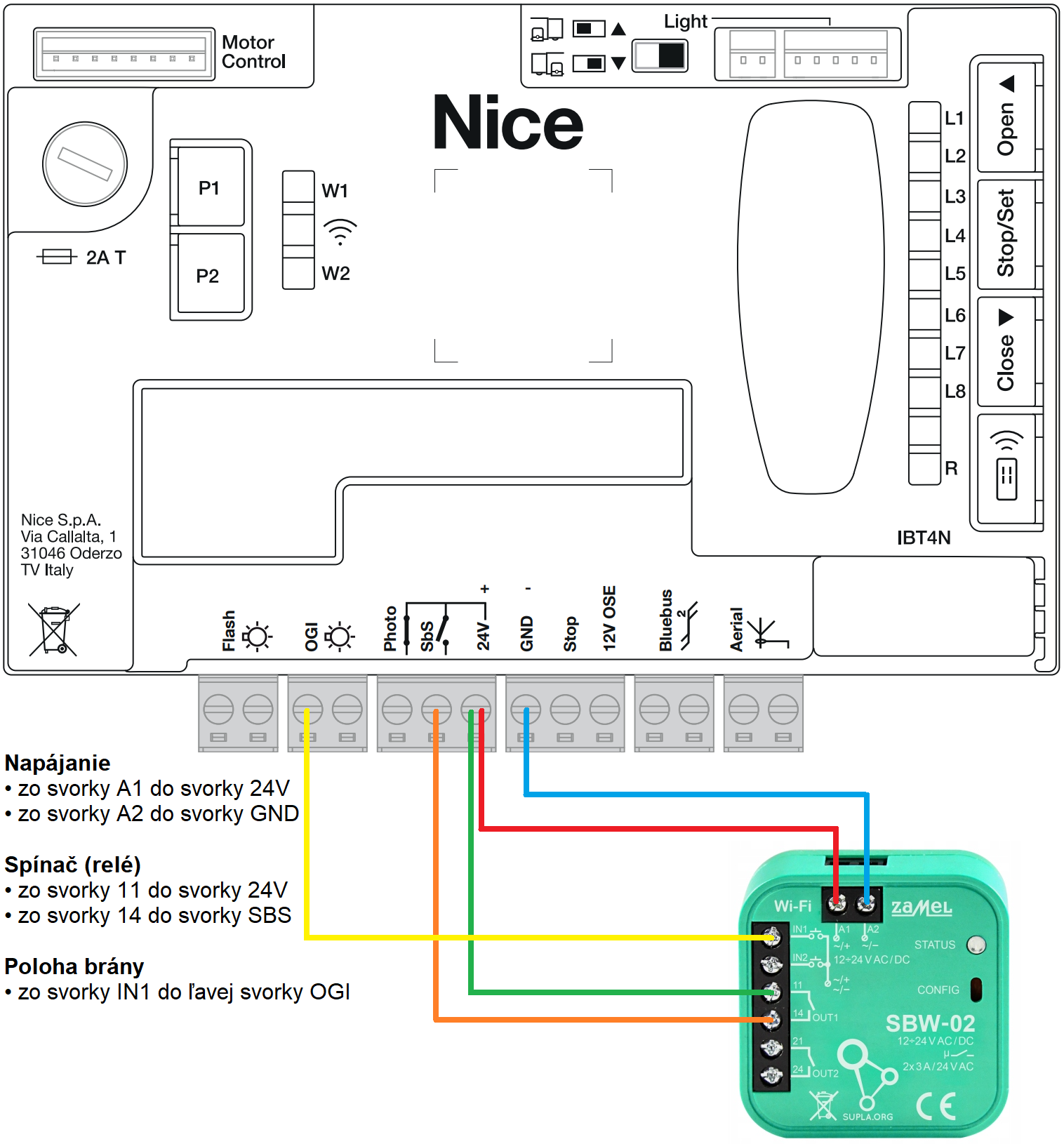

Connecting the WiFi module to the MCU1 control unit:

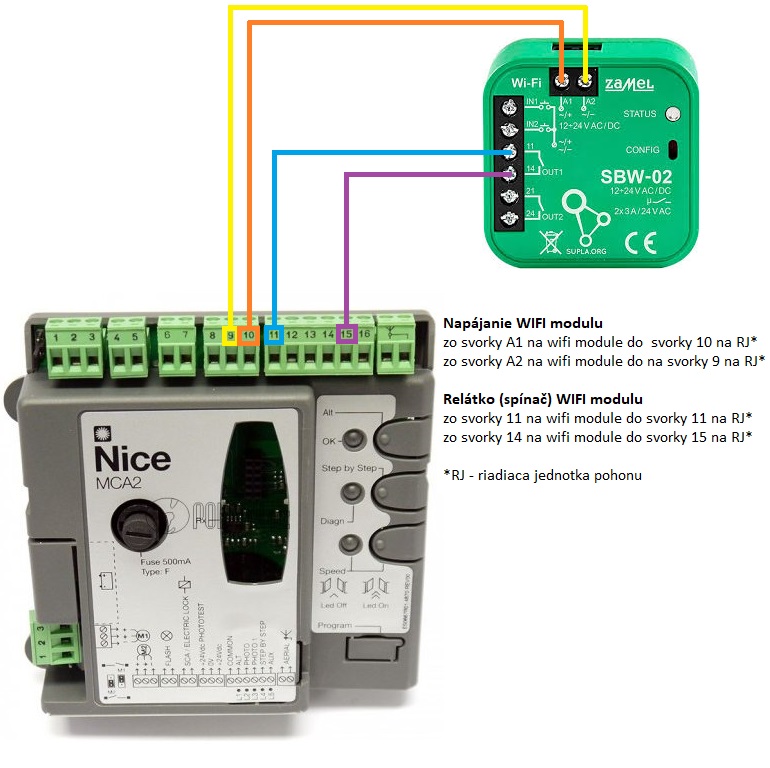

Connecting the WiFi module to the MCA2 control unit:

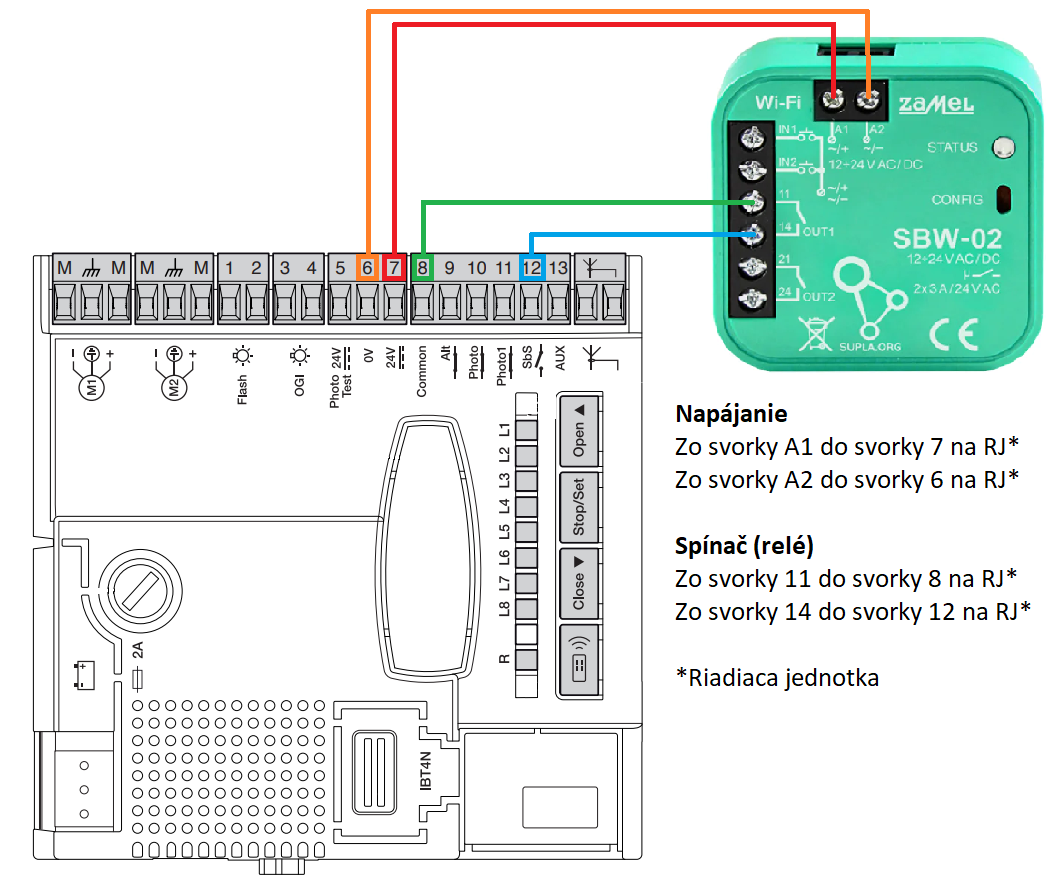

Connecting the WiFi module to the MCA2R10 control unit:

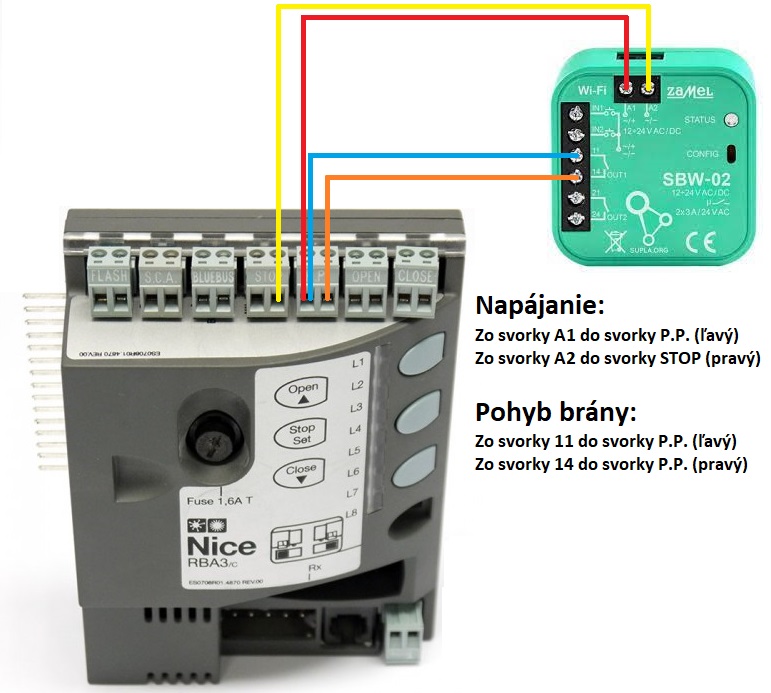

Connecting the WiFi module to the RBA3 control unit:
Connecting the WiFi module to the RBA3R10 control unit:

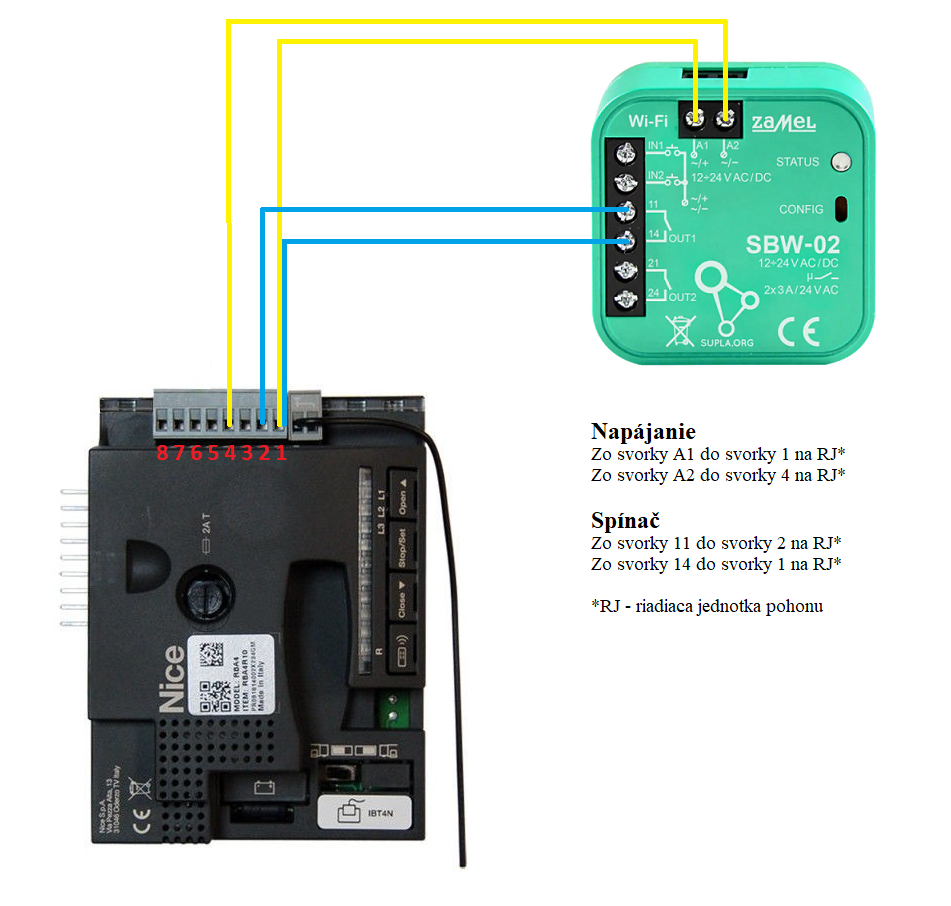

Connecting the WiFi module to the RBA4R10 control unit:

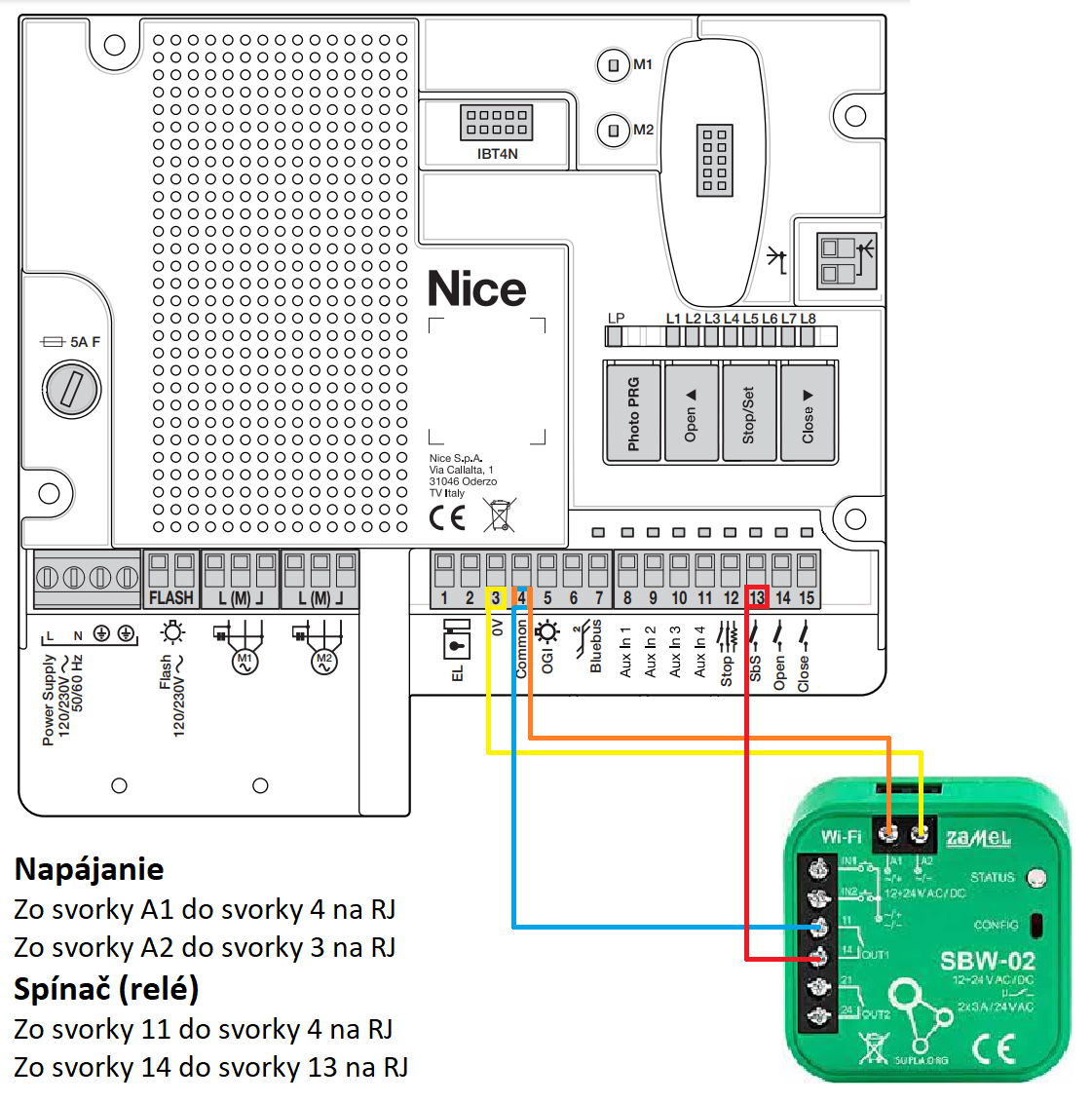

Connecting the WiFi module to the MCA5 control unit:

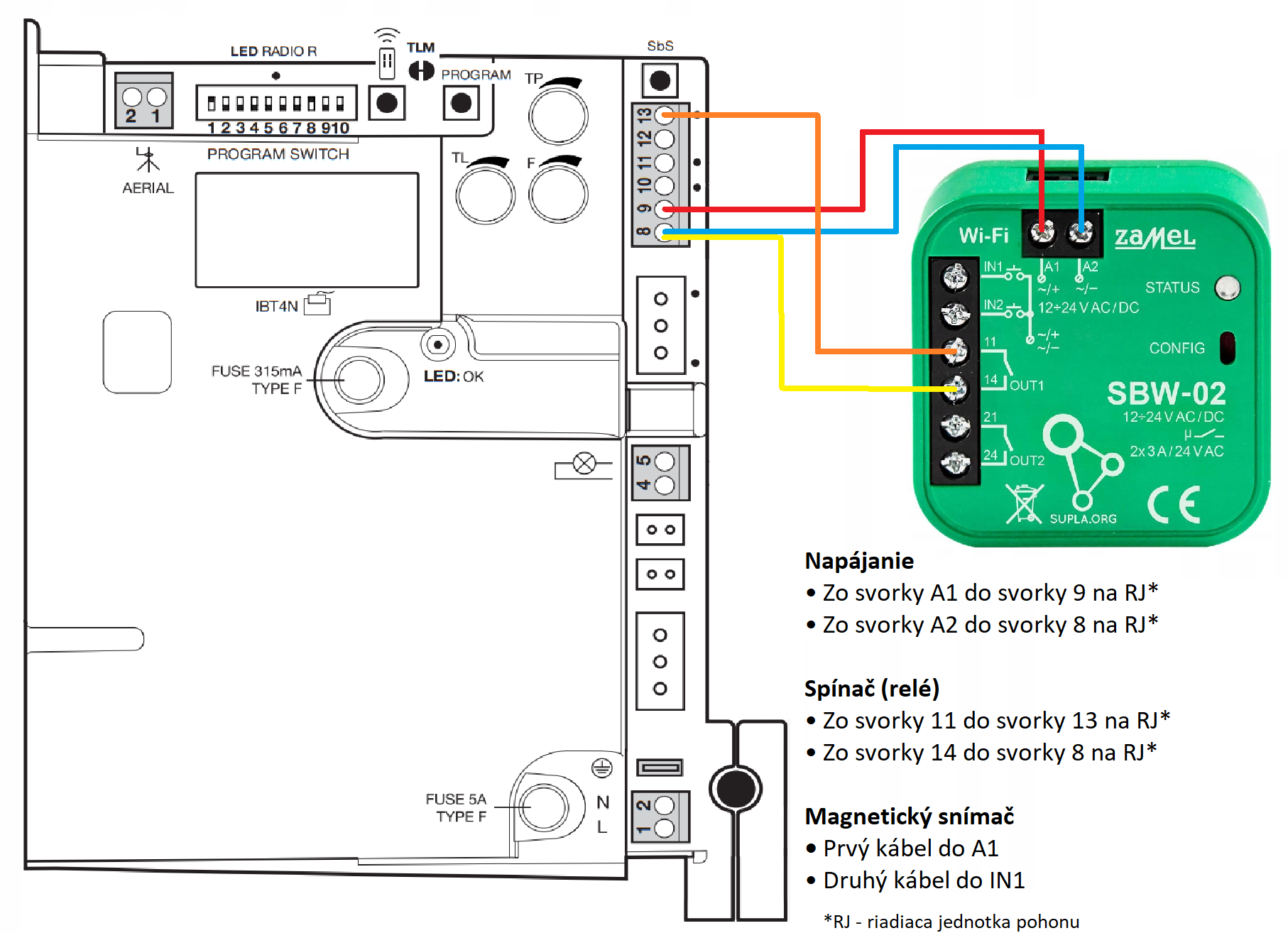

Connecting the WiFi module to the ROA40R10 control unit:

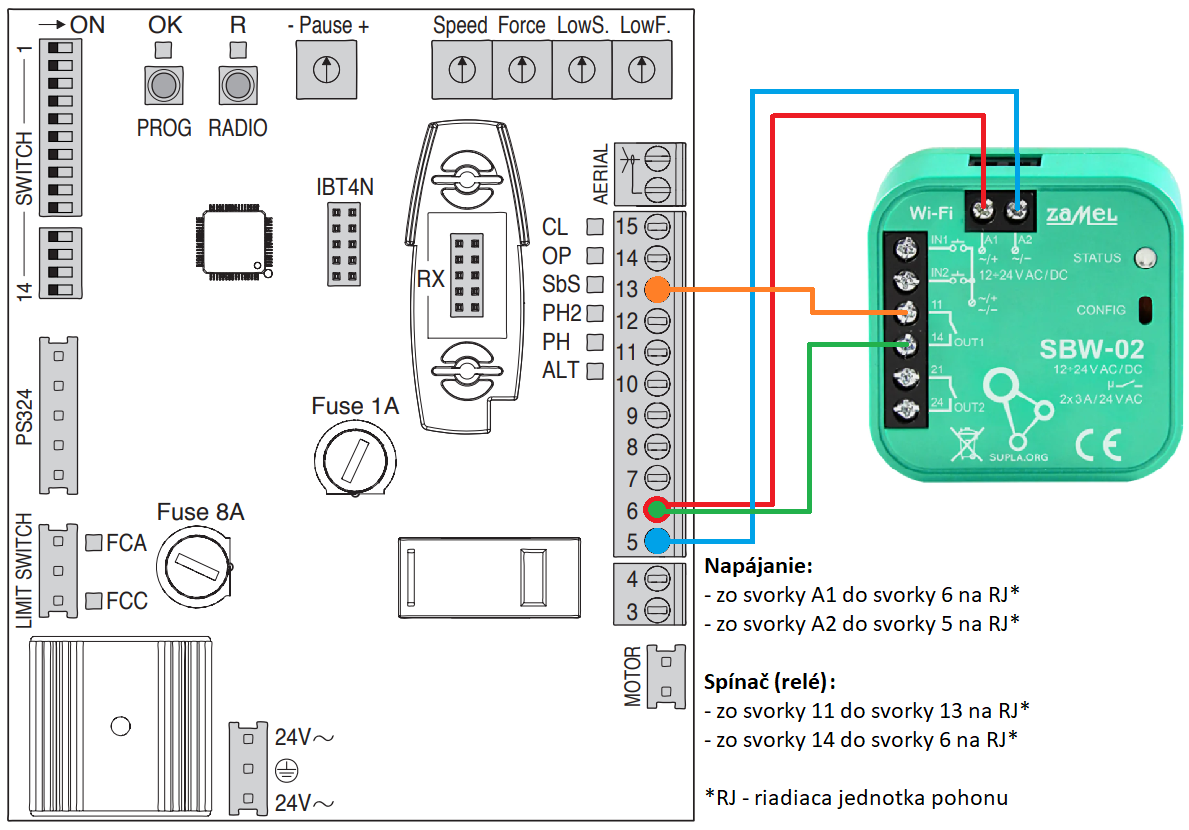

Connecting the WiFi module to the WIA20R10 control unit:

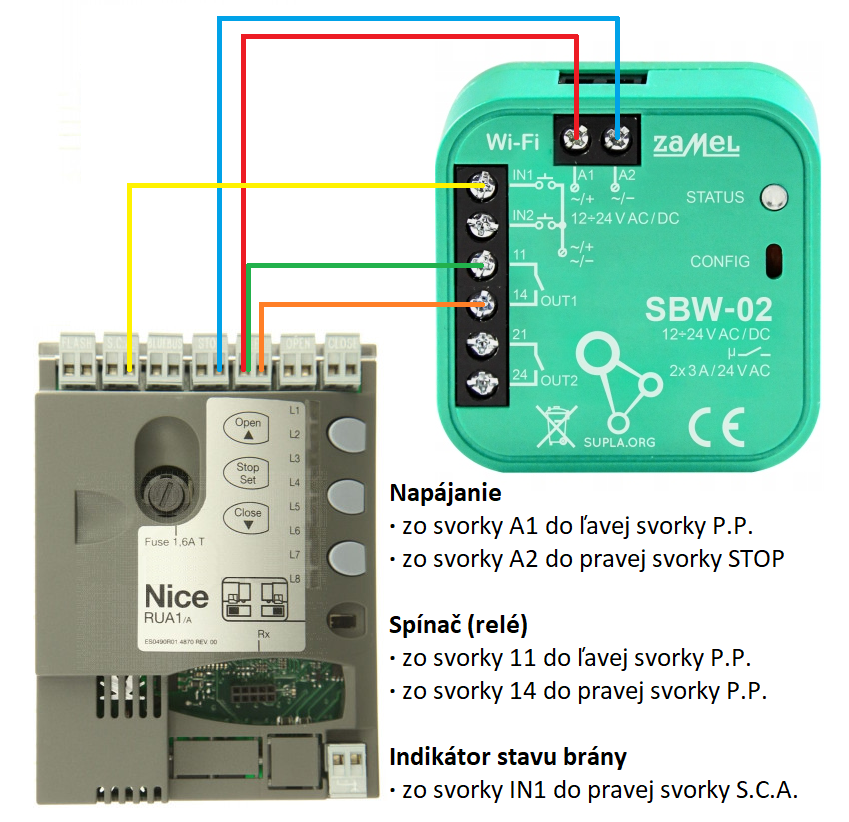

Connecting the WiFi module to the RUA1 control unit:

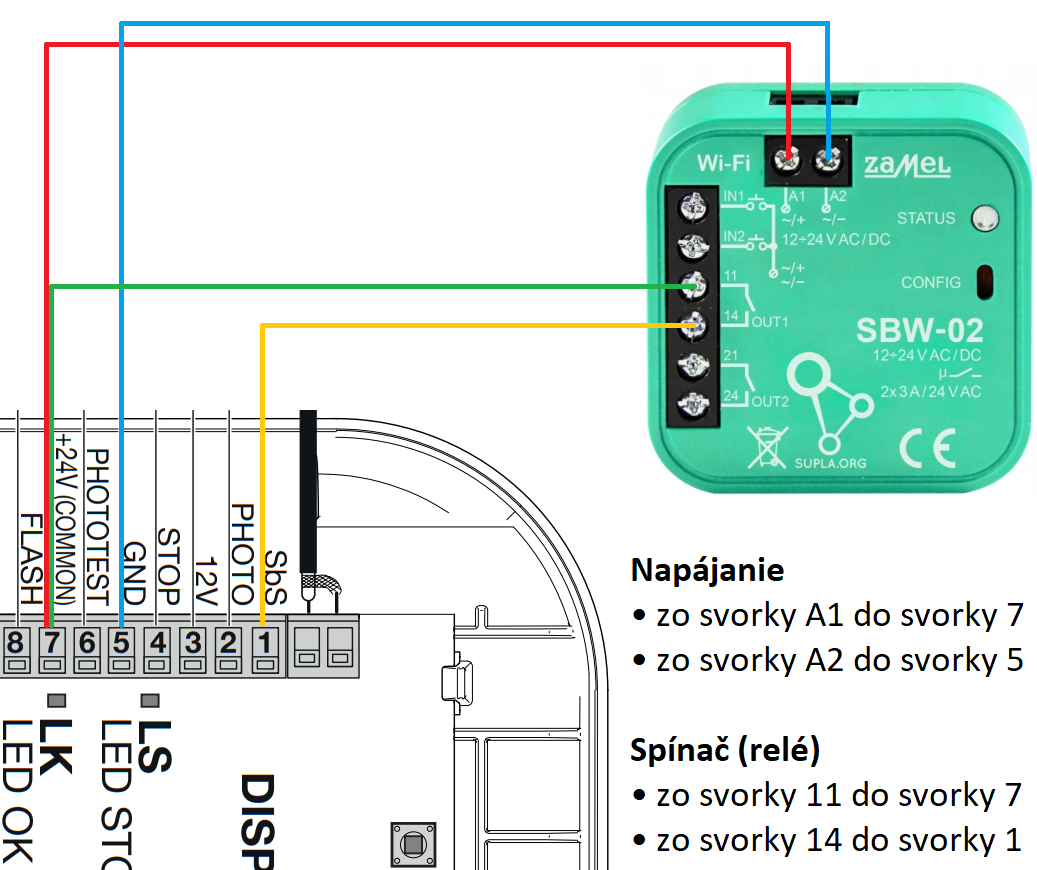

Connecting the WiFi module to the SPIDO600 control unit:
