Spare parts for NICE RD400

RD400

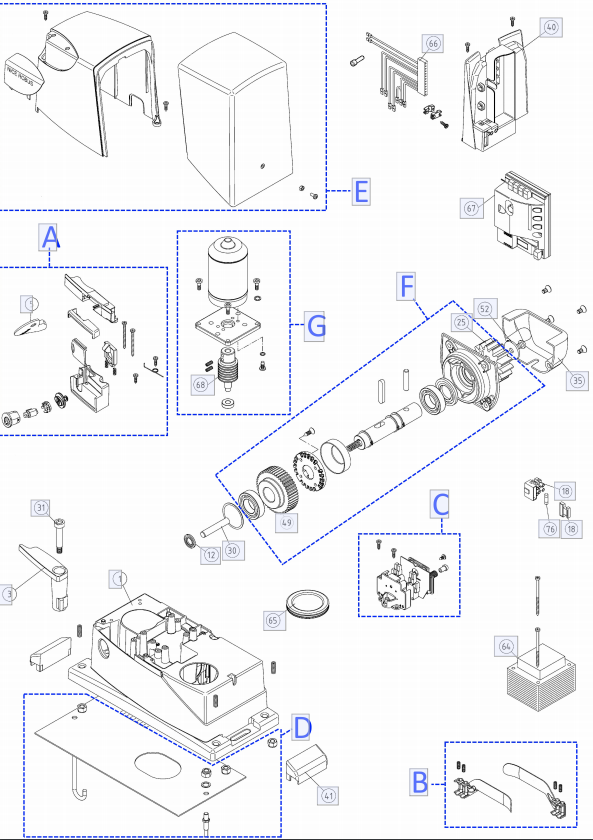

Label
in the diagram		 Spare part code Part description
A PRRB06 Release kit
B SPGAP10600 Rack end stops for the rack
C SPLSM00100 Spring limit switch
D PRRB04 Mounting plate

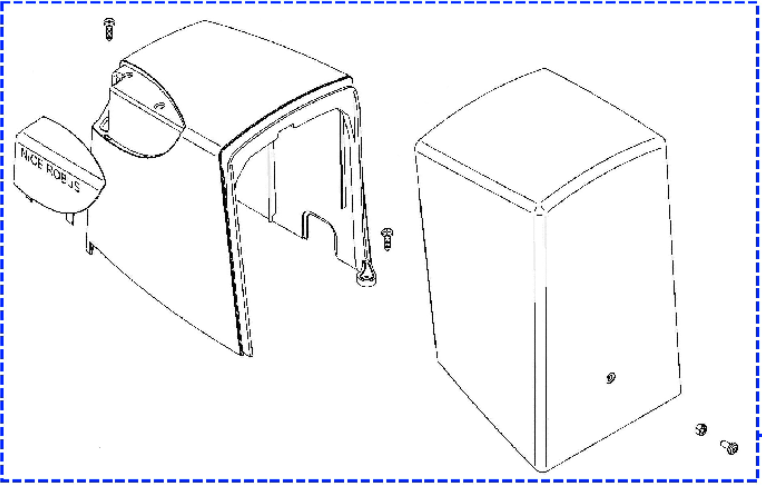

E PRRB03 Cover kit
F SPAMG00700 Gearbox kit
G SPMTG10801 Electric motor
H RBA4 Control unit
1 BMG0890R08.45673 Drive base
3 BMG0952.45673 Release lever
5 PPD0416A.4540 Triangular release key
12 GOR-L.5501 Sealing ring
18 PFM-B.2213 Power terminal block
25 PMD0177AR01.4610 Drive pinion
30 PMD1053R01.4610 Release pin
31 PMD1054.4610 Release pin screw
35 PD4048A0000 Gearbox guard
40 PPD0951R05.4540 Partition wall
41 PPD0953A.4540 Screw cover

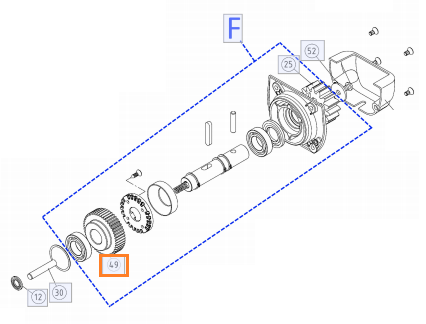

49 PPD1880R01.4540 Middle crown gear
52 R12C.5120 Washer
64 TRA110.1025 Transformer
65 PMCPM.4630 Cable gland
66 CA0313A00 Electric motor
68 PMD1501R04.4610 Thread-forming screw

RELEASE HANDLE     BMG0952.45673  --  RELEASE LEVER

PRRB06     PRRB06  --  PLASTIC RELEASE LOCK

spgap10600     SPGAP10600  --  MECHANICAL STOP KIT

SPLSM00100     SPLSM00100  --  MICROSWITCH KIT WITH BRACKET

PRRB03     PRRB03  --  COVER KIT

 GEAR    PMD0177A.4610  --  GEAR WHEEL

PPD1880.4540 -- GEARBOX WHEEL

GEARBOX KIT     SPAMG00700  --  GEARBOX KIT

TRANSFORMER     TRA110.1025  --  TRANSFORMER

CABLE GLAND     PMCPM.4630  --  RUBBER CABLE GLAND

RBA4     RBA4  --  CONTROL UNIT
