Suspended system for window screens and sliding patio doors
Suspended system consists of the following components:
- load-bearing - C-profile, suspension trolleys and C-profile brackets (mounts), and
- guide - guide rollers and stops.
Optionally, you can add locks to secure the suspended gate, or handles for easy operation.

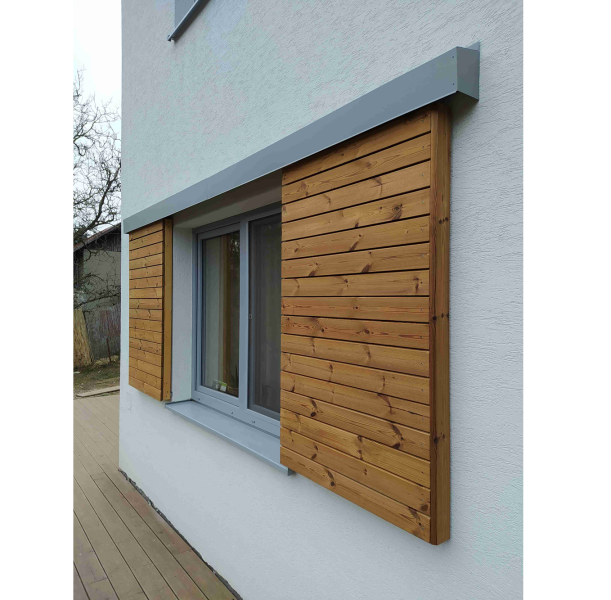

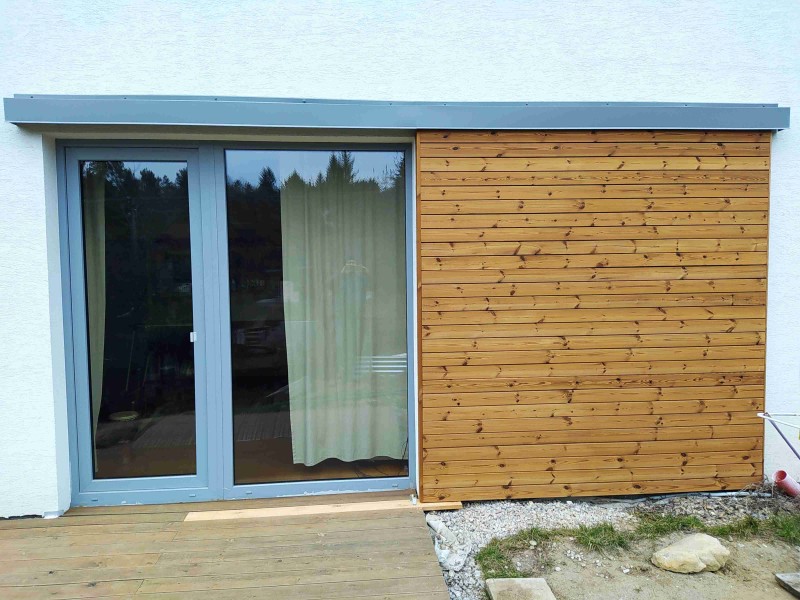

Our customer used this system for screens on windows and patio doors, made from thermowood pine. The suspended system is covered by a top trim. It allows the window screens and the patio door shading screen to slide smoothly.
List of components used from our range:
- ZB-DV1PM - Internal stop for suspended-gate C-profile 4 pcs
- ZB-CP42x52M-1 - C-profile for suspended gate 42×52×2.5 12 m
-
ZB-UB-2M - Side bracket for suspended-gate C-profile 42×52×2,5 16 pcs
- ZB-V4-2M-N - Suspended-gate trolley with 4 rollers and nylon wheels for 42×52×2,5 profile 6 pcs
-
ZB-PK-M - Bearing mounting flange for trolleys with M12 thread 6 pcs
We’d be happy to help you choose the right solution for your needs and advise you.. Contact us if you have any questions.
