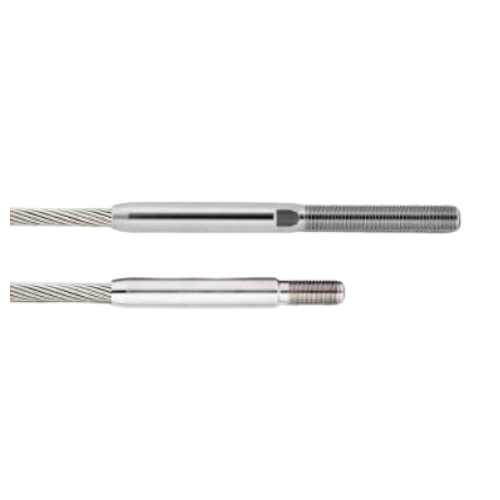

Threaded terminals for stainless steel cables
At the end of the stainless steel cable, threaded end fittings create a thread that attaches to the structure. In structures, they are combined with tensioner end fittings.
The cable is secured to the internal system by crimping or using adhesive. The length of the selected thread depends on the structure to which the stainless steel cable is attached, or rather on its thickness.
The threaded end fittings are made of brushed stainless steel and have an M6 external thread.
End fitting for Ø4mm stainless steel cable, adhesive/crimp type, brushed stainless steel, with 60mm threaded stud
For stainless steel cable with a diameter of 4 mm. The thread length is 60 mm.
€ excluding VAT 2,18 € including VAT 2,69within 3 days Details
End fitting for Ø5mm stainless steel cable, adhesive/crimp type, brushed stainless steel, with a 30mm thread
For stainless steel cable with a diameter of 5 mm. The thread length is 30 mm.
€ excluding VAT 2,48 € including VAT 3,05within 4 days Details
End fitting for Ø5mm stainless steel cable, adhesive/crimp-on, brushed stainless steel, with 60mm thread
For stainless steel cable with a diameter of 5 mm. The thread length is 60 mm.
€ excluding VAT 2,69 € including VAT 3,31within 3 days Details
End fitting for Ø6mm stainless steel cable, adhesive/crimp type, brushed stainless steel, with a 30mm thread
For stainless steel cable with a diameter of 6mm. The thread length is 30mm.
€ excluding VAT 2,90 € including VAT 3,57within 4 days Details
Mount for Ø4mm stainless steel cable, brushed stainless steel, with a 48mm thread
For stainless steel cable with a diameter of 4mm. The thread length is 48mm.
€ excluding VAT 10,32 € including VAT 12,70within 3 days Details
Mount for Ø3mm stainless steel cable, brushed stainless steel, with a 45mm thread
For stainless steel cable with a diameter of 3mm. The thread length is 45mm.
€ excluding VAT 9,92 € including VAT 12,20within 3 days Details

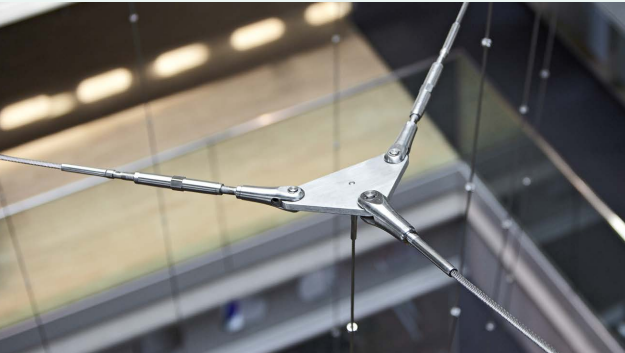

Example of using a threaded end fitting in combination with a tensioner end fitting:
Image source: Jakob
